  • 用于超声波测距和避障的压电陶瓷元件

    用于超声波距离测量的 ISSR 压电陶瓷

    用于超声波距离测量的 ISSR 压电陶瓷

    Features:

    用于超声波测距和避障的压电陶瓷元件

    • Compact Dimensions: Available in 8.00.3 mm and 6.00.5 mm sizes, perfect for integration into small devices
    • High Frequency Performance: Operates effectively at 250 kHz ± 2% and 330 kHz ± 2% for fast and accurate distance measurements
    • Enhanced Sensitivity: Dynamic capacitance of 2200 pF ± 15% and 700 pF ± 15%, allowing for precise obstacle detection at short ranges
    • Superior Responsiveness: Voltage coefficient (d33) greater than 450 × 10^-12 C/N ensures high sensitivity in varied measurement conditions
    • Robust Stability: Mechanical quality factor (Kp) > 0.60 and a quality factor (Qm) of 75 promote reliability and efficiency in demanding environments
    • Temperature Tolerance: Operational temperatures below 150°C and stable performance up to 300°C make it suitable for diverse industrial applications

    Downloads Manual:

  • 用于超声波美容设备的压电陶瓷元件

    用于超声波美容设备的 ISSR 压电陶瓷

    用于超声波美容设备的 ISSR 压电陶瓷

    Features:

    用于超声波美容设备的压电陶瓷元件

    • Compact Size Options: Available in dimensions of 12.02.0 mm, 20.02.0 mm, and 25.0*2.0 mm, these piezoelectric ceramics are designed to fit seamlessly into various ultrasonic beauty devices like skin scrubbing tools
    • Wide Frequency Range: Operating at frequencies of 1000 kHz ± 2% and 3000 kHz ± 2%, these components produce effective ultrasonic waves that enhance deep cleansing and skincare treatment performance
    • High Electromechanical Coupling Factor: With a coupling factor (Kp) greater than 0.60, the ceramics ensure efficient energy conversion, leading to improved effectiveness in applications such as exfoliation and skin rejuvenation
    • Durable Construction: Robust materials and design contribute to longevity and reliability, making the components suitable for regular use in both professional and home beauty settings
    • Versatile Applications: Ideal for a range of beauty treatments, these piezoelectric ceramics can be integrated into various devices, enhancing their functionality in promoting healthier and clearer skin

    Downloads Manual:

  • 用于超声波水表的压电陶瓷元件

    ISSR 超声波水表用高精度压电陶瓷

    ISSR 超声波水表用高精度压电陶瓷

    Features:

    Piezoelectric ceramic elements plates for ultrasonic water meters

    • Dimension Options: Available in sizes of 10.0mm x 21mm and 16.0mm x 20mm, allowing for flexible integration in various water meter designs
    • High Resonant Frequency: Operating frequencies of 990 kHz and 1000 kHz enable precise and rapid flow measurement, enhancing overall accuracy
    • Static Capacitance: With values of 500 pF and 650 pF, these ceramics ensure consistent performance and sensitivity in dynamic flow conditions
    • Durability: The materials are designed to withstand extreme operating temperatures below 150°C and a Curie temperature of 300°C, ensuring reliable operation in various environments
    • Performance Efficiency: The high electromechanical coupling coefficient improves energy efficiency, leading to reduced power consumption in ultrasonic water meter applications

    Downloads Manual:

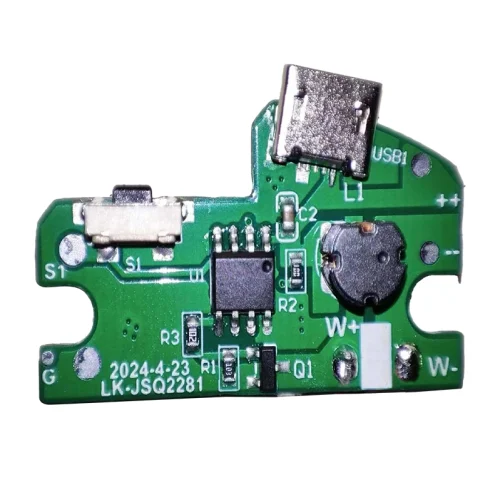

  • 加湿器压电陶瓷雾化板驱动器电路板-1

    ISSR 用于加湿器的定制压电陶瓷雾化板驱动器电路板

    ISSR 用于加湿器的定制压电陶瓷雾化板驱动器电路板

    Features:

    Customized Humidifier Piezoelectric Ceramic Atomizing Plate Driver Circuit Board

    • Supports customized functions and parameters
    • Compatible with various atomizing plate specifications
    • Provides stable and efficient atomization output
    • Enables synchronized control of lighting and spray

    Downloads Manual:

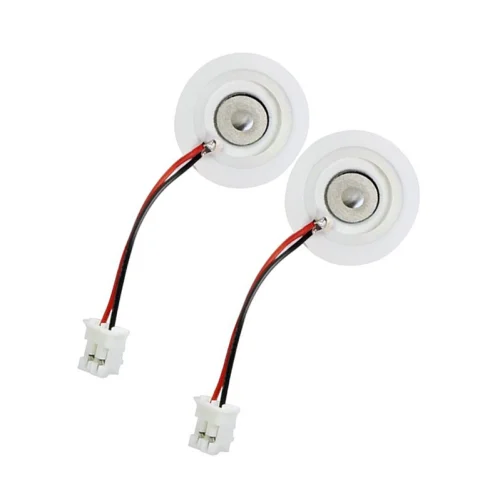

  • 高频加湿器微孔雾化板-1

    ISSR 高频加湿器微孔雾化板

    ISSR 高频加湿器微孔雾化板

    Features:

    High-Frequency Humidifier Dedicated Microporous Piezoelectric Ceramic Atomizing Plate Element

    • Ultra-fine atomization performance: Customizable micropore diameter (1–20μm), fine and uniform mist particles, large atomization volume and rapid diffusion
    • Excellent process consistency: Utilizing automated laser or precision drilling processes, the pore size distribution is uniform, and the mist volume tolerance is controlled within ±20%
    • High corrosion resistance and insulation protection: Reinforced solder joints and adhesive-coated insulation design provide strong corrosion resistance and ensure long-term stable operation
    • High-frequency drive efficiency: Wide resonant frequency range (100–230KHz), electromechanical coupling coefficient ≥60%, sensitive response and low energy consumption
    • Multiple specifications available: Available in multiple sizes from Φ8mm to Φ20mm; pore diameter, number of pores, and atomization volume can be customized according to application scenarios
    • Damp-free desktop design: High atomization height, fine and suspended mist, preventing condensation and keeping the surrounding environment dry

    Downloads Manual:

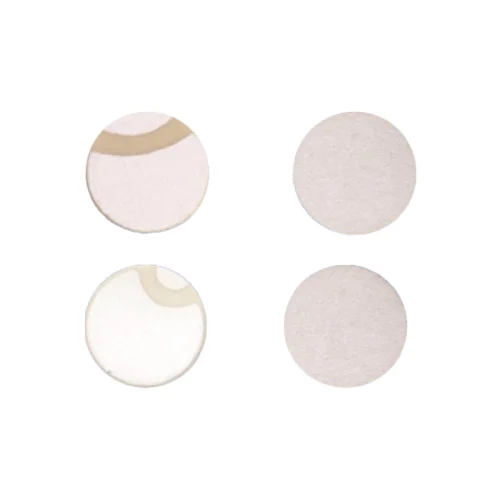

  • 用于超声波风速计和风向标的压电陶瓷元件 1

    用于超声波风速计和风向标的 ISSR 压电陶瓷元件

    用于超声波风速计和风向标的 ISSR 压电陶瓷元件

    Features:

    High-Performance Piezoelectric Ceramic Plates for Ultrasonic Anemometers

    • High Sensitivity: Piezoelectric constant D₃₃ > 450 (1e⁻¹² C/N), rapid signal response
    • Stable Frequency: Resonant frequency accuracy ±2%, strong consistency in acoustic output
    • Superior Energy Coupling: Electromechanical coupling coefficient Kp > 0.60, improving conversion efficiency
    • Reliable Mechanical Performance: Qm=75, adaptable to various environmental vibration conditions
    • High Temperature Resistance: Curie temperature up to 300°C, operating temperature < 150°C, long-term stability
    • Customization Available: Multiple sizes and specifications available to meet different structural and sensitivity requirements

    Downloads Manual:
