ISUB1000-18GM75

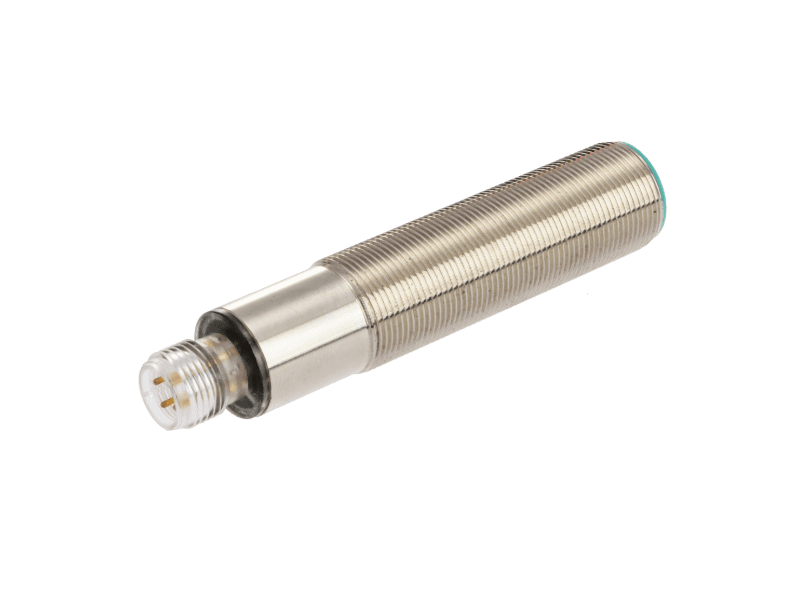

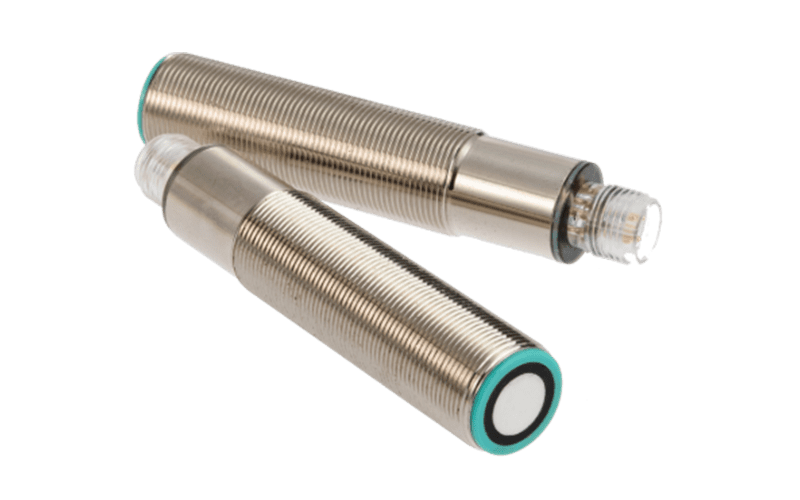

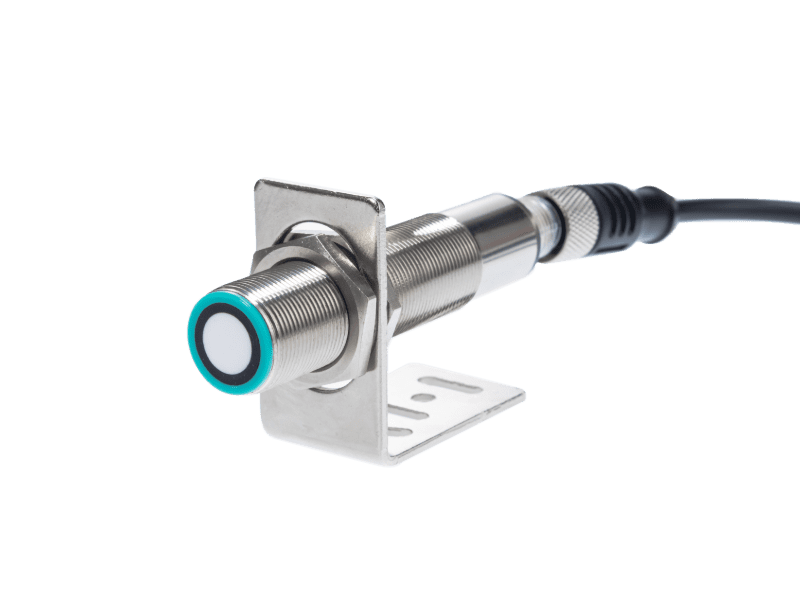

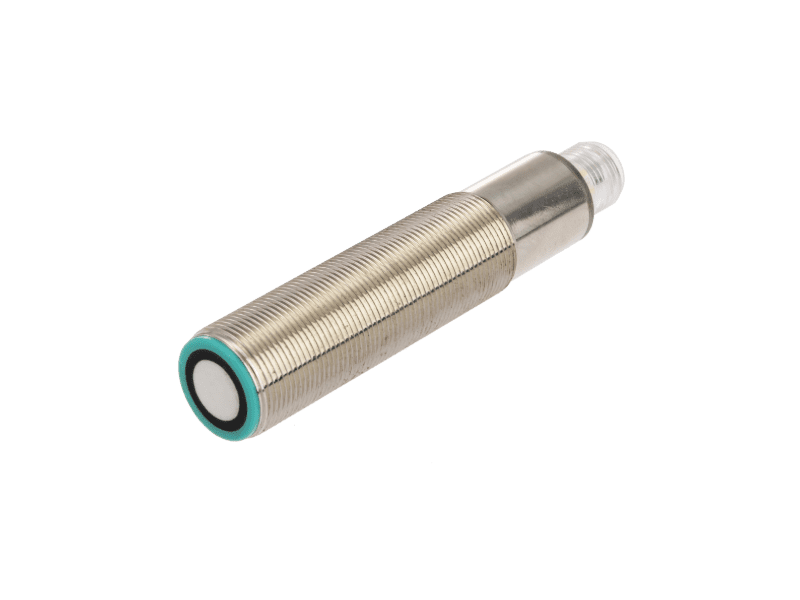

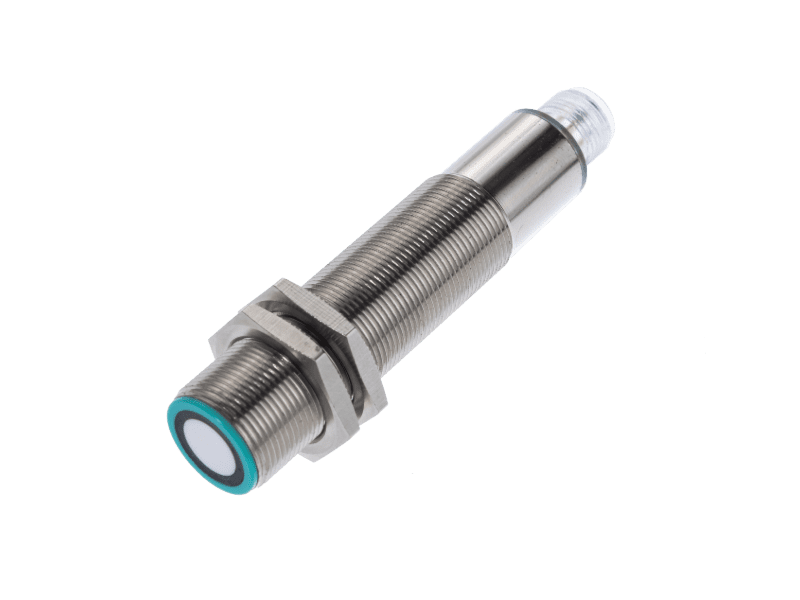

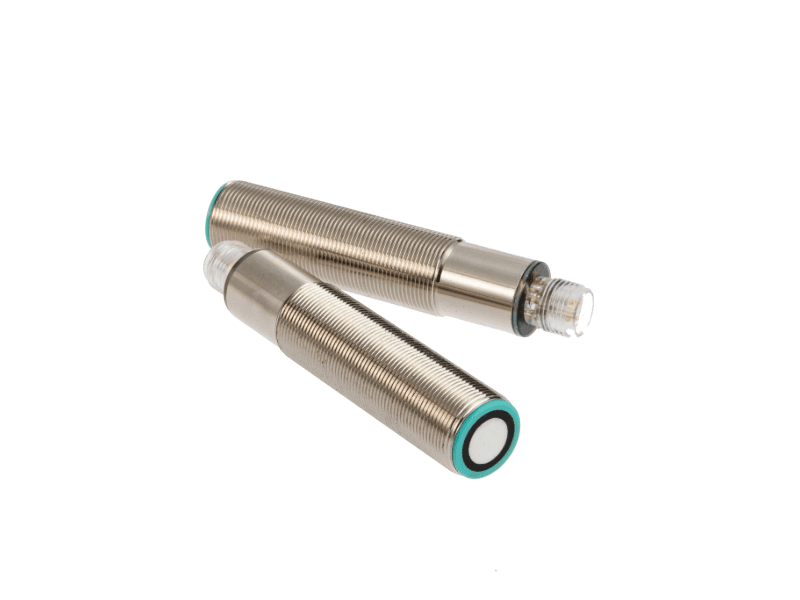

ISSR All-in-One Ultrasonic Sensor: 1M Range Level & Object Detect

M18 ultrasonic sensor, ultrasonic ranging sensor, transparent bottle detection, liquid level sensor, industrial automation, beverage filling line sensor, 200kHz ultrasonic transducer, analog ultrasonic sensor, object presence detection

Mehr andere Produkte anzeigen

Redefining sensor versatility, the ISUB1000-18GM75 is a fully integrated, 1-meter ultrasonic sensor operating at 200kHz. It distinguishes itself from fixed-function alternatives by offering field-configurable outputs.
Using a standard serial interface tool, the sensor's firmware can be updated to toggle between Switching, Digital, and Analog output modes, complete with A1/A2 distance learning for custom sensing ranges. This "Single Hardware, Multi-Mode" design streamlines inventory management and facilitates rapid replacement.
Robustly built for industrial demands, the sensor delivers consistent performance regardless of target material—ignoring color, transparency, and surface reflections. With a 1000 mm range and immunity to dust, it provides a universal solution for diverse applications, including terminal position detection and continuous level measurement.

Spezifikation

Modell	ISUB1000-18GM75-I-V1 ISUB1000-18GM75-U5-V1 ISUB1000-18GM75-U10-V1	ISUB1000-18GM75-E4-V1 ISUB1000-18GM75-E5-V1 ISUB1000-18GM75-E8-V1 ISUB1000-18GM75-E9-V1	ISUB1000-18GM75-TTL-V1
Detection Range	60...1000 mm	60...1000 mm	60...1000 mm
Adjustment Range	70...1000 mm	70...1000 mm	70...1000 mm
Blind Zone	60 mm	60 mm	60 mm
Standard Target Plate	100 mm × 100 mm	100 mm × 100 mm	100 mm × 100 mm
Beam Angle	±7°	±7°	±7°
Transducer Frequency	Approx. 200 kHz	Approx. 200 kHz	Approx. 200 kHz
Response Delay	≤100 ms	≤100 ms	≤100 ms
Betriebsspannung	I: 12...30 V DC U5: 9...30 V DC U10: 15...30 V DC	9...30 V DC	5...30 V DC
No-load Current	≤30 mA	≤30 mA	≤30 mA
Output Type	I: 4-20 mA U5: 0-5 V U10: 0-10 V	E4: NPN E5: PNP E8: NPN Hysteresis E9: PNP Hysteresis	TTL232 Interface
Resolution	0.5 mm	0.5 mm	0.5 mm
Linearity	±1% F.S.	±1% F.S.	±1% F.S.
Repeat Accuracy	±1% F.S.	±1% F.S.	±1% F.S.
Rated Operating Current	-	200 mA (Short-circuit protection)	-
Load Impedance	U5/U10: ≥1 kΩ I: ≤300 Ω	-	-
Hysteresis Range	-	E4/E5: 1% of set distance	-
Temperature Drift	±2% F.S.	±2% F.S.	±2% F.S.
Betriebstemperatur	-25...+70 °C	-25...+70 °C	-25...+70 °C
Storage Temperature	-40...+85 °C	-40...+85 °C	-40...+85 °C
EMC Standard	GB/T17626.2-2006 GB/T17626.4-2008	GB/T17626.2-2006 GB/T17626.4-2008	GB/T17626.2-2006 GB/T17626.4-2008
Protection Degree	IP67	IP67	IP67
Connection Type	V1 Connector (M12×1), 4-pin	V1 Connector (M12×1), 4-pin	V1 Connector (M12×1), 4-pin

Electrical Connection / Overall Dimensions / Response Characteristic Curve

Typische Anwendungen

In high-speed beverage filling lines, ensuring correct bottle positioning before the mechanical arm engages is critical, yet traditional optical sensors often fail due to the transparency of glass or PET bottles and the reflectivity of wet surfaces. The ISUB1000 1-meter 200kHz Fully Integrated Ultrasonic Sensor overcomes these limitations by utilizing sound waves instead of light, making it completely impervious to optical properties. Whether the target is clear glass, colored plastic, or covered in condensation, the sensor provides reliable detection within tight bottle channels thanks to its compact M18 housing. By utilizing the Switching Output mode, the ISUB1000 sends an immediate, precise signal to the controller once the bottle enters the defined window, ensuring safe, synchronized, and jam-free automation.
