Filtre
9 résultats affichésTrié du plus récent au plus ancien

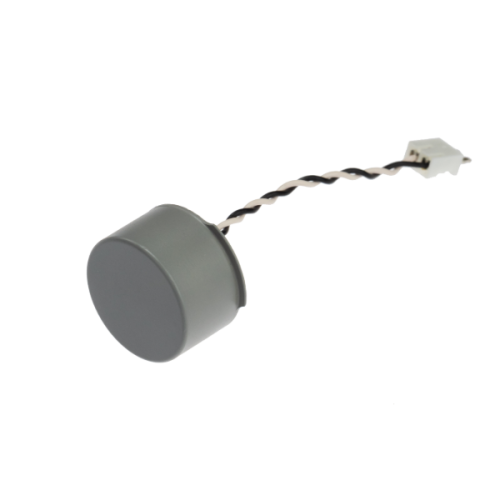

ISSR 48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance – Waterproof Design
ISU48-15.5TRAJ
ISSR 48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance - Waterproof Design
Features:
48kHz transceiver integrated low-frequency ultrasonic ranging and reversing collision avoidance sensor core transducer
- Integrated Design: Transmitter and receiver in one unit
- High Sensitivity: Capable of detecting obstacles with a strong signal-to-noise ratio
- Wide Frequency Band: Operates efficiently at 48kHz
- Robust Construction: Waterproof and durable for various environments
- Lightweight and Compact: Easy to integrate into vehicles without added bulk

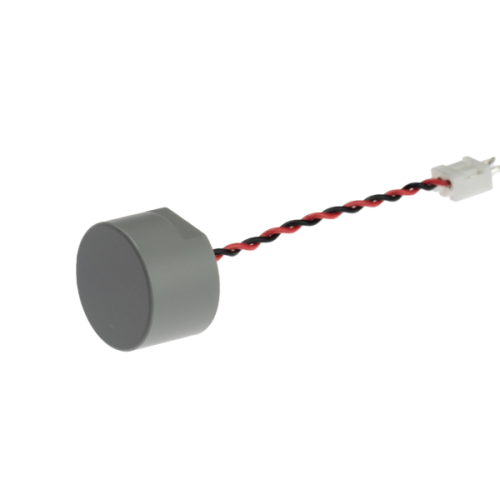

ISSR 55.5kHz Waterproof Ultrasonic Transducer for Automotive Reversing Radar Systems
ISU55.5-15.5TRAJ
ISSR 55.5kHz Waterproof Ultrasonic Transducer for Automotive Reversing Radar Systems
Features:
55.5kHz Transceiver Integrated Waterproof Low-Frequency Ultrasonic Sensor for Reversing Radar Ranging Probe Transducer
- Waterproof Design: Completely sealed for durability in all weather conditions
- Integrated Transceiver: Combines transmitter and receiver in one unit for efficient operation
- High Sensitivity and Wide Bandwidth: Optimized for precise measurements, reducing false readings
- Good Signal-to-Noise Ratio: Ensures clear and reliable performance even in noisy environments
- Lightweight and Compact: Designed for easy installation in automotive applications

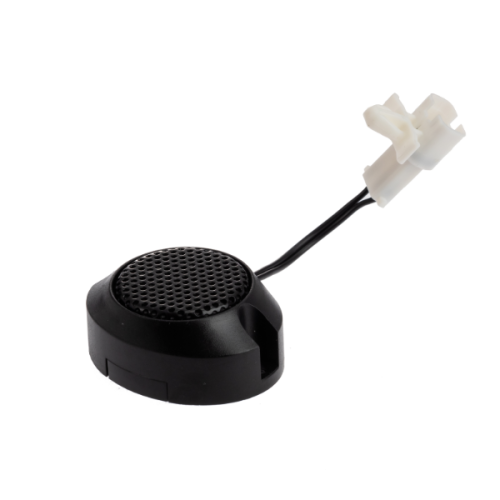

ISSR 3.2kHz External DC Voltage Driven Active Piezoelectric Buzzer
ISU-3.2D50-T3
ISSR 3.2kHz External DC Voltage Driven Active Piezoelectric Buzzer
Features:
ISSR 3.2kHz 90dB External DC voltage driven active piezoelectric buzzer
- Central Frequency: 3.2 ± 0.3 kHz for optimal sound quality
- Sound Pressure Level: 90-105 dB measured at 30cm distance
- Wide Operating Temperature: Functional in a range of -30°C to 80°C
- Storage Temperature: Safe for storage from -40°C to 85°C
- Rated Voltage: 24V with a steady output of 13.5V.
Operating Voltage Range: 9-16V suitable for various applications - Low Power Consumption: Operating current ≤30 mA at DC12V

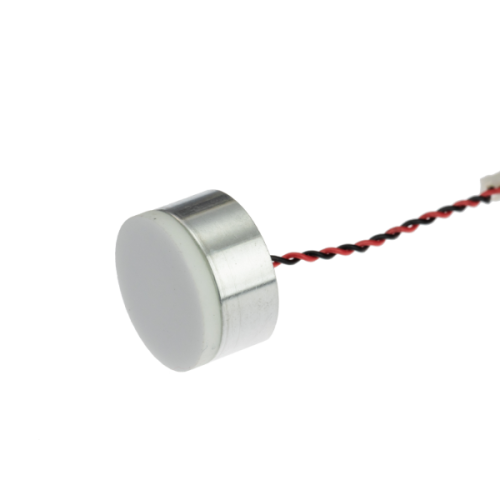

ISSR 200kHz Ultrasonic Transducer Probe for Distance Measurement and Edge Correction
ISU200-18.6TRBJ
ISSR 200kHz Ultrasonic Transducer Probe for Distance Measurement and Edge Correction
Features:
High-frequency 200kHz high-sensitivity ultrasonic ranging and correction winding diameter control sensor core transducer
- High Frequency: Operates at a center frequency of 200 kHz, ideal for precise distance measurements
- Integrated Design: A compact, single-unit design simplifies installation and usage in various applications
- Waterproof and Sealed: Designed to withstand harsh industrial environments and ensure long-lasting performance
- High Sensitivity: Offers exceptional sensitivity and signal-to-noise ratio for accurate readings in challenging conditions
- Versatile Applications: Perfect for use in distance measurement and roll material edge correction

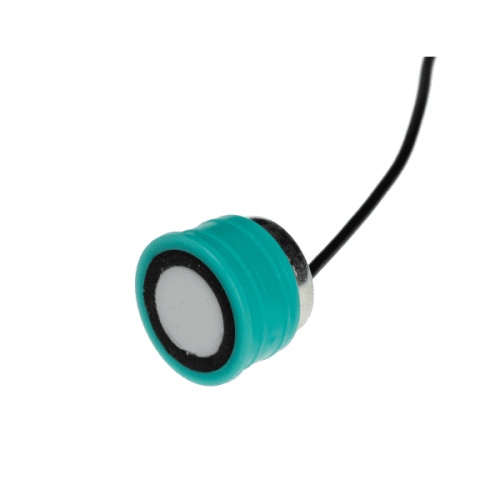

ISSR 200kHz Capteur à ultrasons à haute sensibilité pour la détection de double feuille et de distance
ISU200-16.7TRBJ
ISSR 200kHz High-Sensitivity Ultrasonic Transducer Sensor for Double Sheet & Distance Detection
Features:
200kHz High-Frequency High-Sensitivity Ultrasonic Ranging Transducer Probe
- High-frequency, high-precision detection: With a center frequency up to 200kHz (±20kHz), short wavelength, and strong directivity, it significantly improves the detection accuracy of small objects or thin materials
- Industrial-grade waterproof and sealed design: Utilizing a robust waterproof and sealed structure, it can operate stably in a wide temperature range of -40°C to +70°C, unaffected by humidity, dust, and harsh industrial environments
- Extremely short residual oscillation dead zone: The optimized piezoelectric ceramic structure controls the residual oscillation time to ≤270μs, greatly reducing the detection dead zone and achieving high-speed response at close range
- Ultra-high sensitivity and signal-to-noise ratio: Echo sensitivity ≥800mV (measured against a Φ25mm PVC pipe at 10cm), combined with a maximum drive voltage of up to 400Vp-p, ensures a strong and stable signal
- Integrated transceiver structure: The compact Ø16.7mm package design integrates transmission and reception functions, facilitating easy installation, lightweight design, and system integration

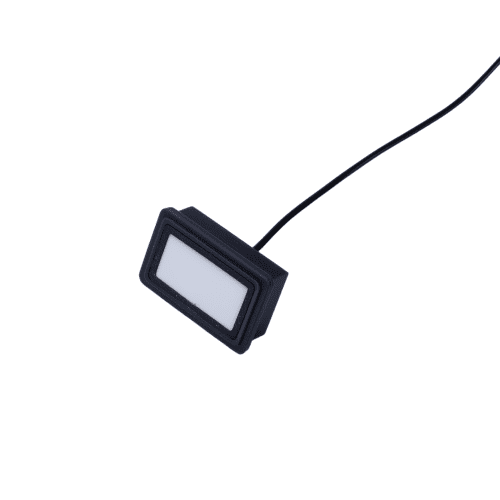

ISSR Ultrasonic Web Guiding Sensor Transducer 160kHz - Rectangular Edge Detection & Correction Probe
ISU160-2818TRAJ-T1
ISSR Ultrasonic Web Guiding Sensor Transducer 160kHz - Rectangular Edge Detection & Correction Probe
Features:
High-performance Ultrasonic Web Guiding Sensor designed for precise edge detection and correction. Featuring a robust rectangular design, this 160kHz transducer is engineered to provide stable through-beam tracking for various web materials, ensuring optimal alignment in automated production lines.
- High Precision: 155±10 kHz frequency ensures accurate edge detection.
- Rugged Design: Waterproof, sealed rectangular housing built for harsh industrial use.
- Versatile: Ideal for web fabric correction, roll guiding, and ultrasonic ranging.
- Easy Integration: Compact, lightweight structure fits seamlessly into tension control systems.
- High Performance: Rapid response with ≥1.5V sensitivity and ≤700µs ringing time.

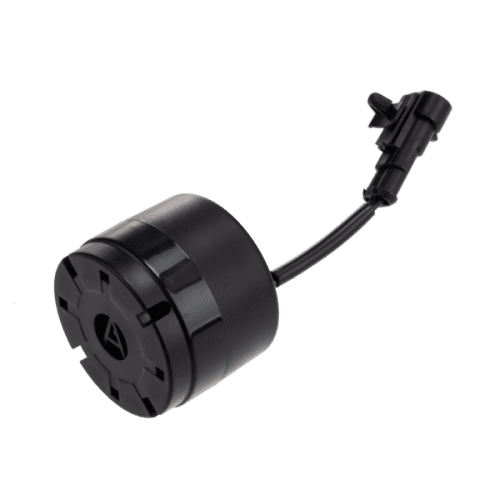

ISSR 400Hz DC Voltage Driven Active Piezoelectric Buzzer
ISU-0.4D60-T2
ISSR 400Hz DC Voltage Driven Active Piezoelectric Buzzer
Features:
ISSR 400Hz 88dB Industrial Active Piezo Buzzer
- Active design with built-in driver; plug-and-play DC operation.
- Wide voltage range compatible with standard industrial systems.
- Loud, penetrating sound ideal for noisy environments.
- Rugged, compact design suitable for diverse industrial sites.
ISSR 58kHz Transducteur ultrasonique à basse fréquence pour la télémétrie et l'évitement d'obstacles
ISU58-14TRAJ-T6
ISSR 58kHz Transducteur ultrasonique à basse fréquence pour la télémétrie et l'évitement d'obstacles
Features:
58kHz ultrasonic ranging, obstacle avoidance, and reversing radar probe
- Waterproof and airtight products
- Integrated transceiver
- Ultrasonic ranging and automotive reversing collision avoidance devices, etc.
- High bandwidth, high sensitivity, good signal-to-noise ratio, simple structure, reliable operation, and lightweight
Sonde de détection de la vitesse et de la direction du vent par ultrasons ISSR 200kHz
ISU200-12TRBJ-T1
Sonde de détection de la vitesse et de la direction du vent par ultrasons ISSR 200kHz
Features:
High-Frequency 200kHz Anemometer Transducer Probe
- Waterproof and Sealed Product
- Transmitter/Receiver Integration
- Wind speed and airflow detection; ultrasonic ranging, etc.
- Wide bandwidth, high sensitivity, good signal-to-noise ratio, simple structure, reliable operation, and lightweight
