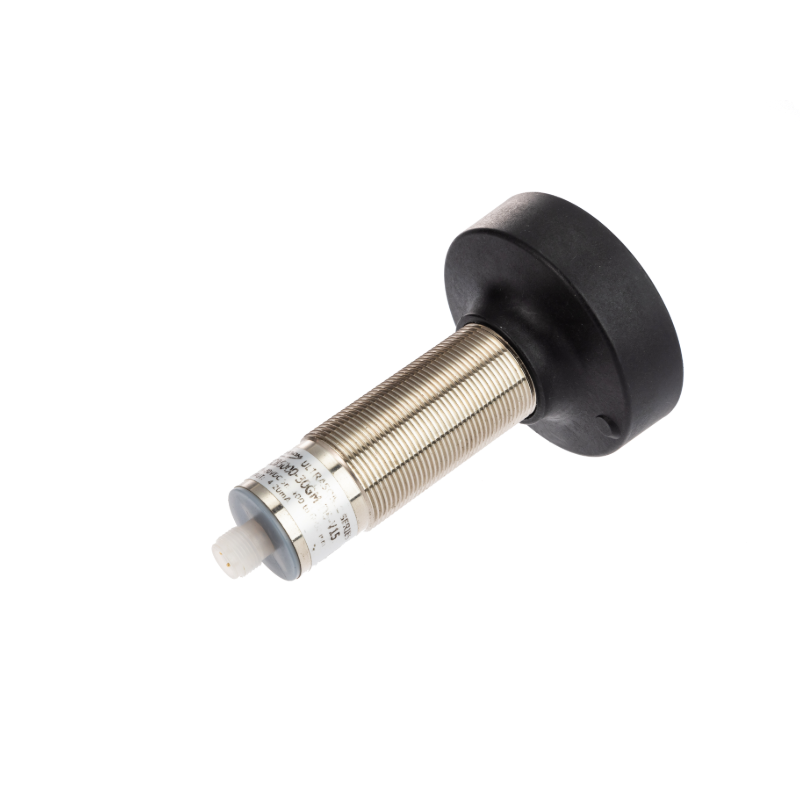

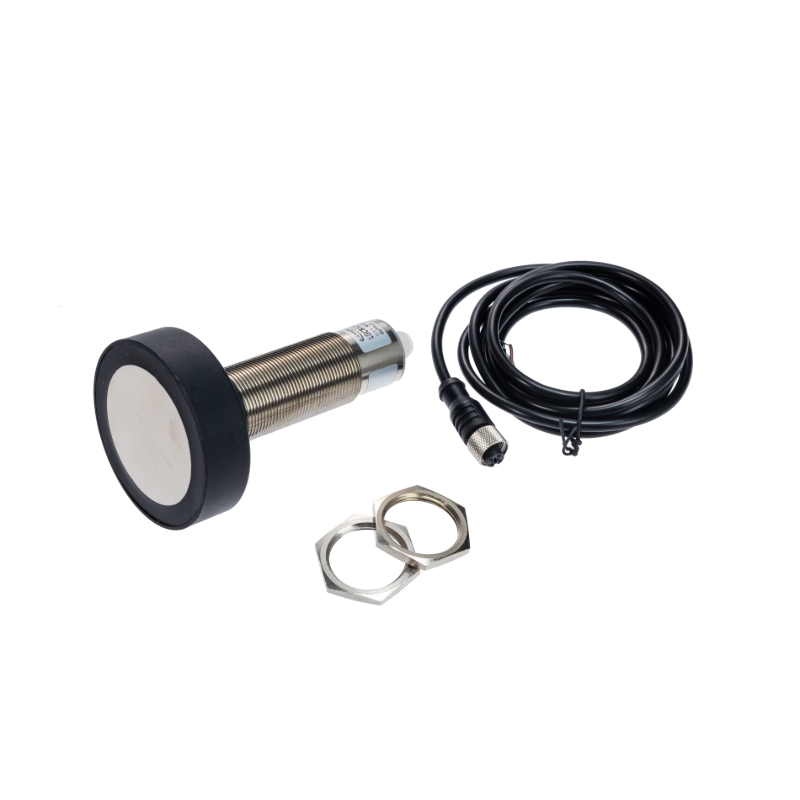

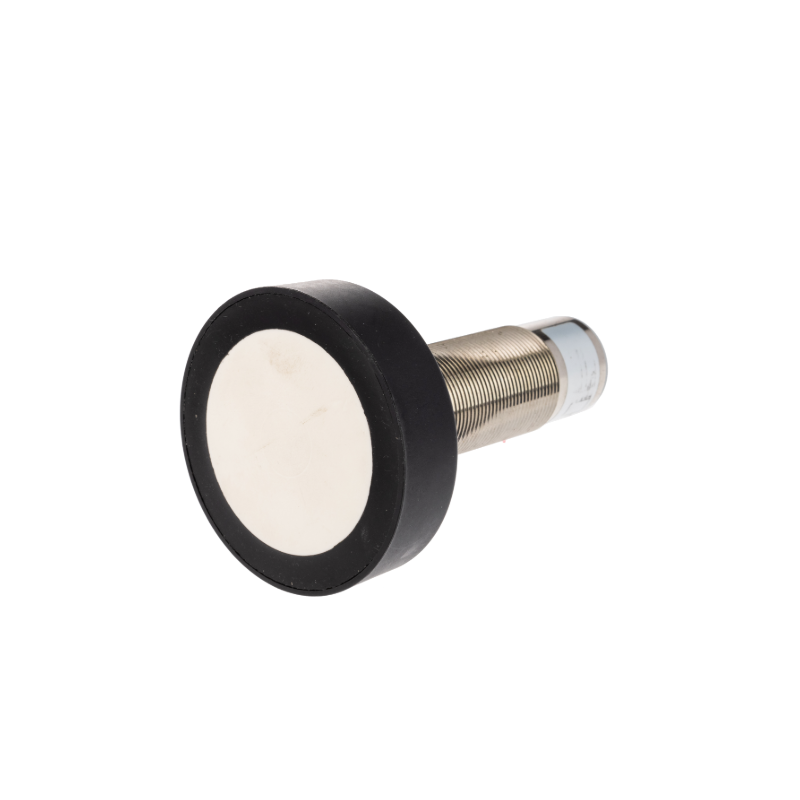

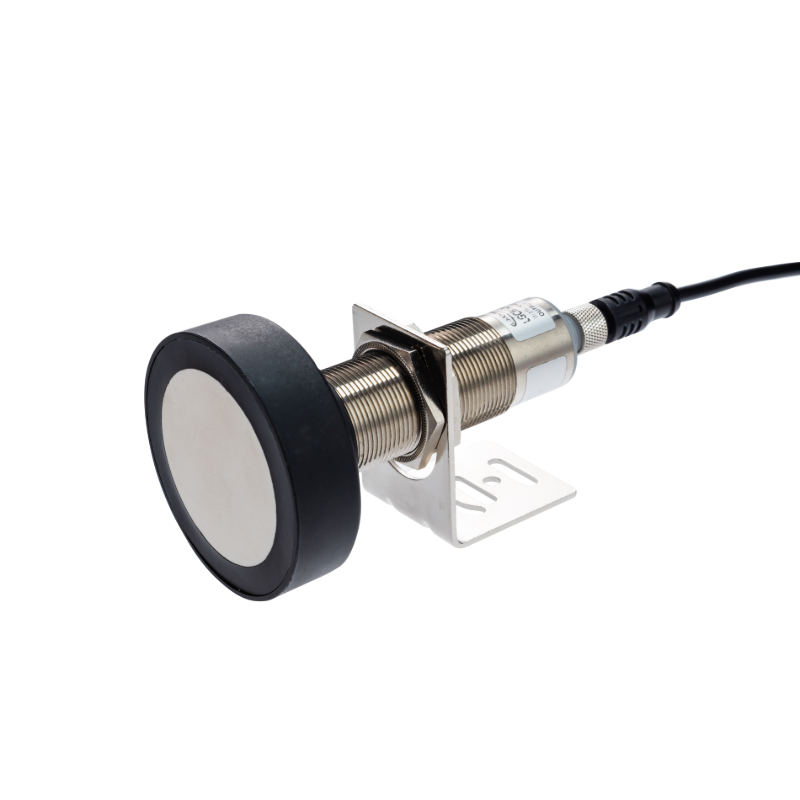

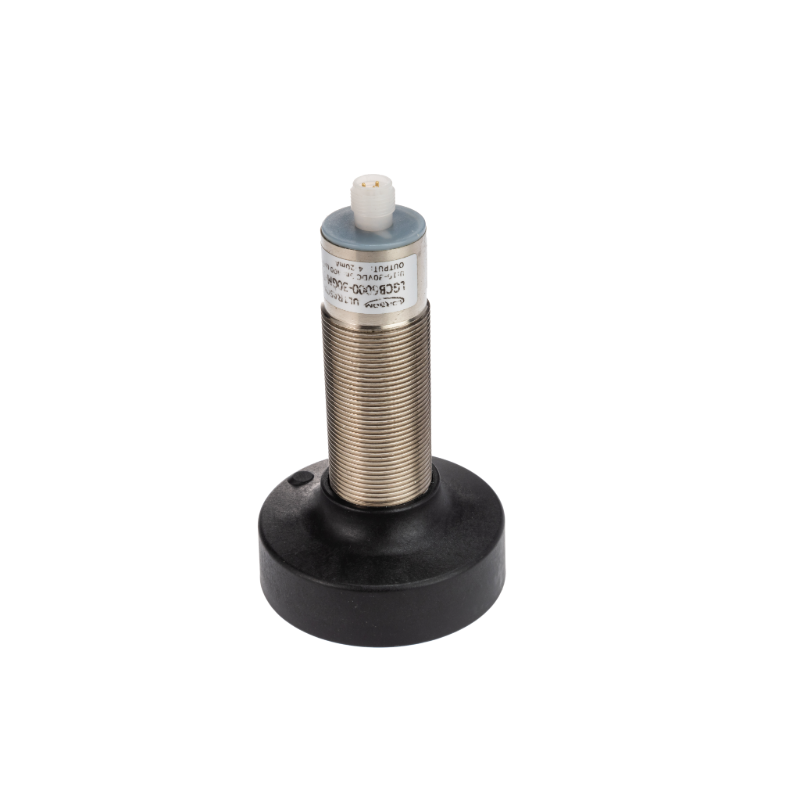

ISUB6000-30GM85
6 meter range adjustable ultrasonic liquid level and material distance sensor
Ultrasonic Level Sensor, 6m Distance Measurement, 4-20mA Analog Output, Programmable Ultrasonic Sensor, Non-contact Level Measurement, IP67 Industrial Sensor, Smart Distance Sensor, Tank Level Monitoring
Designed for demanding automation tasks, the ISUB6000-30GM85 is a flagship 6m Ultrasonic Level Sensor that redefines flexibility in industrial measurement. Unlike traditional sensors locked to a single output type, this model features a revolutionary "All-in-One" architecture. Operating at a 65kHz frequency with an impressive 350mm to 6000mm detection range, it delivers reliable, continuous measurement for both liquids and bulk solids, ensuring maximum operational efficiency across logistics, process control, and factory automation.
One Hardware, Infinite Possibilities
What sets this Industrial Ultrasonic Distance Sensor apart is its highly programmable core and intuitive setup. Engineers no longer need to stock separate models for different PLCs or control systems. By updating the firmware via a serial port tool, this single unit can seamlessly switch between Analog signals (4-20mA, 0-10V), Digital Switching (NPN, PNP), or Digital Data (TTL/RS232).
Furthermore, the built-in self-learning (Teach-in) function and clear LED status indicators allow users to effortlessly set A1 and A2 detection points, unlocking up to five distinct working modes. This versatility significantly streamlines procurement and rapid on-site maintenance.
Versatile Applications for Liquids and Solids
Whether monitoring water, aggressive chemicals, or agricultural assets, the ISUB6000 adapts to your specific environment. It excels as a highly accurate Non-Contact Tank Level Sensor, providing contamination-free, continuous monitoring for liquid storage facilities. Simultaneously, its powerful acoustic penetration makes it an ideal Ultrasonic Grain Silo Level Sensor, capable of measuring bulk solids reliably even in challenging, dusty agricultural setups.
Robust Performance in Harsh Environments
Engineered for ultimate reliability, the sensor is housed in a durable M30 casing with an IP67 protection rating, defending against dust, moisture, and mechanical wear. Powered by a flexible 9-30V DC supply, it includes essential safeguards like short-circuit and overload protection.
Even in confined spaces, the narrow ±10° beam angle and short 350mm blind zone ensure highly focused detection. Equipped with built-in temperature compensation (±2%) and delivering exceptional repeat accuracy (±1% linearity), the ISUB6000 maintains steadfast performance across extreme temperatures ranging from -25°C to 70°C—providing data you can trust, no matter the conditions.
Specification
| Model | ISUB6000-30GM85-I-V1 ISUB6000-30GM85-U5-V1 ISUB6000-30GM85-U10-V1 |
ISUB6000-30GM85-E4-V1 ISUB6000-30GM85-E5-V1 ISUB6000-30GM85-E8-V1 ISUB6000-30GM85-E9-V1 |
ISUB6000-30GM85-TTL-V1 |
|---|---|---|---|
| Detection Range | 350 ~ 6000mm | 350 ~ 6000mm | 350 ~ 6000mm |
| Adjustment Range | 370 ~ 6000mm | 370 ~ 6000mm | 370 ~ 6000mm |
| Blind Area | 350mm | 350mm | 350mm |
| Angle | ±10° | ±10° | ±10° |
| Transducer Frequency | Approximately 65kHz | Approximately 65kHz | Approximately 65kHz |
| Response Delay | ≤ 300ms | ≤ 300ms | ≤ 300ms |
| Operating Voltage | I: 12~30 V DC U5: 9 ~ 30 V DC U10: 15 ~ 30 V DC |
9 ~ 30V | 5 ~ 30V DC |
| No-load Current | ≤ 30mA | ≤ 30mA | ≤ 30mA |
| Output Form | I: 4 ~ 20mA U5: 0 ~ 5V U10: 0 ~ 10V |
E4: NPN E5: PNP E8: NPN Hysteresis Mode E9: PNP hysteresis mode |
TTL: TTL232 interface |
| Resolution | 4mm | 4mm | 4mm |
| Linearity | ± 1% of full-scale value | ± 1% of full-scale value | ± 1% of full-scale value |
| Repeat Accuracy | ± 1% of full-scale value | ± 1% of full-scale value | ± 1% of full-scale value |
| Rated Operating Current | / | 200mA, short-circuit protected | / |
| Load Impedance | U5/U10: ≥ 1kΩ I: ≤300Ω |
/ | / |
| Hysteresis Range | / | E4/E5: 1% of the set switching distance | / |
| Temperature Drift | ± 2% of full scale value | ± 2% of full scale value | ± 2% of full scale value |
| Working Temperature | -25 ~ 70 ℃ | -25 ~ 70 ℃ | -25 ~ 70 ℃ |
| Storage Temperature | -40 ~ 85 ℃ | -40 ~ 85 ℃ | -40 ~ 85 ℃ |
| Electromagnetic Compatibility | GB/T17626.2-2006; GB/T17626.4-2008; |
GB/T17626.2-2006; GB/T17626.4-2008; |
GB/T17626.2-2006; GB/T17626.4-2008; |
| Protection Level | IP67 | IP67 | IP67 |
| Connection Mode | V1 connector (M12 × 1), 4-pin | V1 connector (M12 × 1), 4-pin | V1 connector (M12 × 1), 4-pin |
Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications
Versatile Tank & Silo Level Monitoring (6m Range) The ISUB6000-30GM85 is a powerhouse for industrial level measurement, boasting a long detection range of 6 meters within a standard M30 housing. It is engineered for large-scale applications, such as monitoring liquid levels in chemical storage tanks and measuring solid material levels in grain silos and feed bins. Its robust ultrasonic technology ignores color, transparency, and harsh lighting, ensuring reliable data even in dusty or misty environments typical of agriculture and heavy industry. All-in-One Output for Flexible Integration What sets this sensor apart is its fully integrated multi-output interface. A single unit supports Analog (Current/Voltage), Switching (NPN/PNP), and Digital (TTL/RS232) outputs, which can be selected based on your system requirements. This "universal" design makes it the perfect solution for diverse projects—from river water level monitoring in smart cities to automated inventory control in factories—simplifying installation and reducing the need to stock multiple sensor models.
