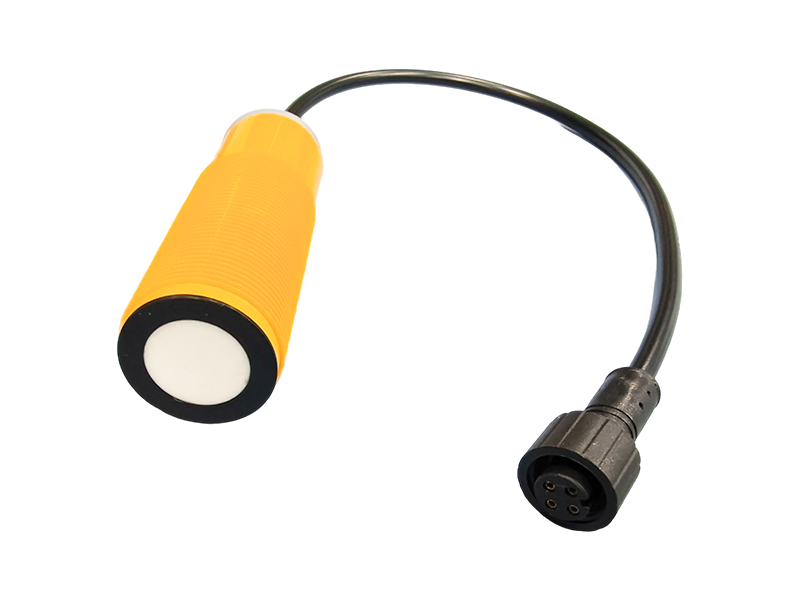

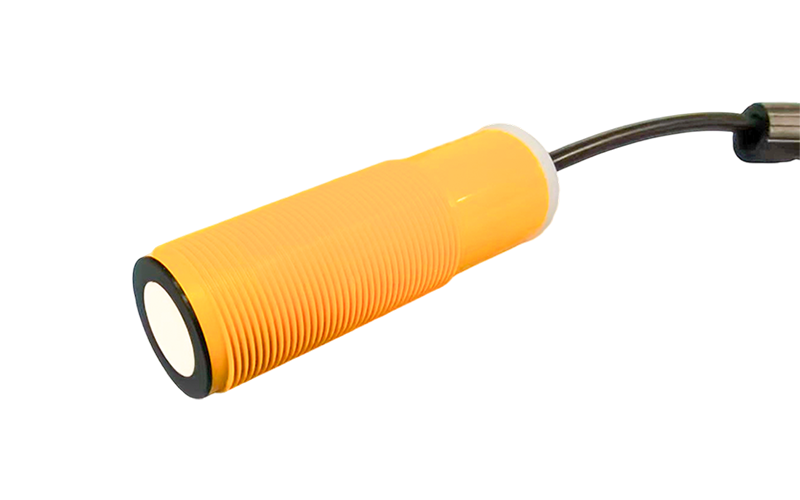

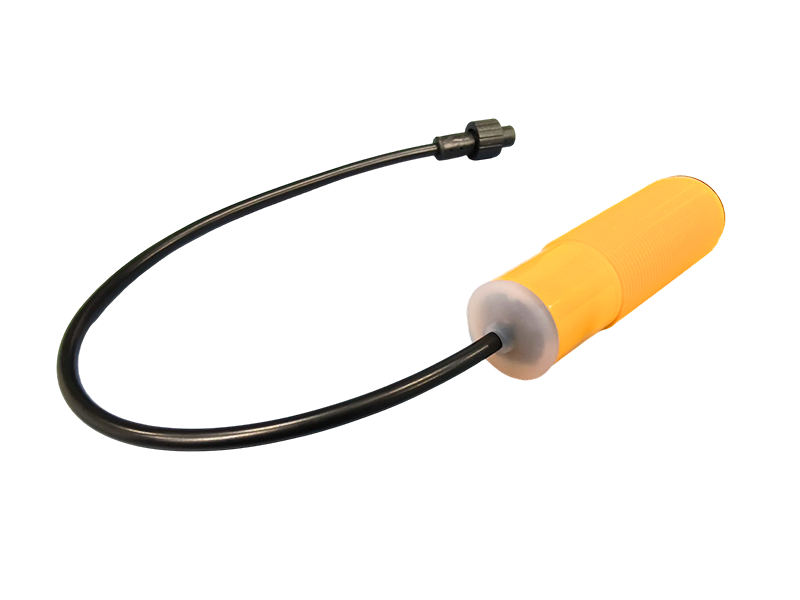

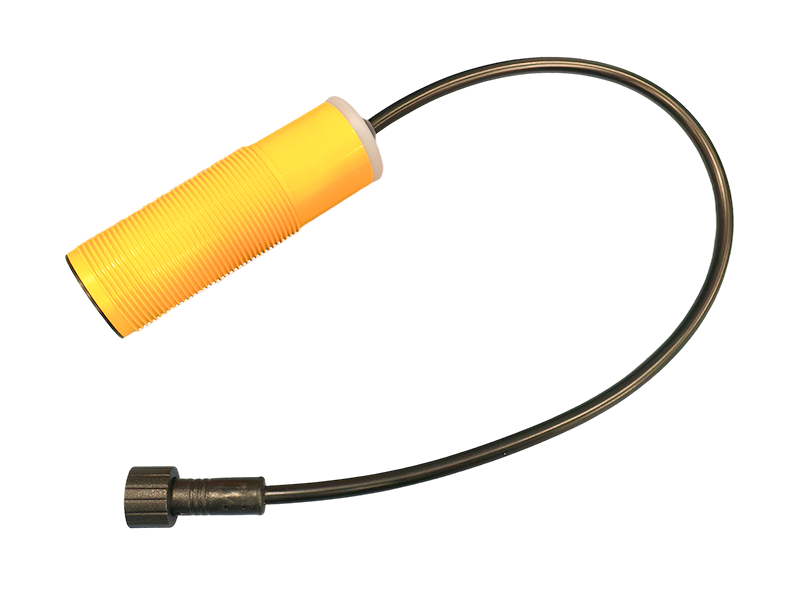

ISUB450-30GK85-R2T-V1C-RN
Anti-Corrosion Ultrasonic Level Sensor for Wet-Dry Feeding Tanks (150-450mm, RS232)
Anti-Corrosion Ultrasonic Sensor, Wet-Dry Feeder Level Sensor, Porridge Machine Level Monitor, RS232 Material Level Transducer, IP65 Waterproof Ultrasonic Sensor, Granular Feed Distance Measurement, Temperature Compensated Level Sensor, Slurry Tank Level Detector.
The ISUB450-30GK85-R2T-V1C-RN is a high-performance, anti-corrosion ultrasonic level sensor meticulously engineered for precise distance and material level measurement in demanding agricultural and industrial environments. Operating reliably within a 150-450mm detection range, it delivers exceptional accuracy with a 0.5mm resolution and an RS232 output for seamless automation system integration. Designed with harsh environments in mind, this sensor features a robust IP65-rated housing, built-in temperature compensation (-20℃ to 70℃), and comprehensive electrical protection against overvoltage and reverse polarity. Whether measuring flat-pile granular feed or monitoring challenging wet-dry mixed media, this sensor ensures consistent, trustworthy data collection to optimize your automated feeding and storage systems while resisting chemical and environmental wear.
Specification
| Technical Parameters | |
|---|---|
| Detection Range | 150...450mm |
| Adjustment Range | 150...450mm |
| Blind Zone | 0...150mm |
| Standard Target Plate | 200×200mm flat stacked pellet feed |
| Angle | ±7° |
| Sensor Frequency | Approx. 200KHz |
| Response Delay | 130ms |
| Operating Voltage | 12~30VDC, 10%Vpp |
| Protection Circuit | Reverse polarity protection, Transient overvoltage protection |
| No-load Current | ≤25mA |
| LED Green Light | Power indicator, Always on |
| Output | |
| Output Interface | RS232 |
| Resolution | 0.5mm |
| Repeatability | 0.6% of Full Scale |
| Temperature Drift | 0.05%/ºC (Built-in temp compensation) |
| Linearity | <2% |
| Characteristics | |
| Operating Temperature | -20℃...70℃ |
| Storage Temperature | -40℃...85℃ |
| EMC | GB/T17626.2-2006; GB/T17626.4-2008 |
| Protection Rating | IP65 |
| Connection | 4-core cable with female tail plug, 0.33m |
| Housing Material | Plastic PBT |
| Weight | 85g |

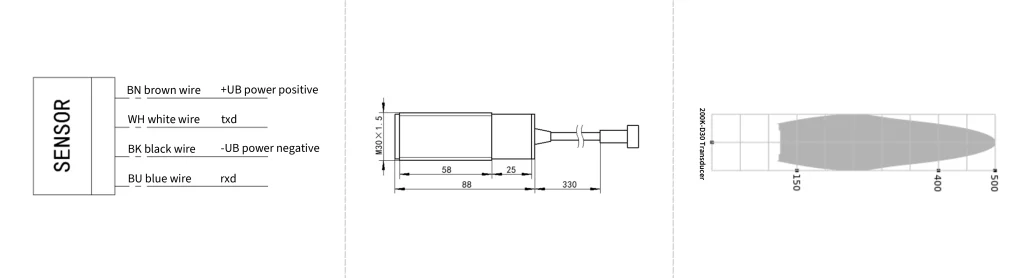

Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications

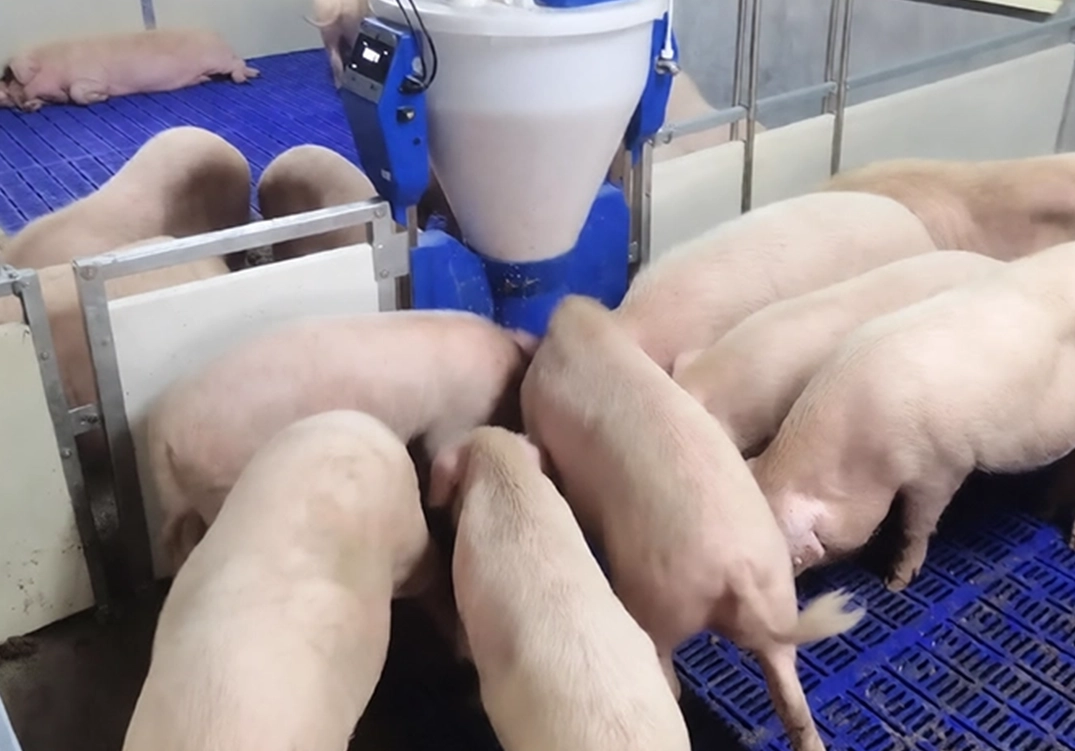

This anti-corrosion ultrasonic level sensor is exceptionally well-suited for liquid and material level detection in wet-dry mixing tanks, such as automated porridge feeders (liquid feeding machines) used in modern livestock farming. In these challenging applications where high humidity, feed dust, and corrosive slurry mixtures are constantly present, the sensor's anti-corrosion probe accurately monitors the level of the feed-water mixture without physical contact. By precisely tracking the wet-feed levels in real time (with a rapid 130ms response time), it triggers the automated system to refill or stop, preventing tank overflows or dry runs. This ensures a continuous, optimal supply of mixed porridge feed for livestock while easily withstanding the harsh, acidic conditions inside the mixing tank. Beyond automated porridge feeders, the sensor's robust, corrosion-resistant design makes it highly versatile for a wide range of demanding industrial and agricultural applications. It is equally effective for continuous, non-contact level and material detection in chemical storage tanks, wastewater treatment facilities, liquid fertilizer vats, and agricultural fermentation silos. Wherever highly acidic liquids, corrosive gases, or harsh slurries are present, this sensor delivers the reliable, precision tracking required to automate and safeguard complex storage systems.
