ISUB6000-30GM85

ISSR 6M Ultrasonic Level Sensor|Multi-Output Analog/Switching/Digital

Features:

6-meter adjustable ultrasonic liquid level and material distance sensor

  • Universal Integration: One sensor supports multiple output modes (4-20mA, 0-10V, NPN, PNP, RS232), switchable via firmware update to reduce inventory costs
  • Extended & Adjustable Range: Detects from 350mm up to 6000mm, with A1/A2 point teaching capabilities that allow users to map the analog output or switching points exactly to the tank's required depth
  • High Stability: Built-in temperature compensation and advanced algorithms ensure ±1% linearity and stability in fluctuating environments (-25°C to 70°C)
  • Rugged Industrial Design: IP67 rated M30 housing with a 300ms response time, capable of withstanding harsh factory conditions
  • Precise Customization: Features A1/A2 learning logic via serial port tools, enabling engineers to easily define the sensing window, adjust blind zones, and configure hysteresis for stable level detection

Downloads Manual:

Share your love

Product Information

ISUB6000-30GM85

6 meter range adjustable ultrasonic liquid level and material distance sensor

Ultrasonic Level Sensor, 6m Distance Measurement, 4-20mA Analog Output, Programmable Ultrasonic Sensor, Non-contact Level Measurement, IP67 Industrial Sensor, Smart Distance Sensor, Tank Level Monitoring

View More Other Products

The ISUB6000-30GM85 is a flagship 6-meter ultrasonic distance and level sensor designed for demanding industrial automation tasks. Unlike traditional sensors that are locked to a single output type, the sensor series features a revolutionary "All-in-One" architecture. Operating at a frequency of approximately 65kHz, it delivers reliable non-contact measurement for liquids and bulk solids, ensuring operational efficiency in logistics, tank monitoring, and factory automation.

One Hardware, Infinite Possibilities
What sets the ISUB6000-30GM85 apart is its programmable core. Engineers no longer need to stock separate models for different control systems. By simply updating the firmware via the serial port tool, this single hardware unit can transform to output Analog signals (4-20mA, 0-10V), Digital Switching signals (NPN, PNP, Hysteresis modes), or Digital Data (TTL/RS232). This flexibility significantly streamlines procurement and simplifies on-site maintenance, allowing for rapid adaptation to changing project requirements.

Robust Performance in Harsh Environments
Engineered for reliability, the sensor is housed in a durable M30 casing with an IP67 protection rating. It features a narrow ±10° beam angle and a small 350mm blind zone, ensuring focused detection even in confined spaces. With built-in temperature compensation and protection against short circuits and reverse polarity, the ISUB6000 maintains high accuracy (±1% linearity) across a wide temperature range of -25°C to 70°C, providing data you can trust.

Specification

Model ISUB6000-30GM85-I-V1
ISUB6000-30GM85-U5-V1
ISUB6000-30GM85-U10-V1		 ISUB6000-30GM85-E4-V1
ISUB6000-30GM85-E5-V1
ISUB6000-30GM85-E8-V1
ISUB6000-30GM85-E9-V1		 ISUB6000-30GM85-TTL-V1
Detection Range 350 ~ 6000mm 350 ~ 6000mm 350 ~ 6000mm
Adjustment Range 370 ~ 6000mm 370 ~ 6000mm 370 ~ 6000mm
Blind Area 350mm 350mm 350mm
Angle ±10° ±10° ±10°
Transducer Frequency Approximately 65kHz Approximately 65kHz Approximately 65kHz
Response Delay ≤ 300ms ≤ 300ms ≤ 300ms
Operating Voltage I: 12~30 V DC
U5: 9 ~ 30 V DC
U10: 15 ~ 30 V DC		 9 ~ 30V 5 ~ 30V DC
No-load Current ≤ 30mA ≤ 30mA ≤ 30mA
Output Form I: 4 ~ 20mA
U5: 0 ~ 5V
U10: 0 ~ 10V		 E4: NPN
E5: PNP
E8: NPN Hysteresis Mode
E9: PNP hysteresis mode		 TTL: TTL232 interface
Resolution 4mm 4mm 4mm
Linearity ± 1% of full-scale value ± 1% of full-scale value ± 1% of full-scale value
Repeat Accuracy ± 1% of full-scale value ± 1% of full-scale value ± 1% of full-scale value
Rated Operating Current / 200mA, short-circuit protected /
Load Impedance U5/U10: ≥ 1kΩ
I: ≤300Ω		 / /
Hysteresis Range / E4/E5: 1% of the set switching distance /
Temperature Drift ± 2% of full scale value ± 2% of full scale value ± 2% of full scale value
Working Temperature -25 ~ 70 ℃ -25 ~ 70 ℃ -25 ~ 70 ℃
Storage Temperature -40 ~ 85 ℃ -40 ~ 85 ℃ -40 ~ 85 ℃
Electromagnetic Compatibility GB/T17626.2-2006;
GB/T17626.4-2008;		 GB/T17626.2-2006;
GB/T17626.4-2008;		 GB/T17626.2-2006;
GB/T17626.4-2008;
Protection Level IP67 IP67 IP67
Connection Mode V1 connector (M12 × 1), 4-pin V1 connector (M12 × 1), 4-pin V1 connector (M12 × 1), 4-pin

Electrical Connection / Overall Dimensions / Response Characteristic Curve

Typical Applications

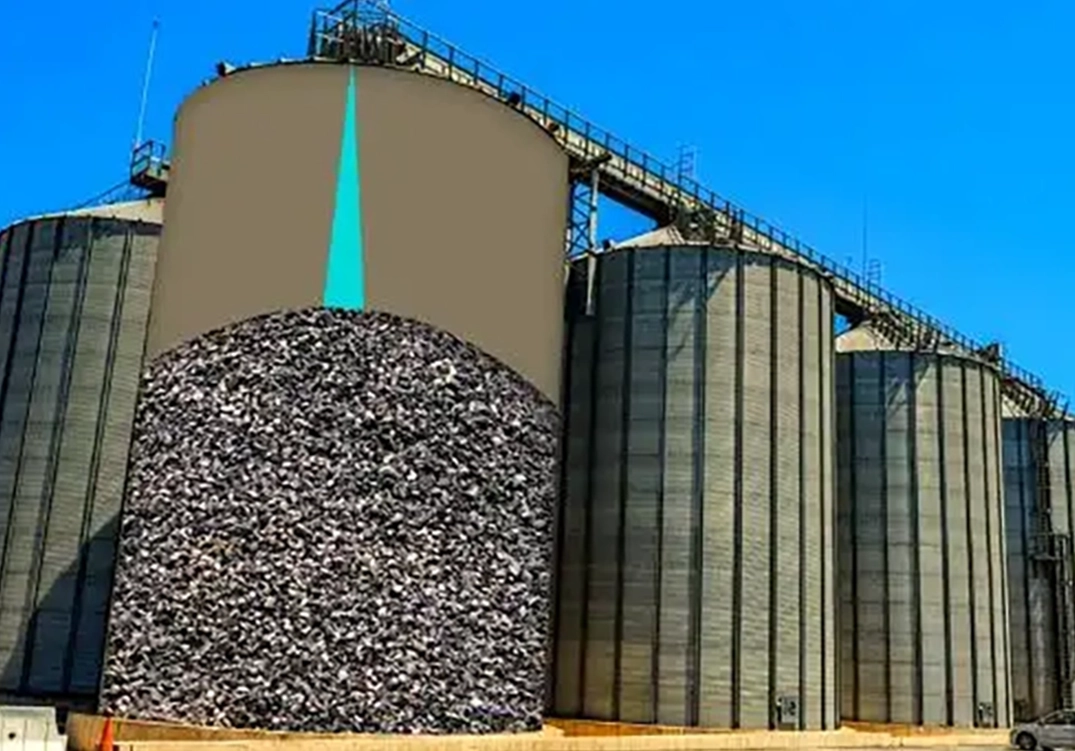

Application-of-solid-material-level-detection-in-large-storage-silos-ISUB6000-30GM85

The ISUB6000-30GM85 is engineered to handle the complexities of measuring solid materials, such as plastic pellets, grain, animal feed, or gravel, in storage silos up to 6 meters high. The Challenge: In solid material applications, the surface is rarely flat—filling creates a cone shape, and emptying creates a funnel. Additionally, dust generation and abrasive materials frequently damage mechanical paddle switches or tuning forks. The Solution: Utilizing a 65kHz ultrasonic frequency, the sensor provides reliable non-contact measurement that ignores moderate dust suspension. Its robust IP67 housing prevents dust ingress, ensuring long-term durability without the wear and tear associated with contact sensors. Versatile Deployment: For precise inventory management, the sensor’s Analog Mode (4-20mA) can be calibrated using A1/A2 teaching points to map the silo's full and empty states, compensating for the material's angle of repose. Conversely, for process automation, it can be switched to Digital Output (PNP/NPN) to act as a high-level alarm, automatically stopping the conveyor feed when the hopper reaches capacity to prevent overflow.
