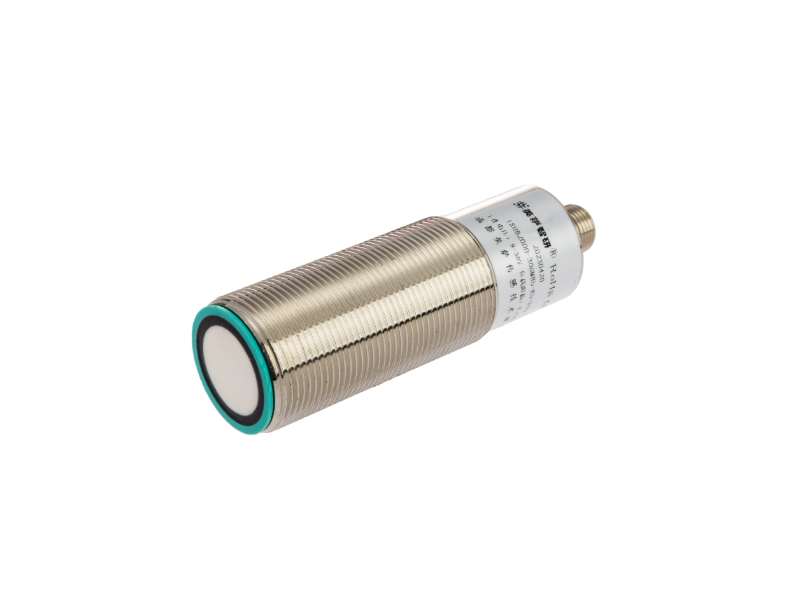

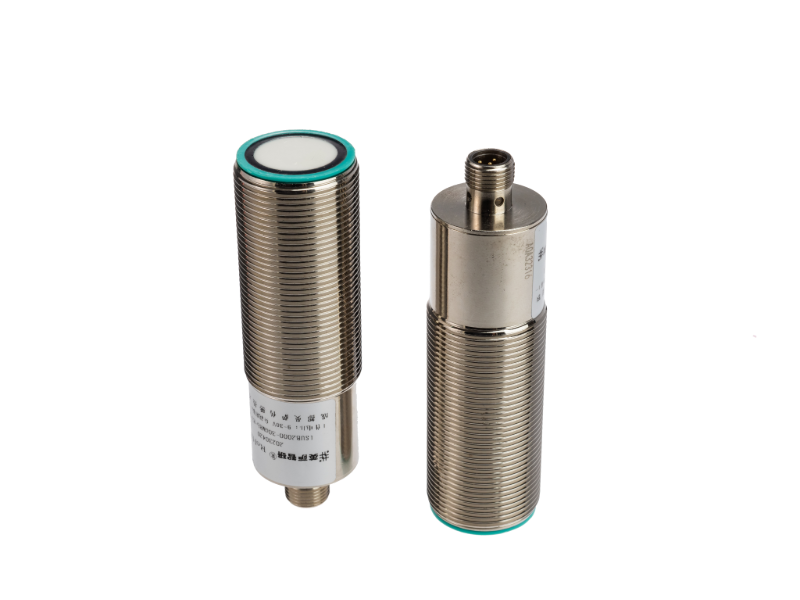

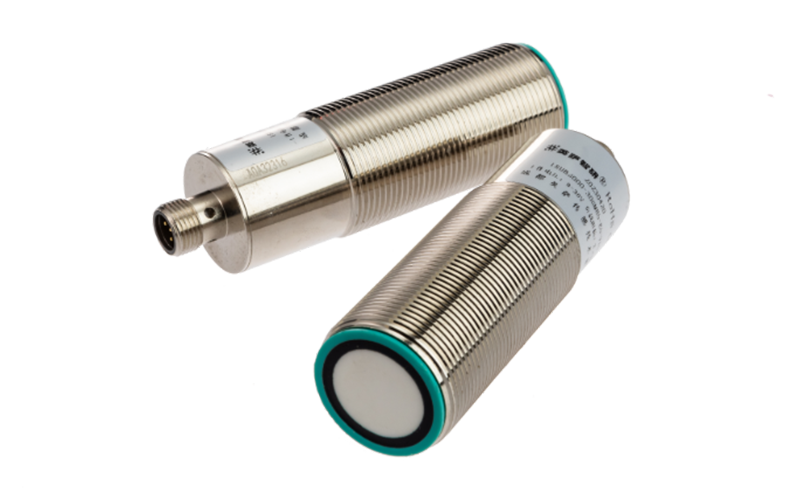

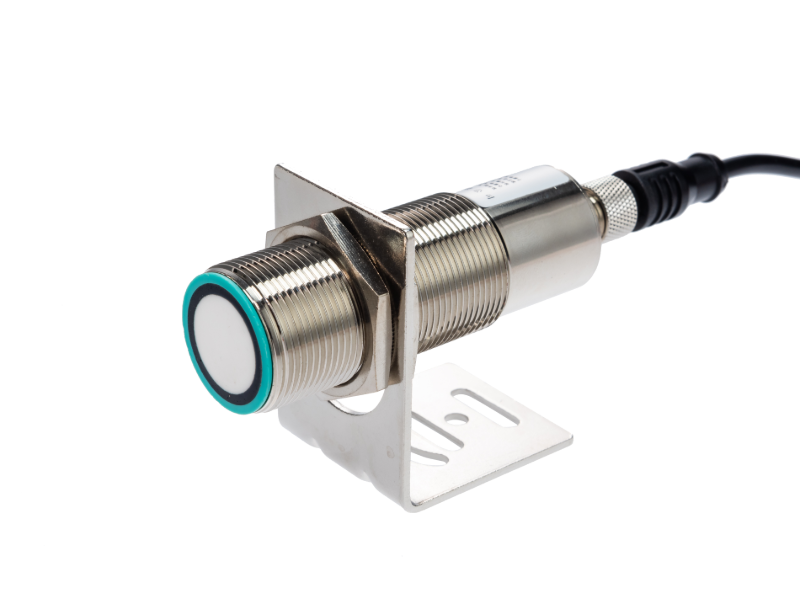

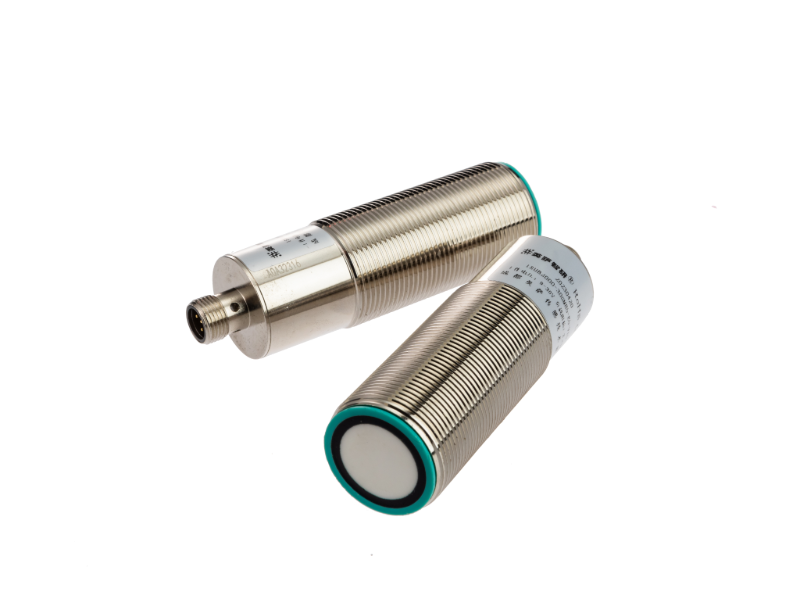

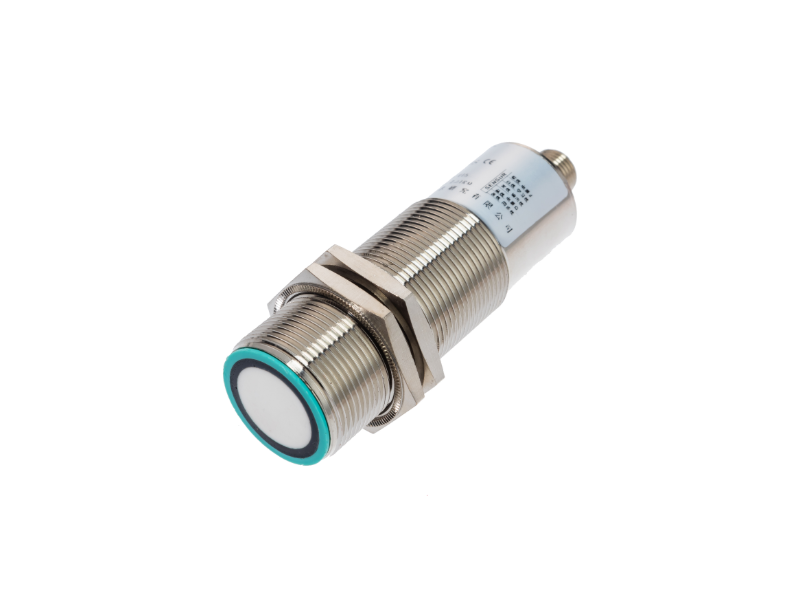

ISUB500-30GM85

ISSR All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output

Features:

500mm 180kHz Fully Integrated Ultrasonic Ranging Sensor

  • Multi-Mode Output Versatility: A single hardware unit supports NPN, PNP, 4-20mA, 0-5V, 0-10V, and TTL232 outputs. Output modes can be switched simply by updating the firmware via the serial port, reducing inventory complexity.
  • High-Precision Short-Range Detection: Offers a precise 50mm to 500mm detection range with a small 50mm blind zone and 0.5mm resolution, ideal for confined industrial spaces.
  • Robust Industrial Design: Features an IP67 protection rating and a wide operating temperature range (-25°C to 70°C) with built-in temperature compensation for reliable performance in harsh environments.
  • Interference Immunity: Supports synchronization for up to 5 units to prevent cross-talk in close-proximity installations.
  • Smart Signal Processing: Operates at ~180kHz frequency with a narrow beam angle (±5°), ensuring stable detection of small or moving objects.

Downloads Manual:

Share your love

Product Information

ISUB500-30GM85

All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output

Ultrasonic Distance Sensor, All-in-One Sensor, Programmable Output, 0.5m Range Sensor, IP67 Ultrasonic Sensor, Industrial Automation, Object Detection, Conveyor Belt Sensor, Analog and Digital Output

View More Other Products

The ISUB500-30GM85 Series represents the next generation of "All-in-One" ultrasonic sensing technology. Designed for maximum flexibility in industrial automation, this 0.5-meter range sensor distinguishes itself with a universal hardware architecture that streamlines inventory management. Users can configure a single unit to output Switching (NPN/PNP), Analog (4-20mA/0-10V), or Digital (TTL232/RS232) signals simply by updating the internal program via a serial tool.

Engineered for precision and durability, the sensor features a high-frequency 180kHz transducer that minimizes the blind zone to just 50mm while maintaining a linearity of ±1%. This short-range precision makes the ISUB500 exceptionally versatile in application. It excels in object presence detection on conveyor belts, reliably identifying targets regardless of shape, color, or transparency. Furthermore, its stable analog output capabilities allow for accurate liquid and solid level monitoring in small tanks, hoppers, and filling machines.

Housed in a rugged IP67 casing with built-in temperature compensation and synchronization for up to 5 units, the ISUB500-30GM85 is the ultimate solution for engineers seeking to standardize their sensing components for both discrete detection and continuous level measurement tasks.

Specification

Model ISUB500-30GM85-I-V15
ISUB500-30GM85-U5-V15
ISUB500-30GM85-U10-V15 		ISUB500-30GM85-E4-V15
ISUB500-30GM85-E5-V15
ISUB500-30GM85-E8-V15
ISUB500-30GM85-E9-V15 		ISUB500-30GM85-TTL-V15
Detection Range 50...500mm 50...500mm 50...500mm
Adjustment Range 60...500mm 60...500mm 60...500mm
Blind Zone 50mm 50mm 50mm
Standard Target Plate 100mm × 100mm 100mm × 100mm 100mm × 100mm
Beam Angle ±5° ±5° ±5°
Transducer Frequency Approx. 180kHz Approx. 180kHz Approx. 180kHz
Response Delay ≤50ms ≤50ms ≤50ms
Operating Voltage I: 12...30 V DC
U5: 9...30 V DC
U10: 15...30 V DC 		9...30 V DC 5...30 V DC
No-load Current ≤30mA ≤30mA ≤30mA
Synchronization 1...5 units synced 1...5 units synced 1...5 units synced
Output Type I: 4-20mA
U5: 0-5V
U10: 0-10V 		E4: NPN
E5: PNP
E8: NPN Hysteresis
E9: PNP Hysteresis 		TTL: TTL232 Interface
Resolution 0.5mm 0.5mm 0.5mm
Linearity ±1% (Full Scale) ±1% (Full Scale) ±1% (Full Scale)
Repeat Accuracy ±1% (Full Scale) ±1% (Full Scale) ±1% (Full Scale)
Rated Operating Current / 200mA (Short-circuit protection) /
Load Impedance U5/U10: ≥1kΩ
I: ≤300Ω 		/ /
Hysteresis Range / E4/E5: 1% of set distance /
Temperature Drift ±2% (Full Scale) ±2% (Full Scale) ±2% (Full Scale)
Operating Temperature -25...70℃ -25...70℃ -25...70℃
Storage Temperature -40...85℃ -40...85℃ -40...85℃
EMC GB/T17626.2-2006;
GB/T17626.4-2008		 GB/T17626.2-2006;
GB/T17626.4-2008		 GB/T17626.2-2006;
GB/T17626.4-2008
Protection Degree IP67 IP67 IP67
Connection V15 Connector (M12×1), 5-pin V15 Connector (M12×1), 5-pin V15 Connector (M12×1), 5-pin

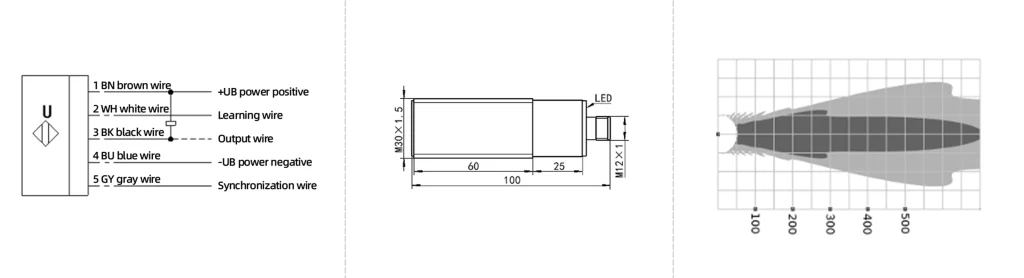

Electrical Connection / Overall Dimensions / Response Characteristic Curve

Typical Applications

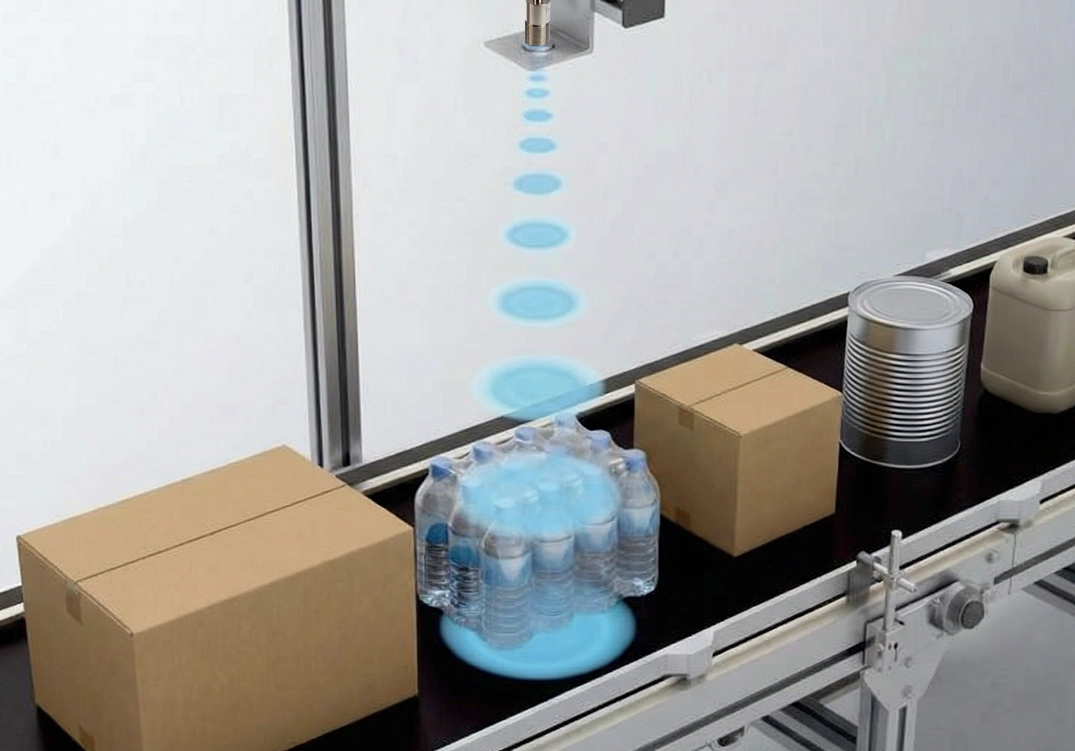

Applications of conveyor belt object presence detection for objects of various shapes and materials-ISUB500-30GM85

In automated logistics and packaging, the ISUB500-30GM85 excels at Transmission Belt Object Presence Detection. Unlike optical sensors that may struggle with transparency or reflectivity, this ultrasonic sensor utilizes sound waves to reliably identify objects regardless of their color, transparency, or surface texture. Whether the target is a clear glass bottle, a shiny metal part, or a dark rubber component, the ISUB500-30GM85 provides stable detection. It is specifically capable of identifying objects with various shapes and reflective characteristics, ensuring high machine flexibility. For example, on a bottling line, it can detect the presence of bottles to trigger filling mechanisms; on a sorting belt, it measures the height or presence of boxes. Its programmability allows engineers to switch from a simple "presence/absence" switch mode to an "distance measurement" mode on the fly, adapting to different production requirements without changing the hardware.
