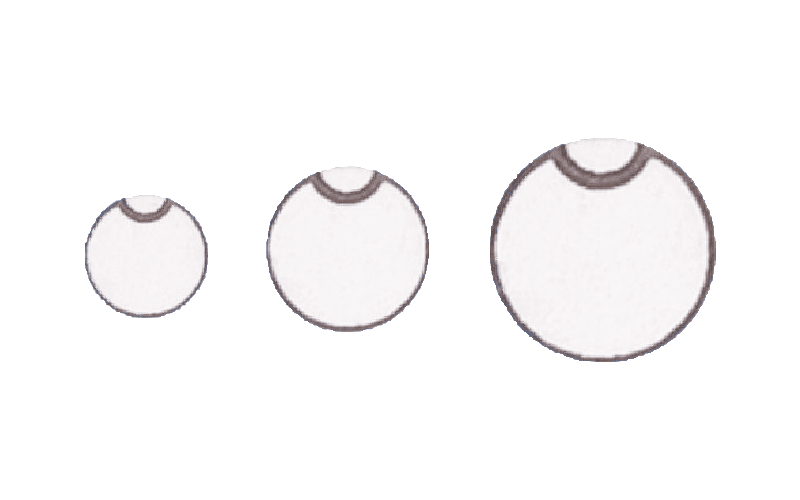

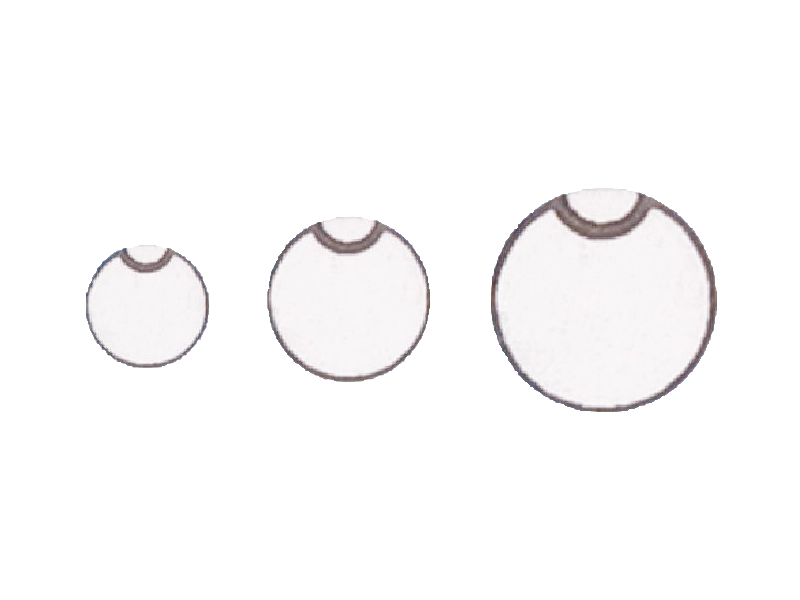

Piezoelectric ceramic elements for ultrasonic beauty devices

ISSR Piezoelectric Ceramic for Ultrasonic Beauty Devices

Features:

Piezoelectric ceramic elements for ultrasonic beauty devices

  • Compact Size Options: Available in dimensions of 12.02.0 mm, 20.02.0 mm, and 25.0*2.0 mm, these piezoelectric ceramics are designed to fit seamlessly into various ultrasonic beauty devices like skin scrubbing tools
  • Wide Frequency Range: Operating at frequencies of 1000 kHz ± 2% and 3000 kHz ± 2%, these components produce effective ultrasonic waves that enhance deep cleansing and skincare treatment performance
  • High Electromechanical Coupling Factor: With a coupling factor (Kp) greater than 0.60, the ceramics ensure efficient energy conversion, leading to improved effectiveness in applications such as exfoliation and skin rejuvenation
  • Durable Construction: Robust materials and design contribute to longevity and reliability, making the components suitable for regular use in both professional and home beauty settings
  • Versatile Applications: Ideal for a range of beauty treatments, these piezoelectric ceramics can be integrated into various devices, enhancing their functionality in promoting healthier and clearer skin

Downloads Manual:

Share your love

Product Information

High-Performance Piezoelectric Ceramic for Ultrasonic Beauty Devices

High Performance, Compact Size, Wide Frequency Range, Durable, Versatile Applications

View More Other Products

The high-performance piezoelectric ceramic components are designed specifically for ultrasonic beauty devices, offering exceptional efficiency and reliability. Available in various sizes, including 12.02.0 mm, 20.02.0 mm, and 25.0*2.0 mm, these components operate effectively across a broad frequency range of 1000 kHz to 3000 kHz. Each unit boasts a high electromechanical coupling factor (Kp) greater than 0.60, ensuring optimal energy conversion and performance. With robust static capacitance and pressure sensitivity, these piezoelectric ceramics provide effective solution for skincare technologies, enhancing the effectiveness of beauty treatments.

Specification

Specifications and Dimensions Φ*Hmm 12.0*2.0 20.0*0.65 20.0*2.0 25.0*2.0 Other specifications can be customized
Resonant Frequency (kHz) 1000±2% 3000±2% 1000±2% 1000±2% ✓
Static Capacitance (PF) 550±15% 5000±15% 1600±15% 2600±15% ✓
Piezoelectric Strain Constant (D33) >280, 1e-12C/N ✓
Electromechanical Coupling Coefficient (Kp) >0.60 ✓
Mechanical Quality Factor (Qm) 300 ✓
Operating Temperature (Tc) < 150 ✓
Curie Temperature (Tc) 300 ✓

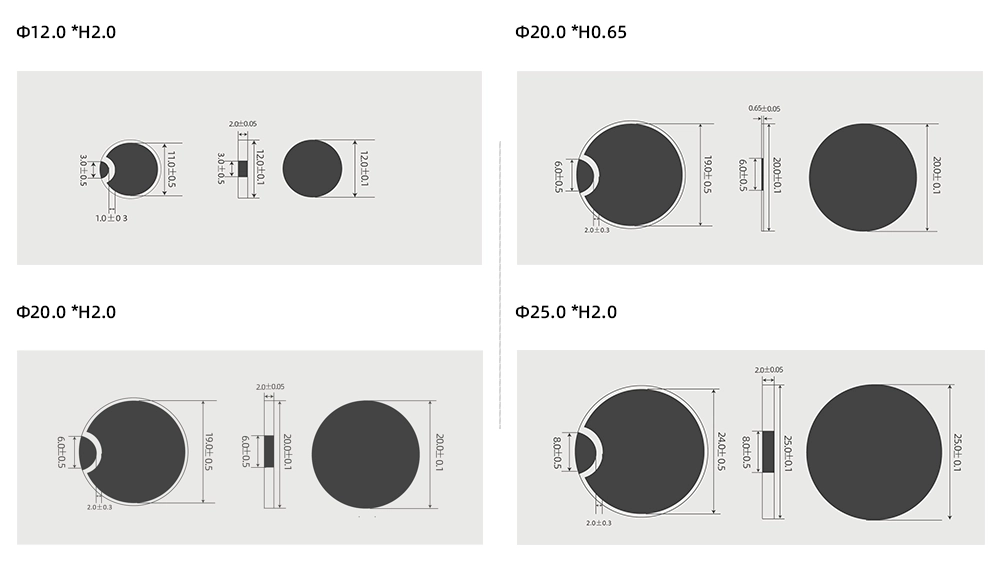

Dimensions

Typical Applications

Applications-of-piezoelectric-ceramic-elements-in-beauty-devices

This piezoelectric ceramic element is exquisitely suited for use in ultrasonic beauty devices, particularly in skin scrubbing tools. It efficiently generates ultrasonic waves that penetrate deep into the skin, aiding in the removal of impurities and promoting a clearer complexion. Perfect for both professional beauty salons and personal home care routines, this advanced technology supports healthy skin rejuvenation and deep cleansing, delivering superior results for a radiant appearance.
