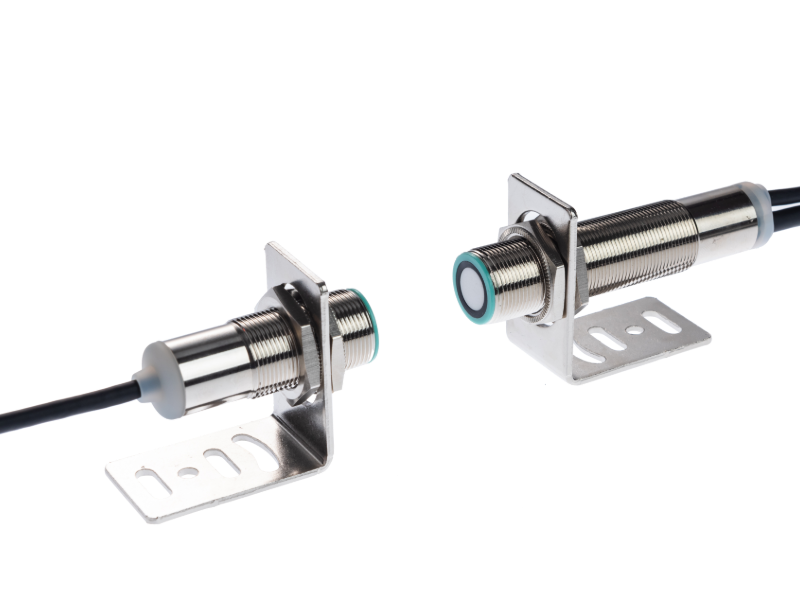

  1. Ultrasonic single:double sheet detection sensor-ISUDB60-18GM75-01

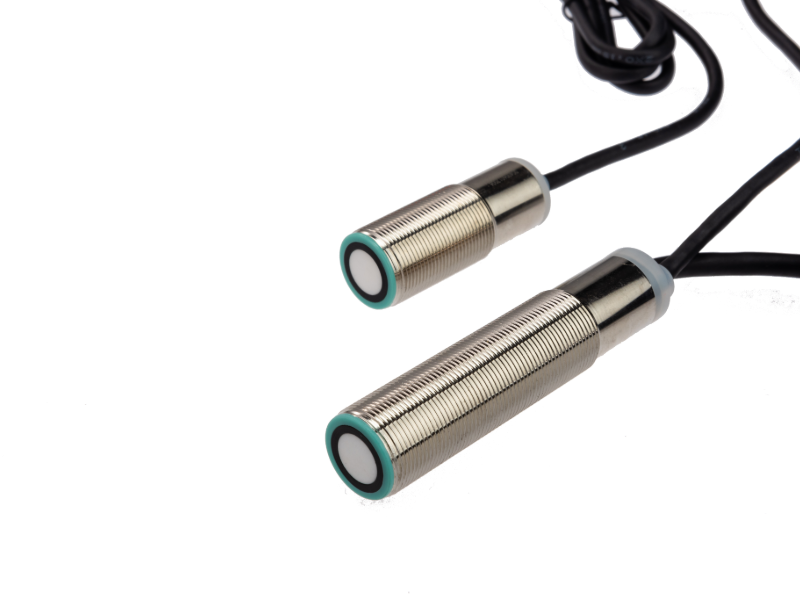

  2. Ultrasonic single:double sheet detection sensor-ISUDB60-18GM75-02

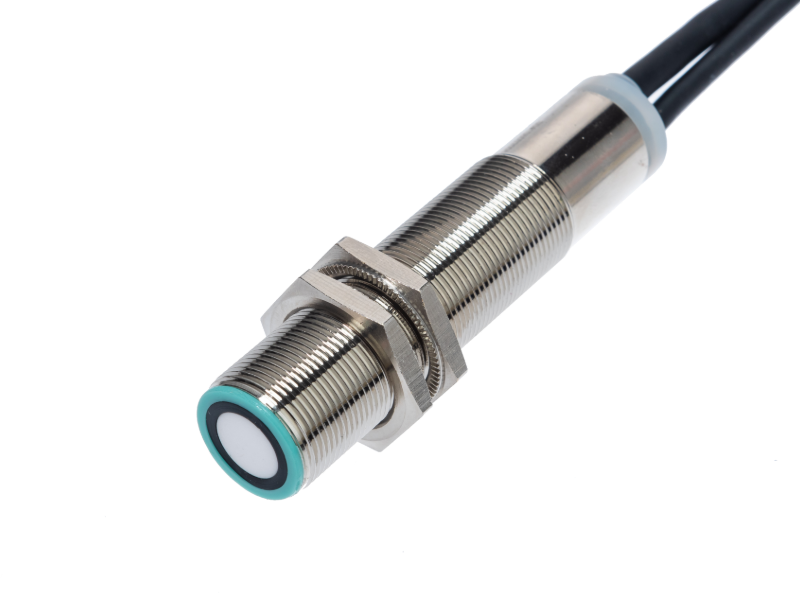

  3. Ultrasonic single:double sheet detection sensor-ISUDB60-18GM75-03

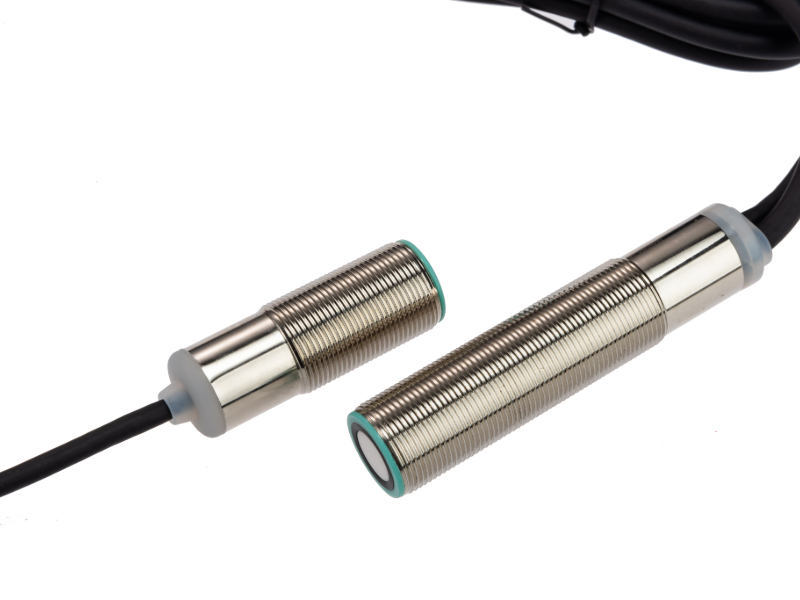

  4. Ultrasonic single:double sheet detection sensor-ISUDB60-18GM75-04

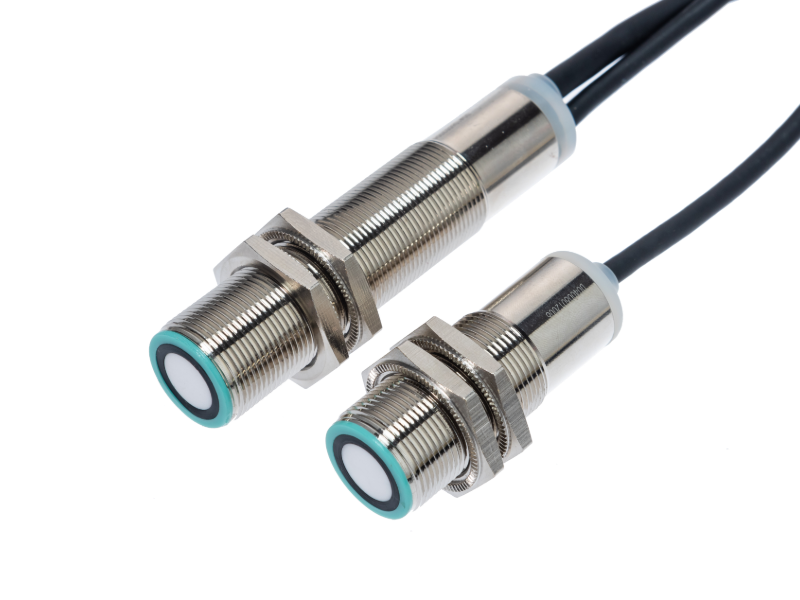

  5. Ultrasonic single:double sheet detection sensor-ISUDB60-18GM75-05

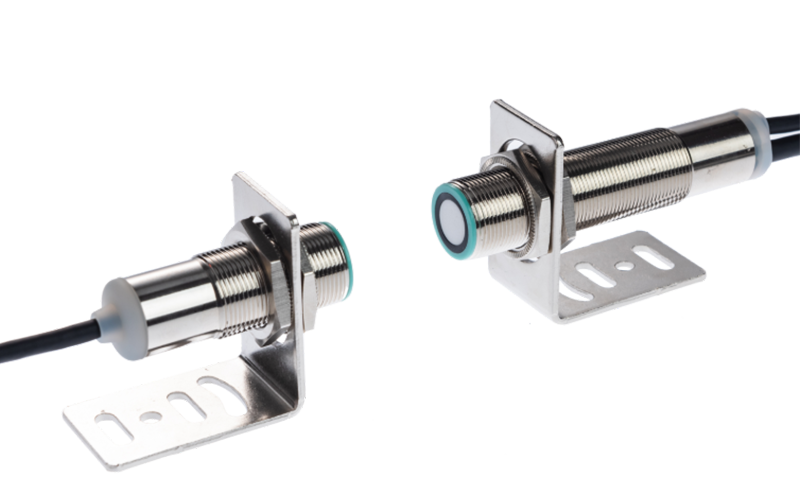

ISUDB60-18GM75

ISSR Ultrasonic Double Sheet Sensor | Multi-Material Detection for Automation

Features:

ISSR 200kHz Ultrasonic Single/Double Detection Sensor for Metal/Paper/Plastic Separation

  • Universal Material Compatibility: Expertly detects Paper (70-300g), Plastic, Metal Foils (down to 0.05mm), and Transparent Films without recalibration for color or brightness changes
  • Intelligent Teach-in Calibration: Features a user-friendly learning mode via remote cable (Teach-in) to adapt to specific material thicknesses (e.g., Silicon wafers, Glass), ensuring <1% false alarm rates
  • Robust Industrial Design: Housed in a nickel-plated brass M18 shell with IP67 protection, offering immunity to dust, oil, and electromagnetic interference (EMC compliant GB/T17626)
  • High-Speed Response: Delivers rapid detection with ~17ms response time for single sheets, enabling high-throughput processing in printing and packaging lines
  • Versatile Output Logic: Available in multiple configurations (NPN/PNP, NO/NC) to seamlessly integrate with existing PLC systems for Missing, Single, and Double sheet status indication
  • Smart Visualization: Equipped with a tri-color LED status indicator (Green/Single, Red/Double, Yellow/Air) for immediate visual diagnostics and troubleshooting

Downloads Manual:

Share your love

Product Information

ISUDB60-18GM75

Ultrasonic Double Sheet Sensor | Multi-Material Detection for Automation

Ultrasonic Double Sheet Sensor, Non-contact Double Feed Detection, PCB Loading Sensor, Ultrasonic Through-beam Sensor, Double Sheet Monitor, Packaging Automation Sensor, Clear Object Detection

View More Other Products

The ISUDB60-18GM75 Series Ultrasonic Double Sheet Sensor is a precision industrial instrument designed to prevent damage and downtime caused by double-feeding in automated machinery. Housed in a standard M18 threaded nickel-plated brass casing, this sensor utilizes high-frequency ultrasonic waves to penetrate materials and analyze energy attenuation. Unlike optical sensors, the sensor is immune to ink dust, ambient light, and material color, making it the ideal solution for processing black paper, transparent films, and reflective metal sheets.

Engineered for versatility, the ISUDB60-18GM75 offers multiple output configurations (NPN/PNP, NO/NC) to integrate seamlessly with any PLC system. It features built-in LED indicators for immediate visual status feedback (Air/Single/Double) and short-circuit protection. Whether you are handling thin papers in offset printing or complex PCBs in electronics assembly, the sensor provides the reliability required for zero-defect manufacturing. Its Teach-in input allows for custom sensitivity adjustments, ensuring precise detection even with challenging materials like multi-layer cardboard or solar battery plates.

Specification

Model ISUDB60-18GM75-3E0-VC
ISUDB60-18GM75-3E1-VC 		ISUDB60-18GM75-3E2-VC
ISUDB60-18GM75-3E3-VC
Detection Range 20...60 mm 20...60 mm
Transducer Frequency Approx. 200 kHz Approx. 200 kHz
Operating Voltage 18...30 V DC, 10% Vpp 18...30 V DC, 10% Vpp
No-load Current ≤50mA ≤50mA
Output Type 3E0: 3 x NPN, NO
3E1: 3 x NPN, NC 		3E2: 3 x PNP, NO
3E3: 3 x PNP, NC
Rated Operating Current 3×100mA
(Short-circuit / Overload protected)		 3×100mA
(Short-circuit / Overload protected)
Response Delay Single sheet: approx. 17ms
Air: approx. 17ms
Double sheet: approx. 52ms 		Single sheet: approx. 17ms
Air: approx. 17ms
Double sheet: approx. 52ms
Ambient Temperature 0℃...60℃ 0℃...60℃
Storage Temperature -40℃...85℃ -40℃...85℃
EMC Standards GB/T17626.2-2006
GB/T17626.4-2008		 GB/T17626.2-2006
GB/T17626.4-2008
Protection Degree IP67 IP67
Connection VC, 6-core cable, 2m VC, 6-core cable, 2m

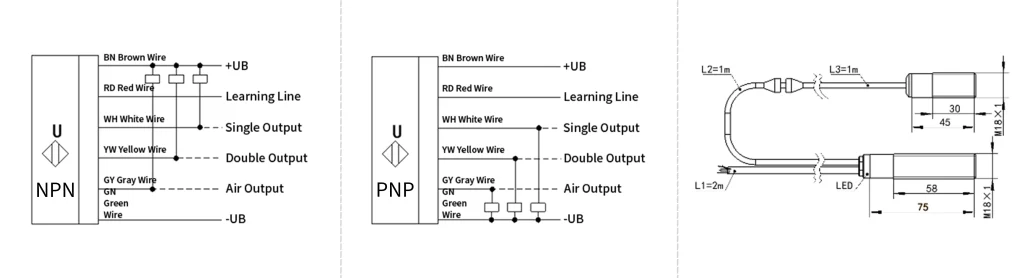

Electrical Connection / Product Size Line Drawing

Typical Applications

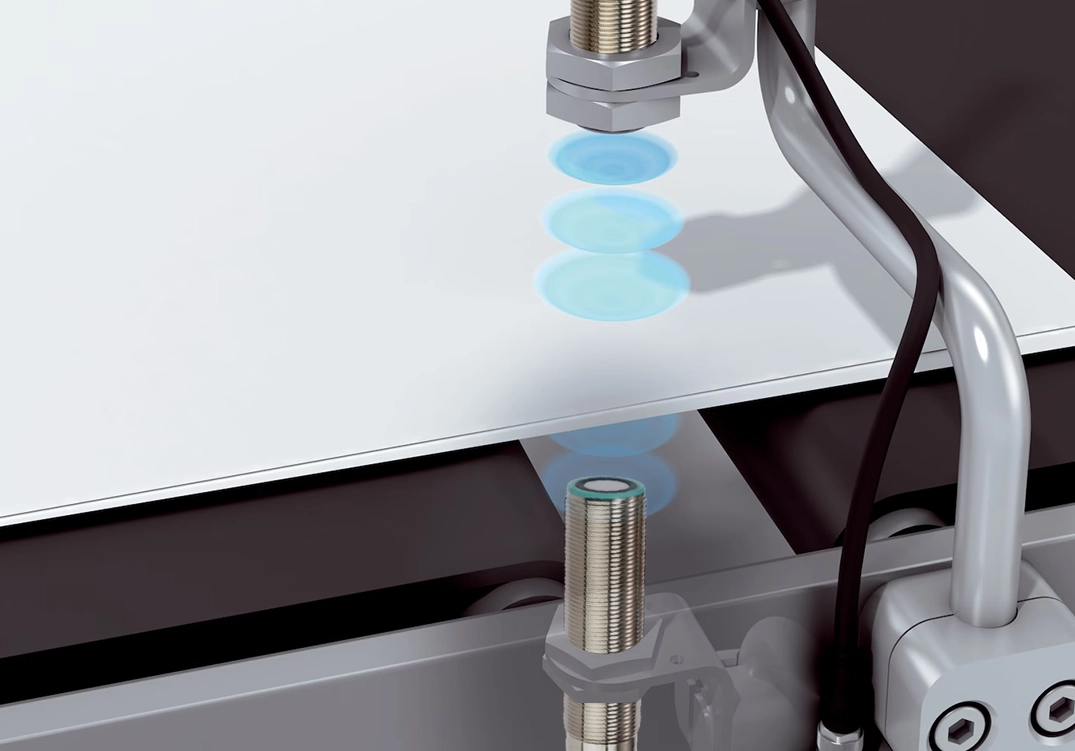

double sheet detection sensor-ISUDB60-18GM75

In the commercial printing industry, the accidental feeding of two sheets (a "double feed") into the grippers and cylinders can cause catastrophic damage to the rubber blanket and mechanical gears, leading to expensive repairs and significant downtime. How the ISUDB60-18GM75 Solves This: The ISUDB60-18GM75 Ultrasonic Double Sheet Sensor is mounted at the feeder section of the press. As paper passes between the transmitter and receiver: Single Sheet: The sensor detects a specific level of sound wave attenuation and signals the machine to continue. Double Sheet: If two sheets stick together (due to static or humidity), the air pocket between them blocks the sound waves. The sensor detects this drastic signal drop within milliseconds (approx. 52ms for double) and triggers an immediate emergency stop or activates a diversion gate to eject the double sheet. Why it's better: Unlike capacitive or optical sensors, the sensor works perfectly on foil-stamped paper, dark/black cardstock, and clear plastic substrates, ensuring continuous operation regardless of the print job substrate.
