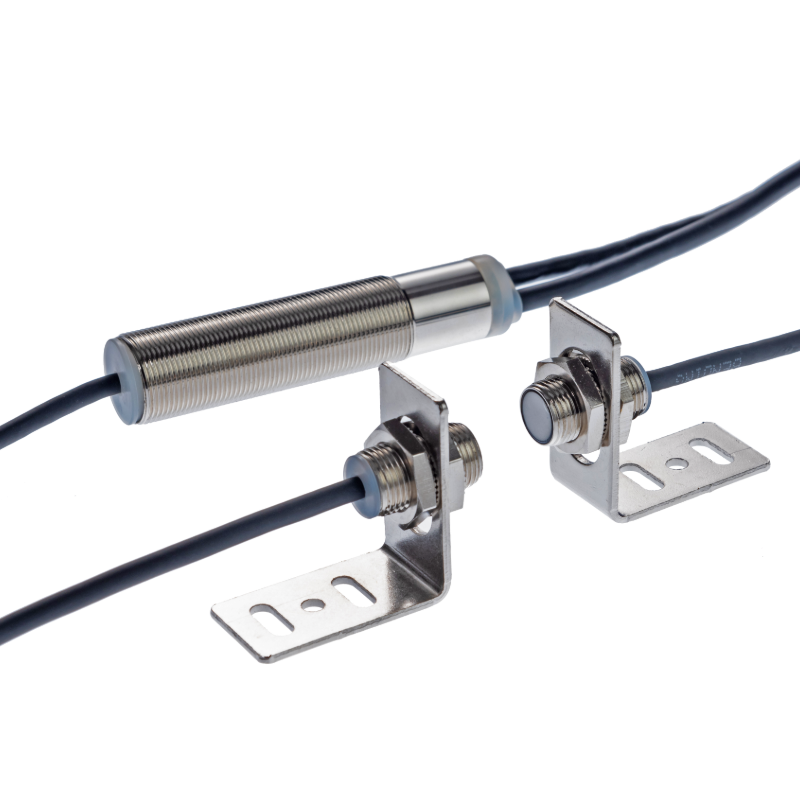

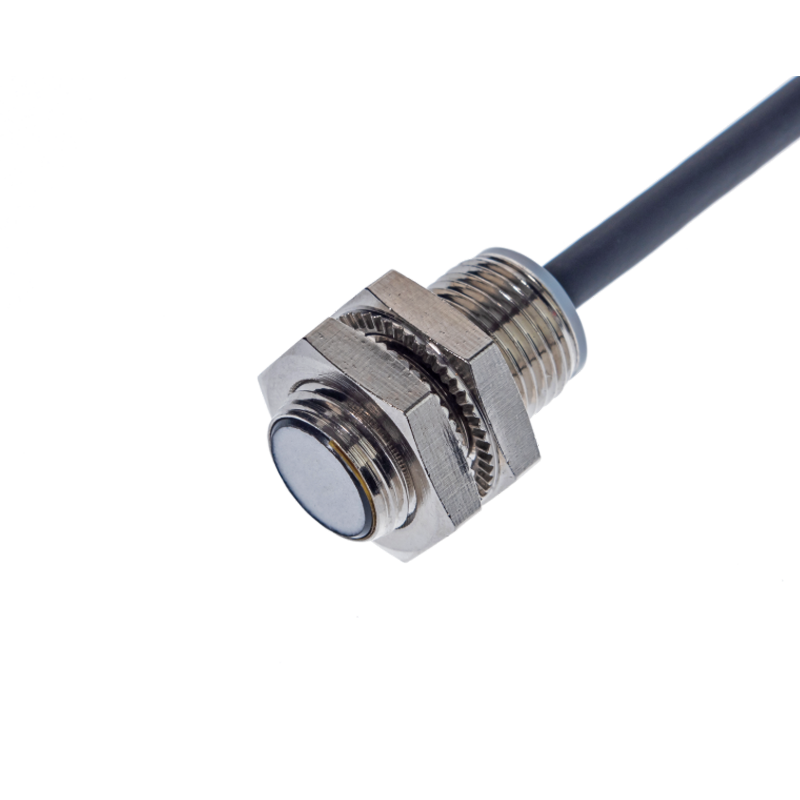

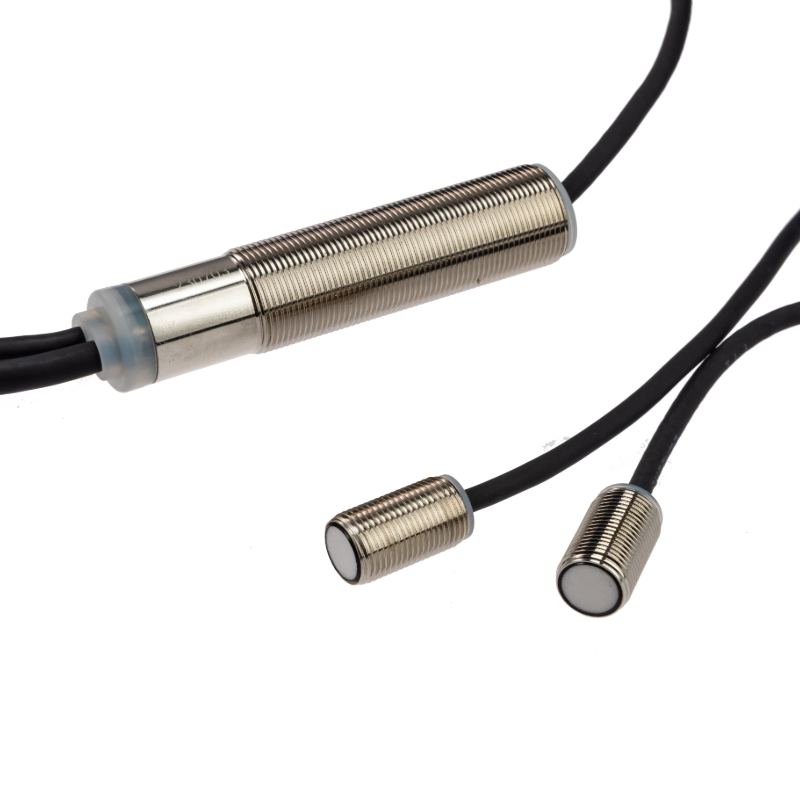

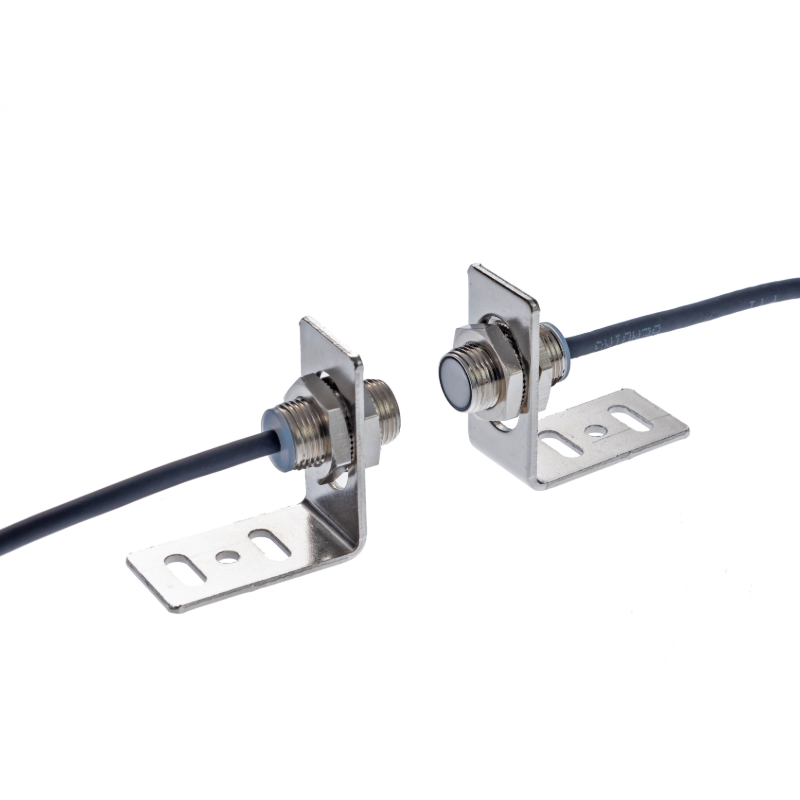

ISUDB40-12GM75

ISSR M12 Ultrasonic Double Sheet Detection Sensor

Features:

ISSR 300kHz High-Precision Ultrasonic Dual-Sheet Detection Sensor for Metal-Paper Separation

  • NPN/PNP, normally closed/normally open, multiple output modes
  • For detecting blank, single sheet, and overlapping materials
  • Non-contact detection, capable of measuring various materials
  • Insensitive to the color and brightness of the measured object
  • Measurement object can be calibrated
  • Serial port is upgradeable

Downloads Manual:

Share your love

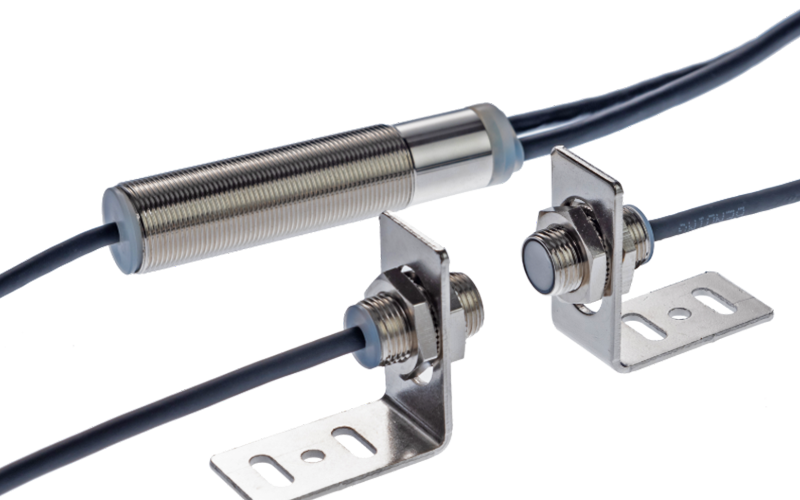

Product Information

ISUDB40-12GM75

ISSR M12 Ultrasonic Dual-Tension Detection Sensor

It boasts excellent anti-interference performance, stable and reliable detection, truly achieving "material-insensitive, more accurate, and more environmentally adaptable" results.

View More Other Products

The 300kHz ultrasonic double-sheet sensor is a high-precision, non-contact material overlap detection device. Utilizing approximately 300kHz high-frequency ultrasonic technology, it accurately identifies empty, single-sheet, double-sheet, and overlapping states. It is insensitive to color, brightness, and surface material, and supports the detection of various materials including paper, film, metal foil, and lithium battery electrode sheets. Supporting multiple output modes such as NPN/PNP normally open/normally closed, it is compatible with various industrial control systems and widely used in automated equipment for printing and packaging, label bonding, automatic feeding, lithium battery stacking, metal film slitting, and electronic mounting. It effectively prevents double-sheet feeding or dry-firing, improving production efficiency and stability.

Specification

Model ISUDB40-12GM75-3E0-VC
ISUDB40-12GM75-3E1-VC		 ISUDB40-12GM75-3E2-VC
ISUDB40-12GM75-3E3-VC
Detection Range 20 ~ 40mm 20 ~ 40mm
Transducer Frequency Approx. 300kHz Approx. 300kHz
Operating Voltage 18 ~ 30 V DC，10%Vpp 18 ~ 30 V DC，10%Vpp
No-Load Current ≤50mA ≤50mA
Output Type 3E0: 3 NPN, Normally Open
3E1: 3 NPN, Normally Closed 		3E0: 3 PNP, Normally Open
3E1: 3 PNP, Normally Closed
Rated Operating Current 3×100mA; Short circuit protection/overload protection 3×100mA; Short circuit protection/overload protection
Response Delay Approx. 10ms Approx. 10ms
Operating Temperature 0℃ ~ 60℃ 0℃ ~ 60℃
Storage Temperature -40℃ ~ 85℃ -40℃ ~ 85℃
Electromagnetic Compatibility GB/T17626.2-2006
GB/T17626.4-2008 		GB/T17626.2-2006
GB/T17626.4-2008
Protection Class IP67 IP67
Connection Method VC, Six-Core Cable, 2 Meters VC, Six-Core Cable, 2 Meters

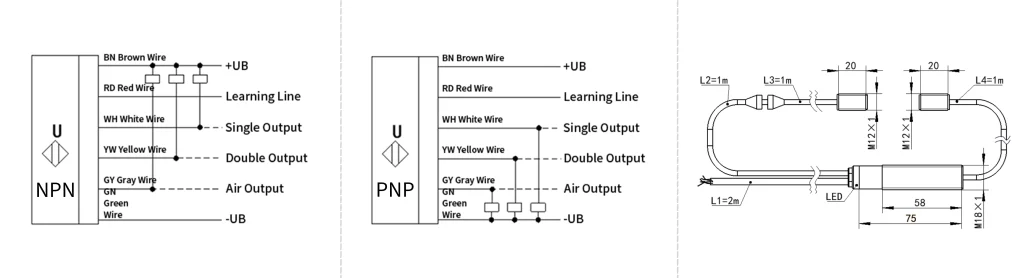

Electrical Connection / Product Size Line Drawing

Applications

ISUDB40-12GM75 ISSR M12 Ultrasonic Dual-Tension Detection Sensor

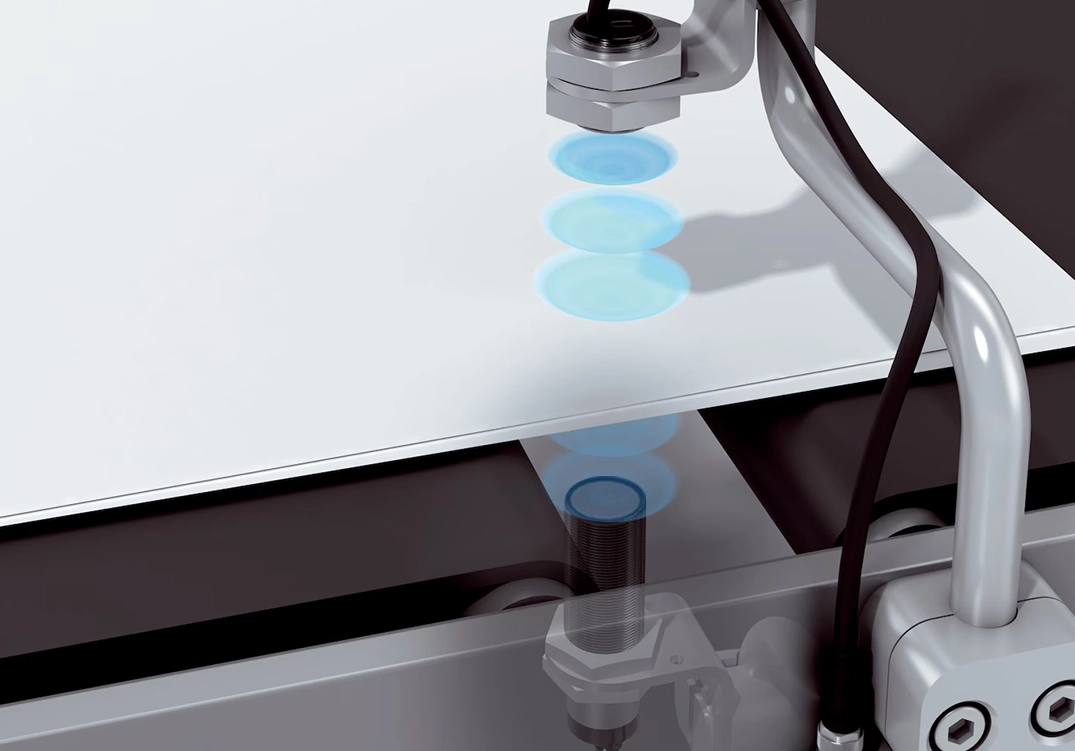

The M12 double-sheet detection sensor can accurately detect the presence of double or multiple sheets being fed together during the paper delivery process. By monitoring changes in paper thickness or optical signals in real time, it can immediately output a control signal when an anomaly is detected, triggering an alarm or stopping the machine, thereby effectively avoiding paper jams, printing errors, and equipment damage.
