Customized Humidifier Piezoelectric Ceramic Atomizing Plate Driver Circuit Board
Piezoelectric Atomizer Driver,Ultrasonic Mist Maker Circuit,Custom PCB Design,Medical Nebulizer Driver,High Efficiency Atomization,Smart Humidifier Control
Customized Piezoelectric Ceramic Atomizing Plate Driver Circuit Board for Humidifiers
High-Efficiency Ultrasonic Driver Solutions for Precision Atomization
Upgrade your humidification systems with our Customized Piezoelectric Ceramic Atomizing Plate Driver Circuit Board. Engineered for stability and efficiency, this driver module is the core power solution for medical nebulizers, industrial humidifiers, and smart home aromatherapy devices. unlike generic off-the-shelf PCBs, our solution offers deep customization to match your specific resonance frequency and structural constraints.
Core Technology & Performance Advantages
Achieving consistent mist output requires precise frequency control. Our driver boards utilize advanced Auto-Sweep Frequency Tracking Technology. This ensures the circuit automatically adjusts to the resonant frequency shift of the piezoelectric ceramic element caused by temperature changes or water load, preventing power loss and component damage.
High Energy Conversion: Optimized circuit design achieves >95% conversion efficiency, reducing heat generation and extending component life.
Intelligent Protection: Integrated dry-burn protection, over-current protection, and automatic water level detection logic.
EMC Compliance: Designed with EMI/EMC suppression to meet international export standards (CE/FCC ready).
Applications
Medical Nebulizers: Precision low-voltage drivers for handheld mesh nebulizers.
Smart Home Humidifiers: Integration with IoT modules and ambient lighting.
Industrial Preservation: High-power driver arrays for supermarket fresh food misting.
Beauty & Skincare: Nano-mist sprayers for facial hydration.
Why Partner With ISSR Sensor?
As a specialized manufacturer, we control the entire quality process. Every atomizing driver board undergoes rigorous aging tests and frequency calibration before shipment. We don't just sell boards; we provide a complete Atomization Solution including matched ceramic plates and technical debugging support.
Specification
| Function Item | Sample Function |
|---|---|
| Button Switch K1 | Short Press: Switch between long spray (3.5-hour timer), intermittent spray (humidifier sprays for 4 seconds, stops for 6 seconds, 3.5-hour timer), and power off Long Press: Switch between seven-color breathing, color fixation, and light off Note: Turns off spray and light when timer ends |
| Color Change Sequence | Green-Yellow-Blue-Green-Yellow-Light Blue-Blue-Yellow-Light Blue-Yellow |
| Charging Input Interface | Micro female connector |
| Charging Input Voltage | 5V |
| Button Press Indicator | Flashes white light twice |

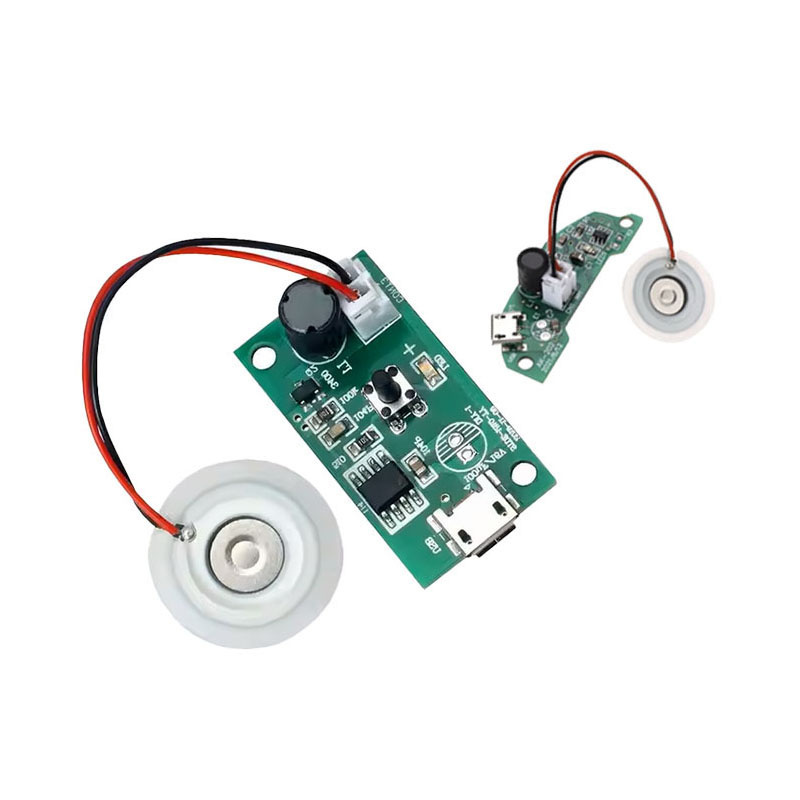

PCB Detail
Typical Applications
Customized atomizing plate driver circuit boards are widely used in home, office, and personal care humidifiers, stably driving microporous atomizing plates to achieve a fine and uniform atomization effect. With flexible mist and light controls, it creates a comfortable and humidified air environment for bedrooms, living rooms, office desks, or care spaces, providing a quiet, gentle, and customizable humidification experience.
