ISUB1000-18GM75A-VC
1M 200khz 90-degree right-angle elbow IP67 protective ultrasonic ranging sensor suitable for industrial automation
Ultrasonic Distance Sensor, Right Angle Design, IP67 Waterproof, Minimal Blind Zone, Dual-Point Learning, 4–20 mA Analog Output, Industrial Automation, Fast Response, High Repeatability, Easy Firmware Upgrade

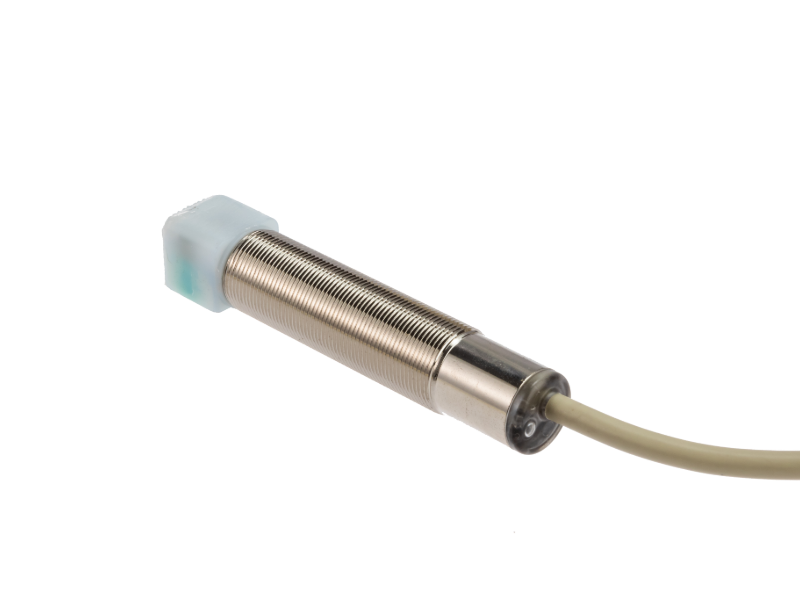

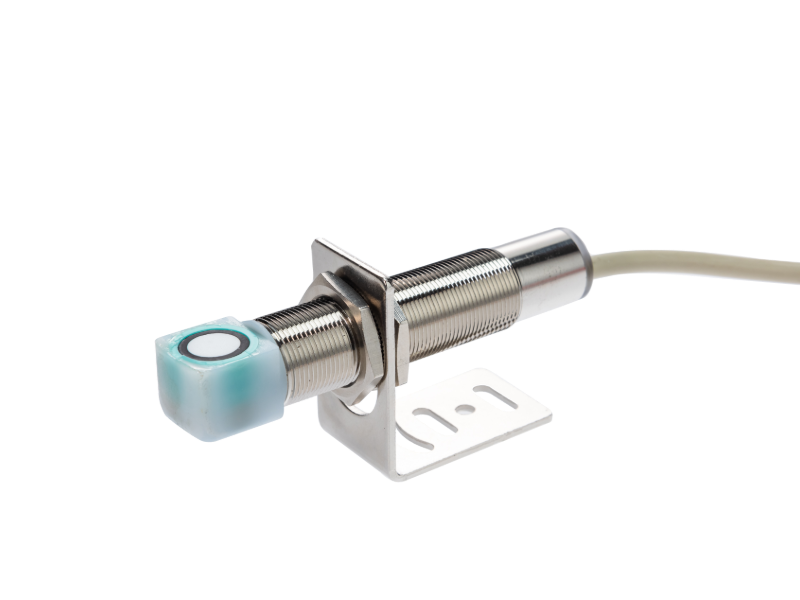

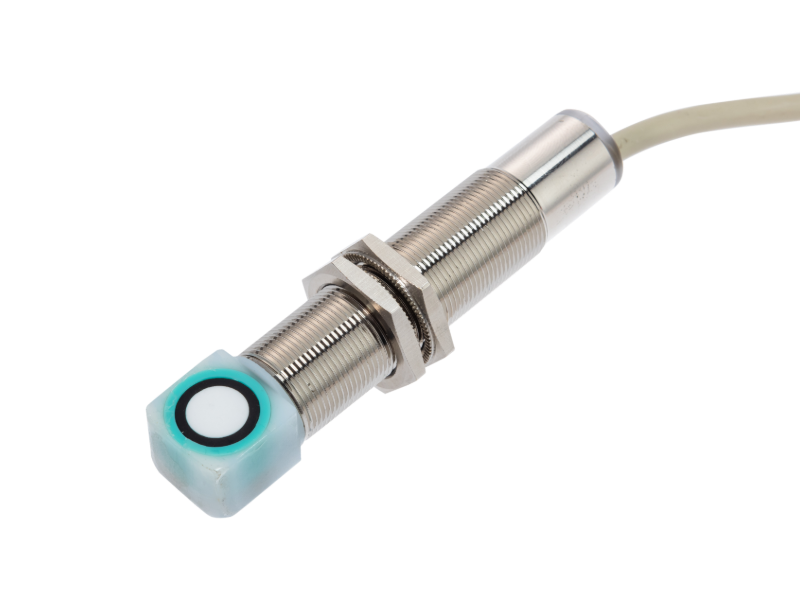

As industrial automation demands greater flexibility and precision, the ISUB1000-18GM75A-VC Ultrasonic Distance Sensor emerges as the ultimate solution for tight and demanding spaces. Engineered with a compact 90-degree bend form factor, this innovative Right Angle Ultrasonic Sensor allows for seamless installation in confined environments where traditional straight-housing sensors cannot fit. Enclosed in a robust M18 housing with an IP67 protection rating, it thrives in harsh, dusty, and moisture-rich conditions, making it an indispensable asset for modern production lines.
Advanced Measurement Capabilities
Delivering precise, non-contact measurement, this reliable 1000mm Ultrasonic Level Sensor offers a versatile detection range from 60 mm to 1000 mm (adjustable from 70 mm). Its exceptional accuracy is driven by a minimal blind zone of just 60 mm and a highly focused ±7° beam angle. Operating as a high-performance 200kHz Ultrasonic Level Sensor, the device guarantees rapid response times (≤100 ms) and an impressive fine resolution of 0.5 mm. Furthermore, it maintains excellent linearity and repeatability—both rated at ±1% of full scale—ensuring consistent, high-precision data capture.
Key Features & Benefits:
- Versatile Outputs & Easy Setup: Features an industry-standard 12-30V DC operating voltage with a 4–20 mA analog output. It also supports configurable dual-point learning (A1/A2) for effortless integration into diverse PLC and industrial control systems.
- Industrial Durability: Built to withstand extreme conditions, it operates flawlessly in temperatures ranging from -25°C to 70°C. Strict EMC compliance (GB/T17626.2-2006 / GB/T17626.4-2008) ensures stable, interference-free performance.

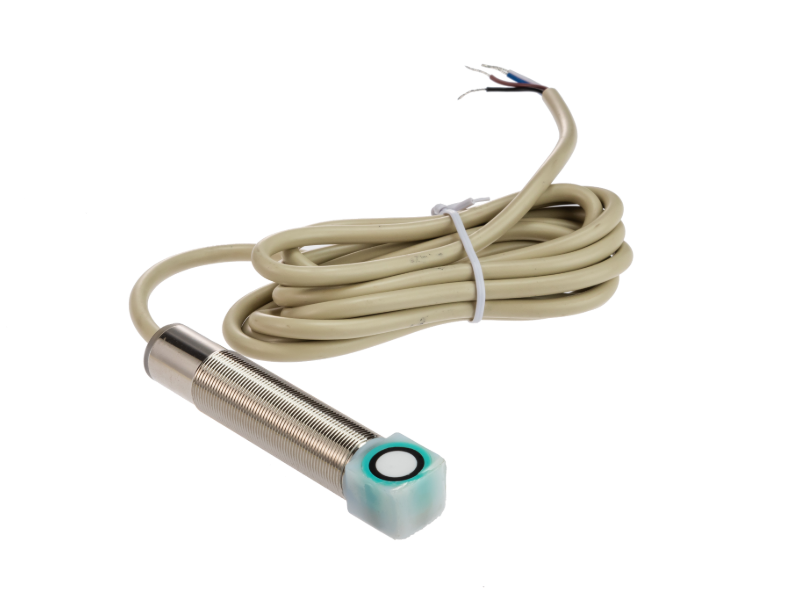

- Future-Proof Maintenance: Comes equipped with a pre-wired 2-meter 4-core cable and supports firmware upgrades via a serial interface, ensuring long-term adaptability for evolving automation needs.
Typical Applications:
- Continuous liquid level detection in transparent, semi-transparent, and opaque containers.
- High-speed filling line monitoring within the food, beverage, pharmaceutical, and personal care sectors.
- Presence detection and distance measurement on complex, space-constrained conveyor systems.
Specification
| Model | ISUB1000-18GM75A-I-VC |
|---|---|
| Detection Range | 60…1000 mm |
| Adjustment Range | 70…1000 mm |
| Blind Zone | 60 mm |
| Standard Target Plate | 100 mm × 100 mm |
| Beam Angle | ±7° |
| Transducer Frequency | Approx. 200 kHz |
| Response Delay | ≤100 ms |
| Operating Voltage | 12…30 V DC, 10% Vpp |
| No-Load Current | ≤35 mA |
| Output Type | 4–20 mA |
| Resolution | 0.5 mm |
| Linearity | ±1% of full scale |
| Repeatability | ±1% of full scale |
| Rated Operating Current | / |
| Load Impedance | ≤300 Ω |
| Hysteresis Range | / |
| Temperature Drift | ±2% of full scale |
| Operating Temperature | –25…70 °C |
| Storage Temperature | –40…85 °C |
| EMC Compliance | GB/T 17626.2-2006; GB/T 17626.4-2008 |
| Protection Rating | IP67 |
| Connection | 4-core cable, 2 m |
Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications
Ideal for Liquid Level Monitoring & Confined Spaces This IP67-protected ultrasonic distance sensor with an elbow (right-angle) design is specifically engineered for non-contact liquid level detection inside transparent or semi-transparent containers on conveyor belts. Its minimal blind zone and high repeatability ensure stable and accurate detection even in confined installation spaces, making it ideal for filling and level monitoring applications in the food & beverage, pharmaceutical, and personal care industries. Versatility for Other Industries: The unique 90° low-profile design also solves installation challenges in broader sectors: Smart Agriculture & Tanks: Perfect for monitoring nutrient solution levels in hydroponics or water tanks where vertical clearance above the lid is limited. The sensor can be mounted flush against the tank top. Smart Logistics & Conveyors: In automated warehouses, it excels at side-mounting on conveyor rails to detect passing trays or boxes without protruding into the aisle, ensuring a streamlined workflow. With its 3-in-1 switchable output (Analog/NPN/TTL), this single sensor adapts seamlessly to both continuous level measurement and precise object detection tasks.
