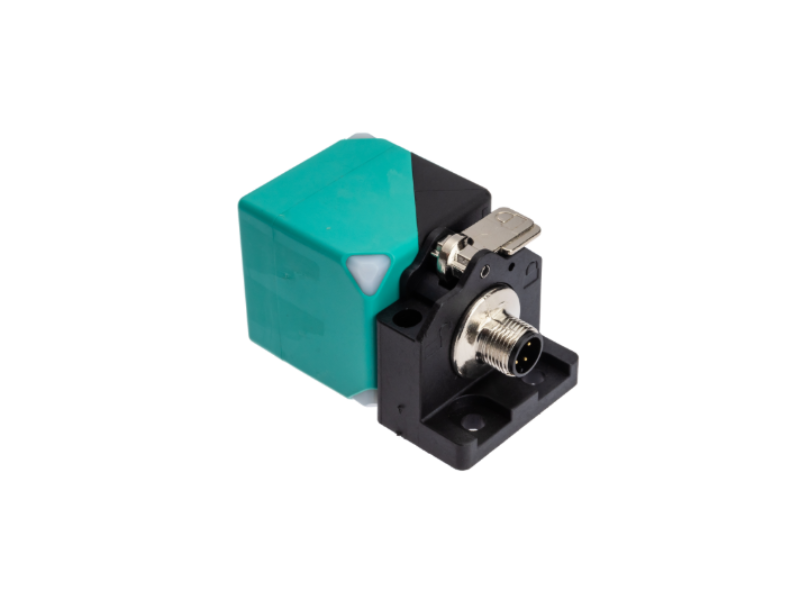

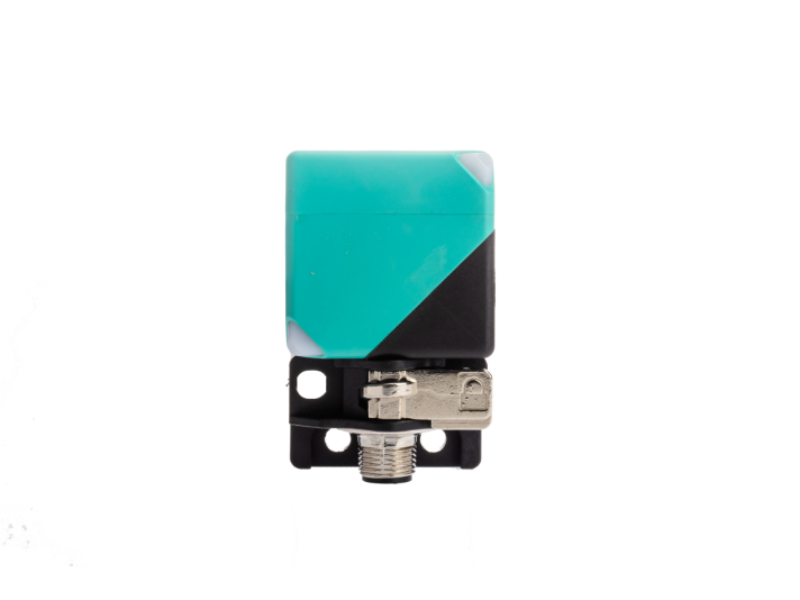

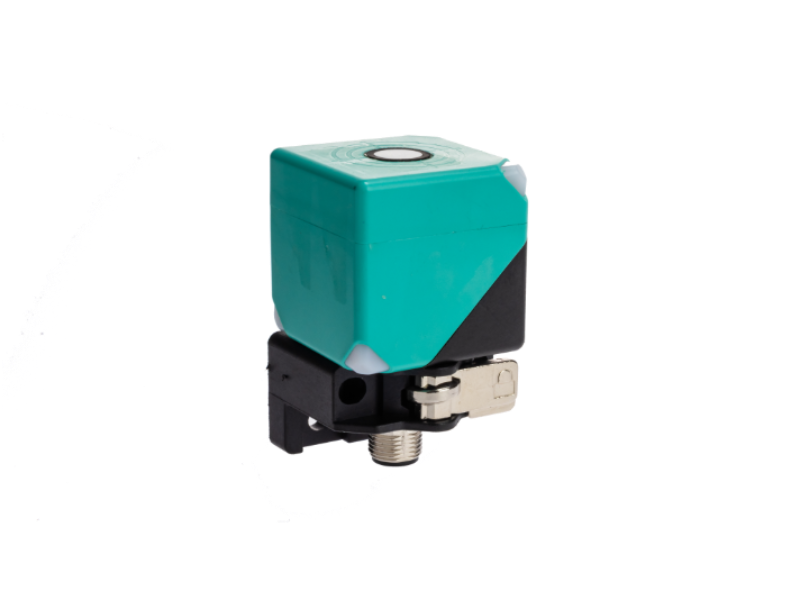

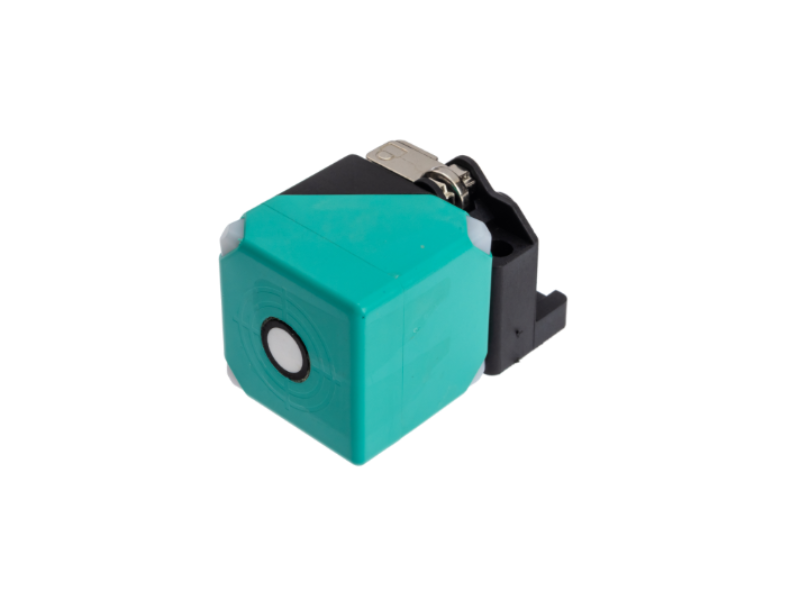

ISUB1000-F40
square ultrasonic ranging sensor with adjustable direction and range, and synchronization function
It has a small blind zone, supports rotational installation, and features temperature compensation and synchronization functions.
The ISUB1000-F40 is a versatile, high-precision Industrial Ultrasonic Distance Sensor engineered to meet the rigorous demands of modern industrial automation. Offering a robust detection range of 60mm to 1000mm and operating at a stable 200kHz frequency, this sensor serves as a critical component for automated logistics, fluid management, and reliable object detection.
Designed to operate seamlessly as both a continuous measuring device and a high-performance Square Ultrasonic Proximity Sensor, it provides exceptional installation flexibility and detection stability that standard cylindrical sensors simply cannot match.
The Game-Changing Feature: Axially Rotatable Head
What sets the ISUB1000-F40 apart is its innovative design as an Adjustable Head Ultrasonic Sensor. The sensor emits an asymmetric sound cone, meaning the beam widths on the X and Y axes are different. To leverage this, the sensing head is axially rotatable.
This makes it a highly sought-after Rotatable Beam Ultrasonic Sensor, allowing engineers to easily rotate the probe to align the optimal detection field with the target application—completely eliminating the need to redesign or replace existing mounting brackets.
Specification
| Item | ISUB1000-F40-I-V15 ISUB1000-F40-U5-V15 ISUB1000-F40-U10-V15 |
ISUB1000-F40-E4-V15 ISUB1000-F40-E5-V15 ISUB1000-F40-E8-V15 ISUB1000-F40-E9-V15 |
ISUB1000-F40-TTL-V15 |
|---|---|---|---|
| Detection Range | 60…1000 mm | 60…1000 mm | 60…1000 mm |
| Adjustable Range | 70…1000 mm | 70…1000 mm | 70…1000 mm |
| Blind Zone | 60 mm | 60 mm | 60 mm |
| Standard Target Plate | 100 mm × 100 mm | 100 mm × 100 mm | 100 mm × 100 mm |
| Beam Angle | ±7° | ±7° | ±7° |
| Transducer Frequency | Approx. 200 kHz | Approx. 200 kHz | Approx. 200 kHz |
| Response Time | ≤100 ms | ≤100 ms | ≤100 ms |
| Supply Voltage | I: 12–30 V DC U5: 9–30 V DC U10: 15–30 V DC |
E4/E5/E8/E9: 9–30 V DC | 5–30 V DC |
| No-Load Current | ≤30 mA | ≤30 mA | ≤30 mA |
| Output Type | I: 4–20 mA U5: 0–5 V U10: 0–10 V |
E4: NPN E5: PNP E8: NPN Hysteresis Mode E9: PNP Hysteresis Mode |
TTL/RS232 Interface |
| Resolution | 0.5 mm | 0.5 mm | 0.5 mm |
| Linearity | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Repeatability | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Rated Operating Current | — | 200 mA (Short-circuit protected) | — |
| Load Impedance | U5/U10: ≥1 kΩ I: ≤300 Ω |
— | — |
| Hysteresis Range | — | 1% of set switching distance | — |
| Temperature Drift | ±2% F.S. | ±2% F.S. | ±2% F.S. |
| Operating Temperature | –25 °C to +70 °C | –25 °C to +70 °C | –25 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C | –40 °C to +85 °C | –40 °C to +85 °C |
| EMC Compliance | GB/T 17626.2-2006 GB/T 17626.4-2008 |
GB/T 17626.2-2006 GB/T 17626.4-2008 |
GB/T 17626.2-2006 GB/T 17626.4-2008 |
| Protection Rating | IP65 | IP65 | IP65 |
| Connection | V15 Connector (M12×1), 5-pin | V15 Connector (M12×1), 5-pin | V15 Connector (M12×1), 5-pin |
Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications
The ISUB1000-F40 is precision-engineered with an axially rotatable sensing face, specifically designed to harness its asymmetric sound cone characteristics. Because the ultrasonic beam width differs significantly between the X and Y axes, users can seamlessly rotate the probe to match the optimal detection field with the target geometry—all without the hassle of remounting the sensor. This flexibility is a game-changer for logistics conveyors. By aligning the wider beam axis, you can cover the entire belt width for reliable object presence detection. Conversely, aligning the narrower axis enables the precise separation and dimensioning of closely spaced packages. Built for industrial stability, it guarantees reliable detection of challenging materials, including transparent films, jet-black items, and highly irregular surfaces.
