ISUB1000-18GM76-IUE-V25-AJ200
ISSR 200 kHz Ultrasonic Sensor 1m | 4-20mA/0-10V Sync IP67
200 KHz Ultrasonic Sensor, 1m Distance Measurement, 70-1000mm Range, 4-20mA Output, 0-10V Output, Sync Function, Dual Output, Push-Pull Switching Output, Output Mode Selection, Detection Range Setting, Restore Factory Settings, LED Status Indicators, Stainless Steel Housing, IP67, M12×1 5-Pin Connector, Industrial Automation, Object Detection

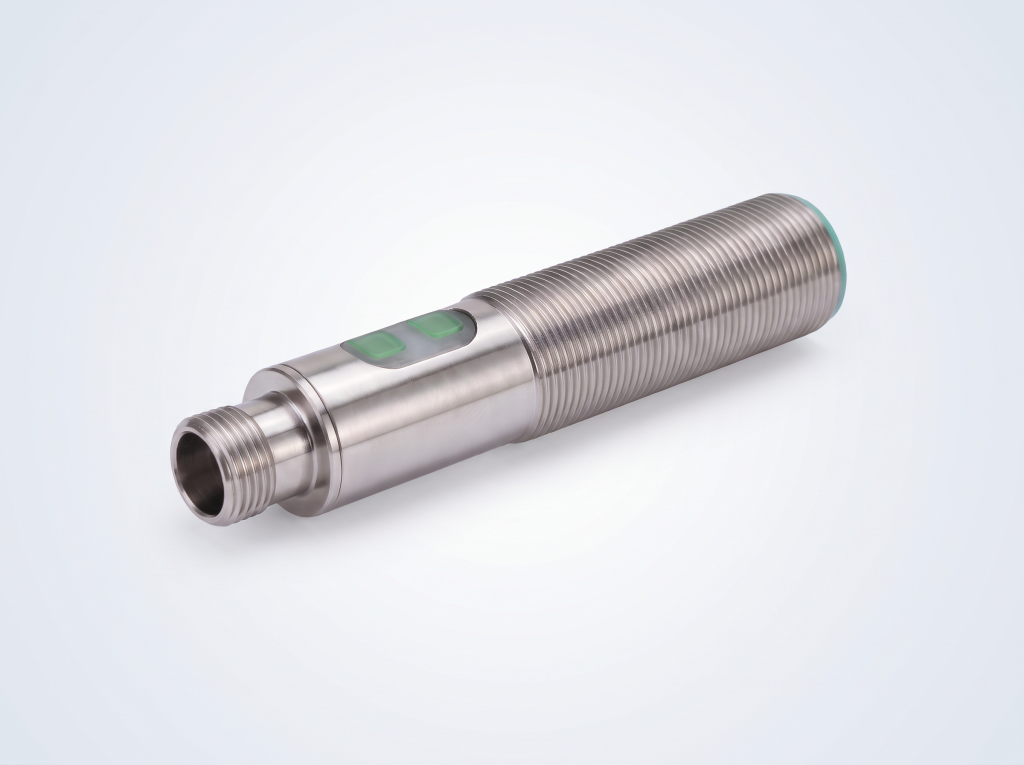

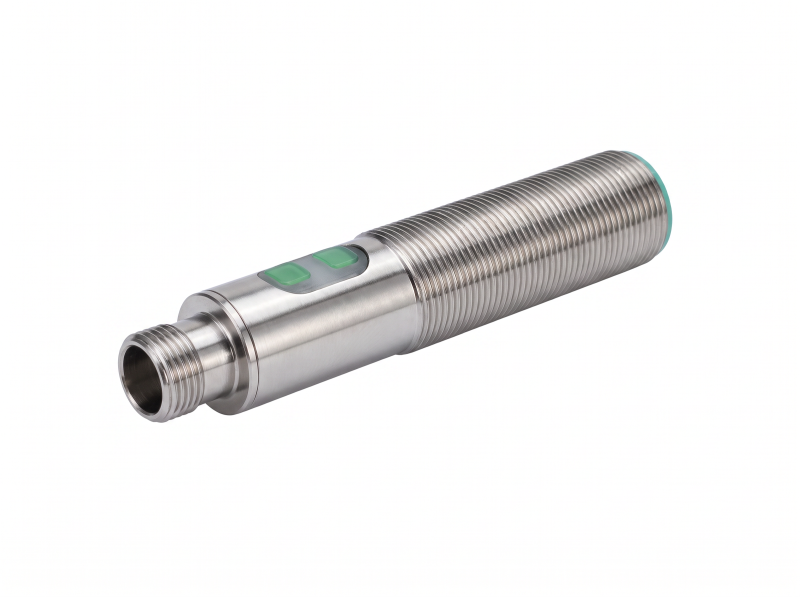

The ISSR 200 kHz ultrasonic sensor (ISUB1000-18GM76-IUE-V25-AJ200) from ISSR is designed for dependable 1 m ultrasonic distance measurement and industrial object/proximity detection. With a 70–1,000 mm detection range, it supports stable sensing across typical automation distances, while the 0–70 mm blind zone helps maintain consistent performance in real installations. If your application requires reliable detection up to 1 meter, this ISSR 200 kHz ultrasonic sensor delivers clear, repeatable results.
For flexible system integration, the sensor provides dual output options. You can select either 4–20 mA or 0–10 V analog output for continuous distance feedback, and you also get a push-pull switching output for direct control and discrete detection tasks. The switching output is supported with short-circuit protection and overload protection to help improve wiring safety and system reliability.
When multiple ultrasonic sensors operate near each other, measurement stability can be affected by mutual interference. This model includes a sync function to help improve consistency in multi-sensor industrial setups, making it suitable for packaging presence detection, material handling, and positioning/clearance monitoring.

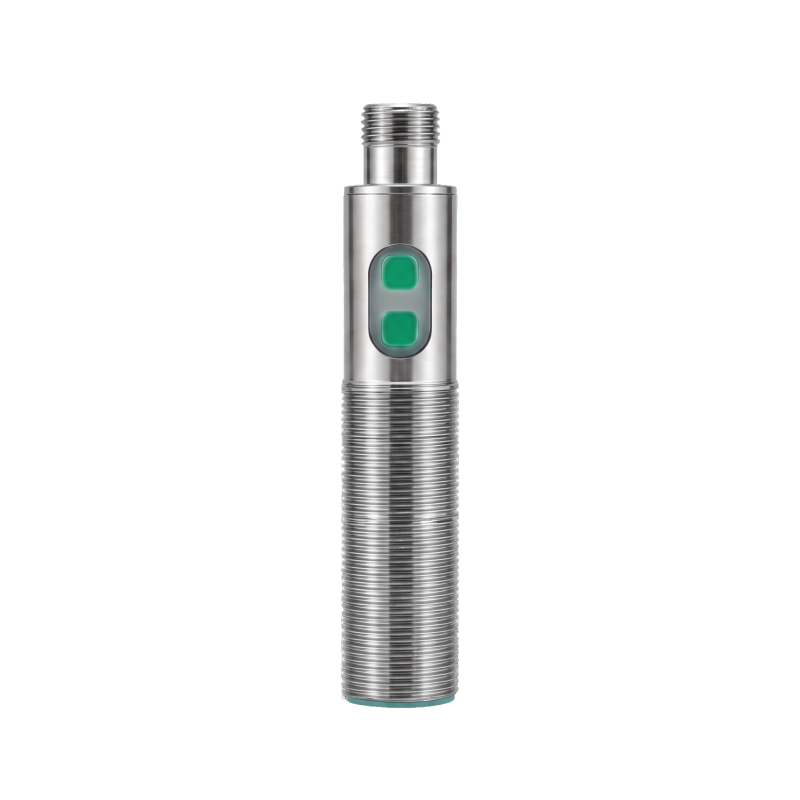

On-site operation is simplified with an on-device button function. Use the buttons to set the output mode, configure the detection range, and restore factory settings whenever needed. LED status indicators provide clear operating feedback for key states. Built for harsh environments, the ISSR 200 kHz ultrasonic sensor features a stainless steel housing, IP67 protection, operates from −25 to 70°C, and connects using a 5-pin M12×1 connector for robust field wiring.
Specification
| Model | ISUB1000-18GM76-IUE-V25-AJ200 |
|---|---|
| Detection Range | 70...1000 mm |
| Adjust Range | 90...1000 mm |
| Blind Zone | 0...70 mm |
| Standard Detection Plate | 100×100 mm |

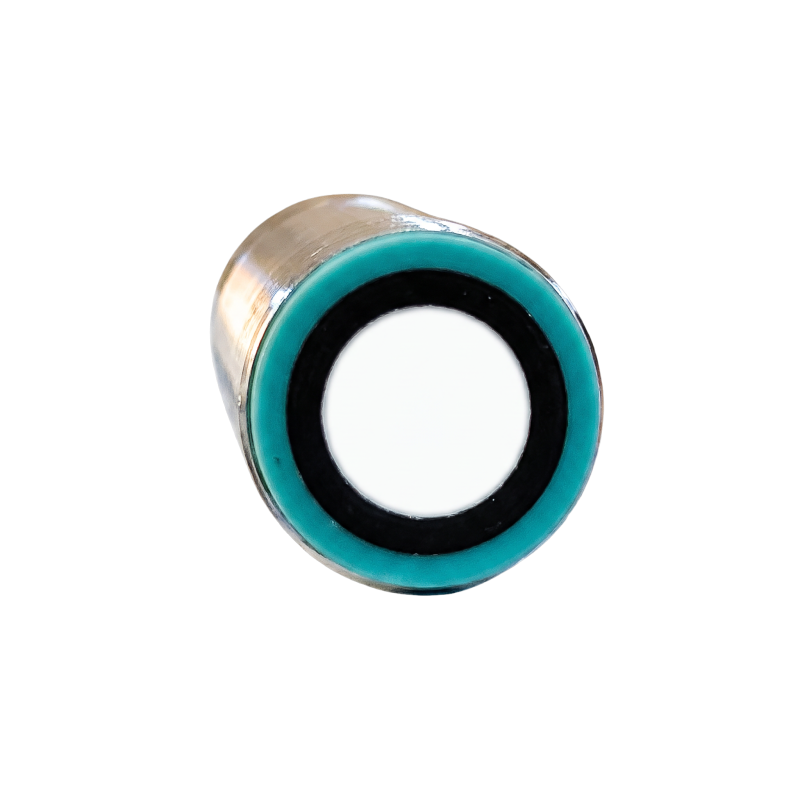

| Sensor Frequency | ~200 kHz |
| Response Delay | Default 56 ms, Min 28 ms |
| Measurement Cycle | ≥14 ms |
| Work Voltage | 12-30 V DC |
| No-Load Current | ≤60 mA |
| Power-On Delay | ≤300 ms |
| Interface | Semi-duplex UART |
| Memory | EEPROM (Write cycles: 300,000 times) |
| Buttons / On-Device Settings | T1: Switching output setting; T2: Analog output setting;
supports button operation for: output mode selection, detection range setting, restore factory settings |
| Switching Output | Push-pull output (short-circuit/overload protection) |
| Rated Switching Current | 200 mA |
| Switching Frequency | 10 Hz, adjustable to 23 Hz |
| Voltage Drop | ≤2.5 V |
| Repeat Accuracy (Switching) | ≤±0.3% of full-scale value |
| Hysteresis Range | 1% of set range (min 1.7 mm) |
| Shutdown Current | ≤0.5 mA |
| Analog Output | 4-20 mA or 0-10 V (selectable) |
| Load | I≤300 Ω; U≥1 kΩ |
| Resolution | Set range/4095, but ≥0.85 mm |
| Linearity | ±1% of full-scale value |
| Repeat Accuracy (Analog) | ±0.3% of full-scale value |
| Temperature Drift | Stabilizes within 10 min after power-on; deviation ≤±0.75% ; With temperature compensation off: 0.17%/K |
| Default Settings | A1=90 mm; A2=1000 mm
4-20 mA rising mode; window always open |
| Analog Characteristic | |
| Operating Temperature | -25...70 ℃ |
| Storage Temperature | -40...85 ℃ |
| EMC | GB/T17626.2-2006; GB/T17626.4-2008 |
| Standards | GB/T 14048.10 |

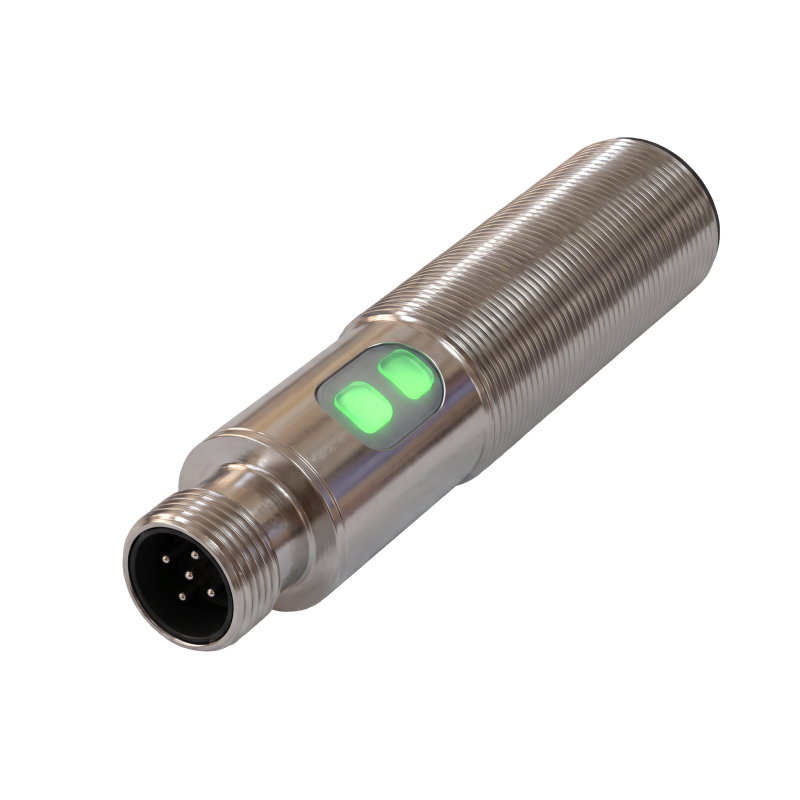

| Protection / Connection / Material | IP67; Connection: V25 connector (M12×1), 5-pin;
Housing material: stainless steel, epoxy resin + glass beads |
| Weight | ~50 g |
| Tightening Torque | Max 30 Nm |
| Green LED: |
constant=power on; blinking=synchronizing.
|
| Yellow LED: | constant=black line switching state; blink 3 times=learning success. |
| Red LED: | constant=target detected; blink 3 times=learning failure. |

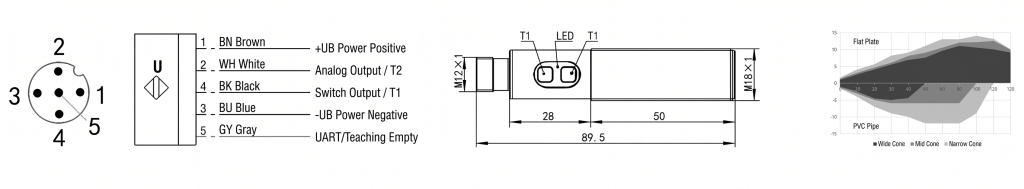

Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications

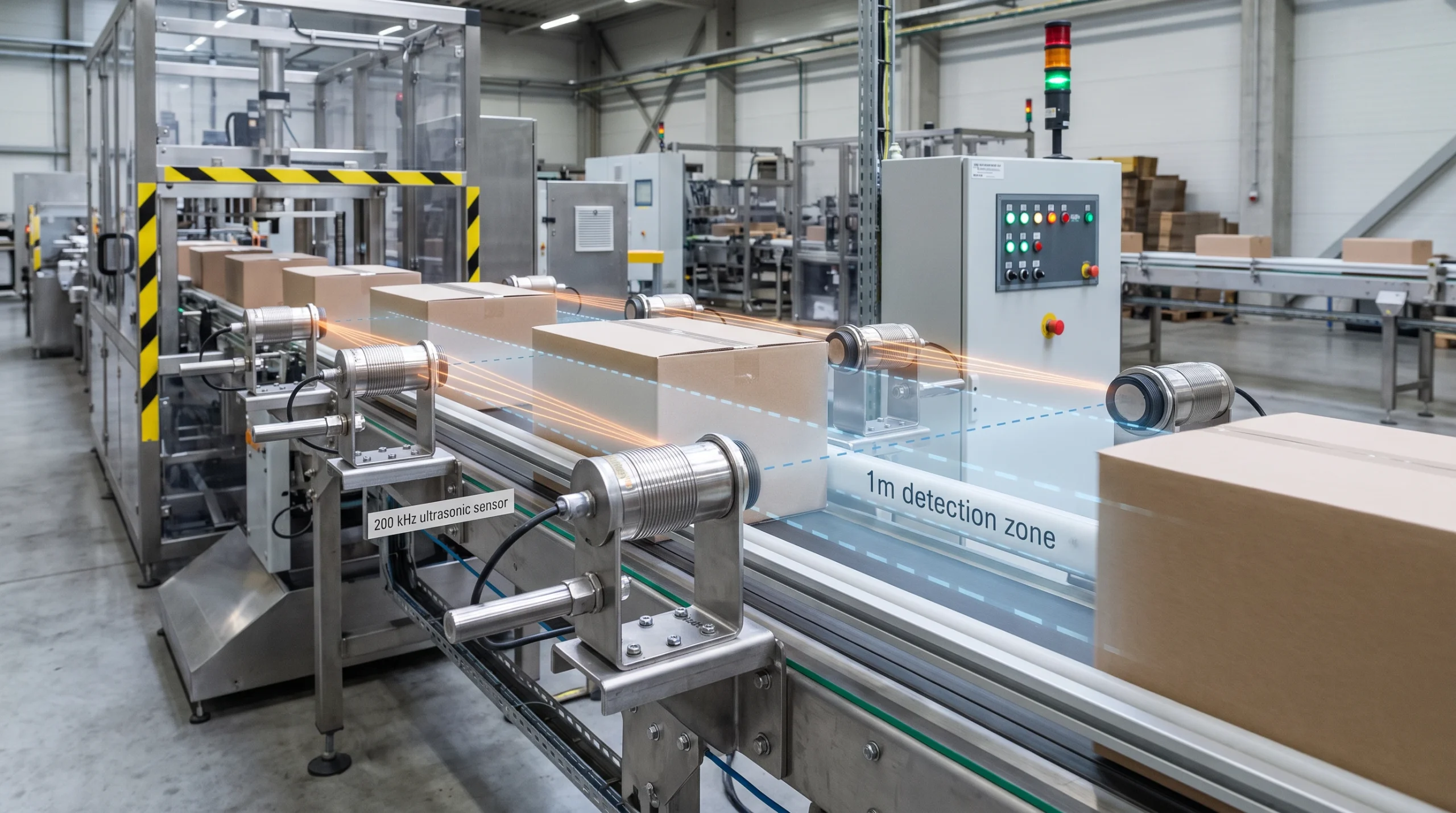

The 200 kHz ultrasonic transducer can be used for 1-meter ultrasonic distance measurement and object/proximity detection in industrial automation, such as packaging presence detection, material handling, positioning/clearance monitoring, and reliable target detection in systems where multiple ultrasonic sensors need synchronization to reduce mutual interference.
