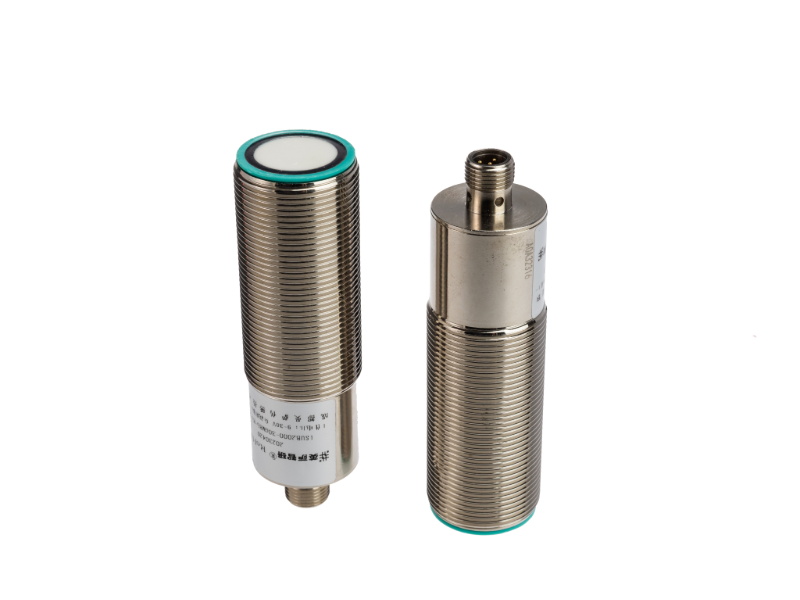

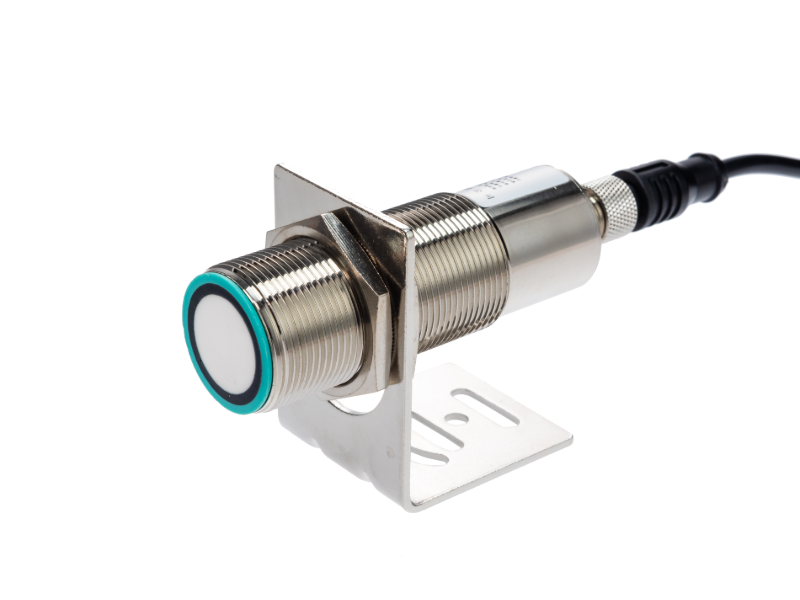

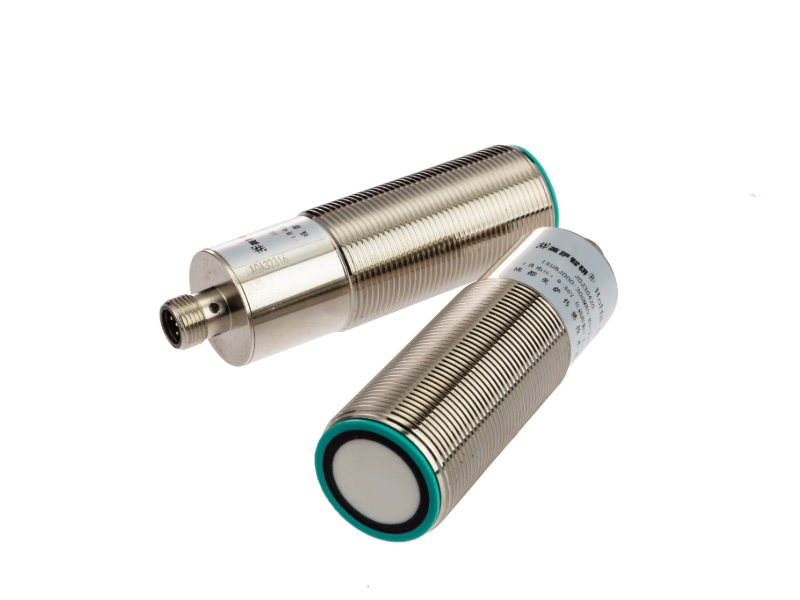

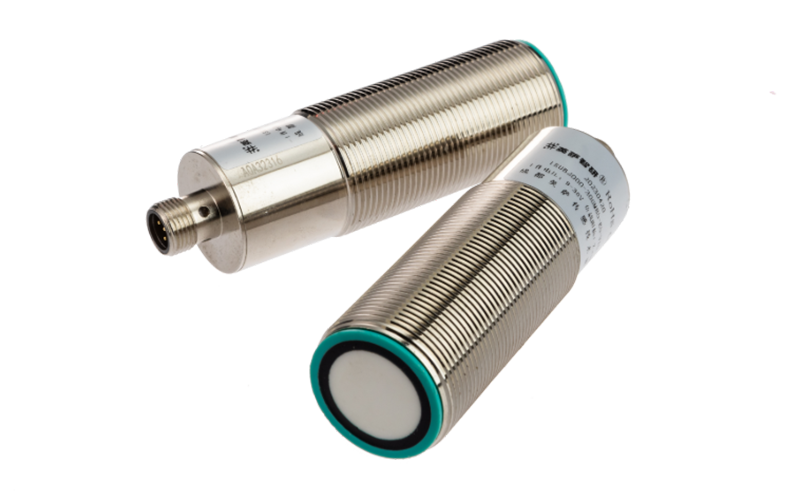

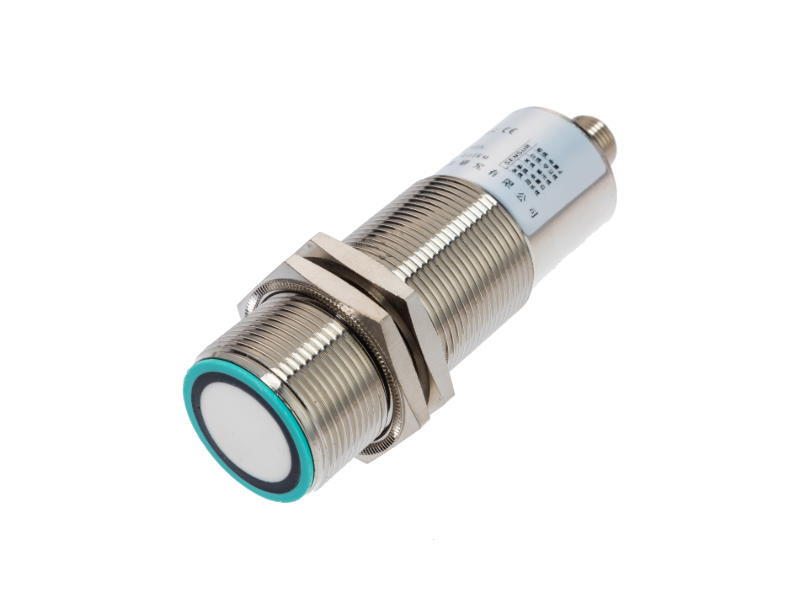

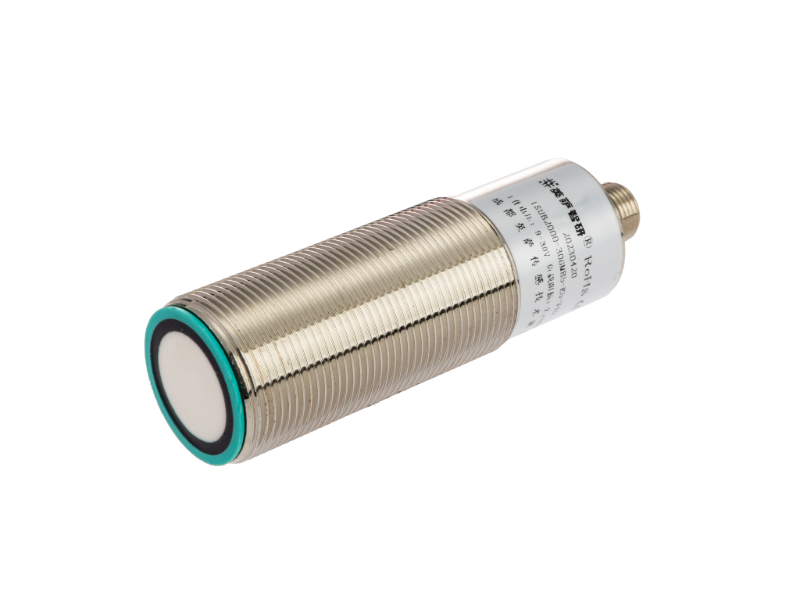

ISUB2000-30GM85
Integrated 2M Ranging Ultrasonic Liquid Level Sensor｜Analog/Switching/TTL
Ultrasonic Level Sensor, Integrated Distance Sensor, Programmable Ultrasonic Transducer, 2m Ranging Sensor, Liquid Level Monitoring, Non-contact Level Measurement, IP67 Ultrasonic Sensor, 180kHz High Frequency Sensor
The ISUB2000-30GM85 Series Integrated Ultrasonic Sensor represents the next generation of versatile industrial sensing. Designed to streamline inventory and deployment, this "all-in-one" 2-meter sensor features a unique programmable architecture. By simply updating the firmware via the serial port, users can switch the sensor's output mode between Analog (Current: 4-20mA, Voltage: 0-5V/0-10V), Switching (NPN/PNP with hysteresis), and Digital (TTL232). This flexibility makes it the perfect solution for engineers and distributors who need one reliable sensor to handle diverse application requirements.
Precision & Reliability
Built for precision, the sensor utilizes a high-frequency 180kHz transducer, offering superior signal stability compared to standard low-frequency sensors. It delivers a resolution of 0.5mm and maintains linearity within ±1% of the full scale. To ensure consistent accuracy in fluctuating environments, the sensor includes active temperature compensation, automatically adjusting for changes between -25°C and 70°C. With a narrow beam angle of ±5° and a small blind zone of just 120mm, it excels in detecting targets in confined spaces without false readings from surrounding structures.
Industrial Integration
Engineered for harsh industrial realities, the sensor is housed in a robust IP67-rated enclosure, protecting it from dust and water ingress. It features sophisticated synchronization capabilities, allowing up to 5 sensors to operate simultaneously without interference—a critical feature for multi-point conveyor systems or complex tank farms. Whether for checking the presence of objects on a production line or monitoring fluid levels in a tank, the ISUB2000-30GM85 delivers professional-grade performance with the convenience of a standardized M12 connector interface.
Specification
| Model |
ISUB2000-30GM85-I-V15 ISUB2000-30GM85-U5-V15 ISUB2000-30GM85-U10-V15 |
ISUB2000-30GM85-E4-V15 ISUB2000-30GM85-E5-V15 ISUB2000-30GM85-E8-V15 ISUB2000-30GM85-E9-V15 |
ISUB2000-30GM85-TTL-V15 |
|---|---|---|---|
| Detection Range | 120...2000mm | 120...2000mm | 120...2000mm |
| Adjustment Range | 130...2000mm | 130...2000mm | 130...2000mm |
| Blind Zone | 120mm | 120mm | 120mm |
| Standard Target Plate | 100mm × 100mm | 100mm × 100mm | 100mm × 100mm |
| Beam Angle | ±5° | ±5° | ±5° |
| Transducer Frequency | Approx. 180kHz | Approx. 180kHz | Approx. 180kHz |
| Response Delay | ≤100ms | ≤100ms | ≤100ms |
| Operating Voltage |
I: 12...30 V DC U5: 9...30 V DC U10: 15...30 V DC |
9...30V DC | 5...30V DC |
| No-load Current | ≤30mA | ≤30mA | ≤30mA |
| Synchronization | 1...5 sensors | 1...5 sensors | 1...5 sensors |
| Output Type |
I: 4-20mA U5: 0-5V U10: 0-10V |
E4: NPN / E5: PNP E8: NPN Hysteresis E9: PNP Hysteresis |
TTL: TTL232 Interface |
| Resolution | 0.5mm | 0.5mm | 0.5mm |
| Linearity | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Repeat Accuracy | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Rated Operating Current | / | 200mA (Short-circuit protected) | / |
| Load Impedance |
U5/U10: ≥1kΩ I: ≤300Ω |
/ | / |
| Hysteresis Range | / | E4/E5: 1% of set distance | / |
| Temperature Drift | ±2% F.S. | ±2% F.S. | ±2% F.S. |
| Operating Temperature | -25...70℃ | -25...70℃ | -25...70℃ |
| Storage Temperature | -40...85℃ | -40...85℃ | -40...85℃ |
| EMC | GB/T17626.2-2006 GB/T17626.4-2008 |
GB/T17626.2-2006 GB/T17626.4-2008 |
GB/T17626.2-2006 GB/T17626.4-2008 |
| Protection Class | IP67 | IP67 | IP67 |
| Connection | V15 Connector (M12×1), 5-pin | V15 Connector (M12×1), 5-pin | V15 Connector (M12×1), 5-pin |

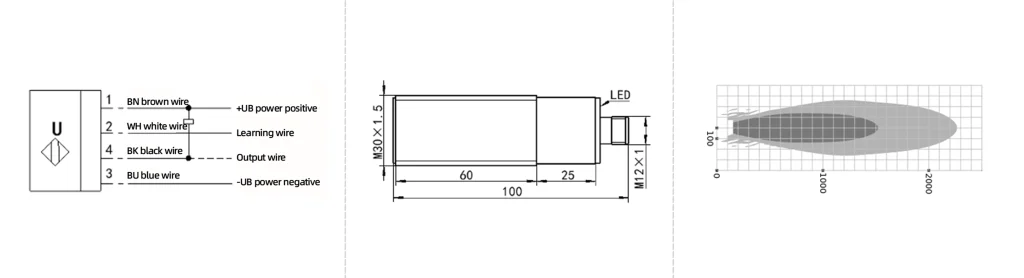

Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications

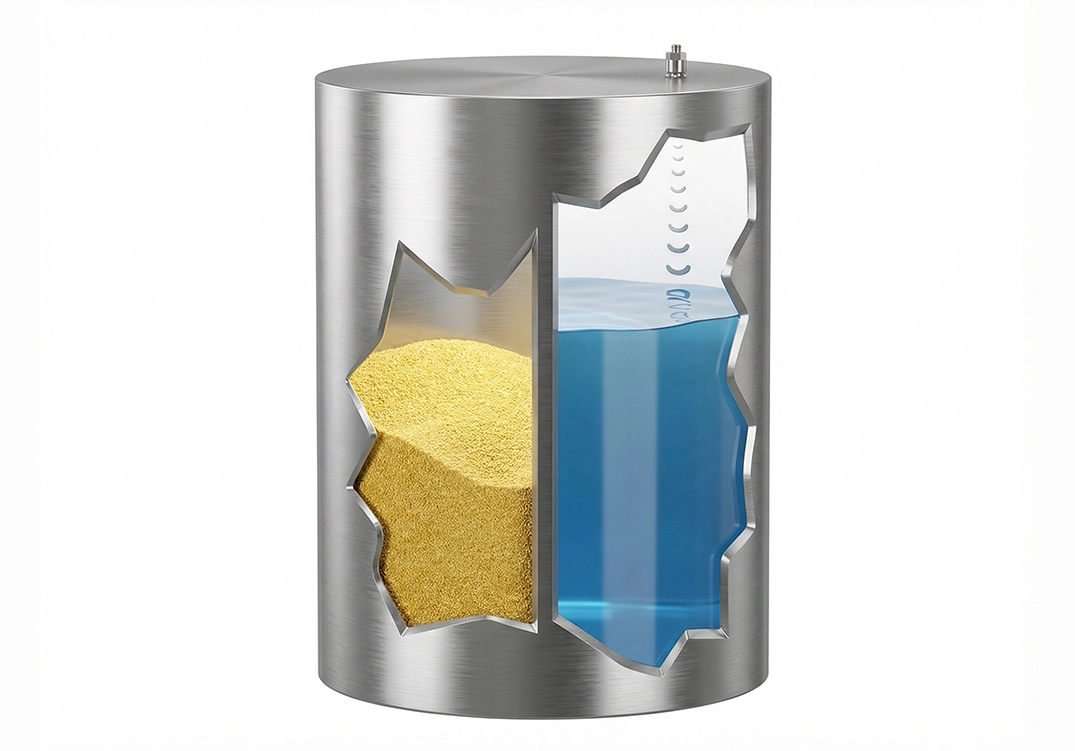

The ISUB2000-30GM85 Series is engineered to handle a diverse range of industrial sensing challenges with high precision and reliability. With its minimized 120mm blind zone and chemically resistant housing, the sensor excels in medium tank level monitoring, providing precise readings for water, oil, or slurries in compact mixing vessels and Intermediate Bulk Containers (IBCs). The unit's high-frequency 180kHz transducer ensures strong signal reflection from solid surfaces, making it equally effective for hopper material level detection of plastic granules, grains, and powders. Beyond level measurement, the device offers rapid response times (≤100ms) and multi-sensor synchronization, rendering it ideal for object presence detection on conveyor belts and AGVs without cross-talk interference. Furthermore, the available TTL/Serial output mode facilitates direct integration with microcontrollers, supporting critical distance measurement tasks for robotics, such as arm positioning and collision avoidance systems.
