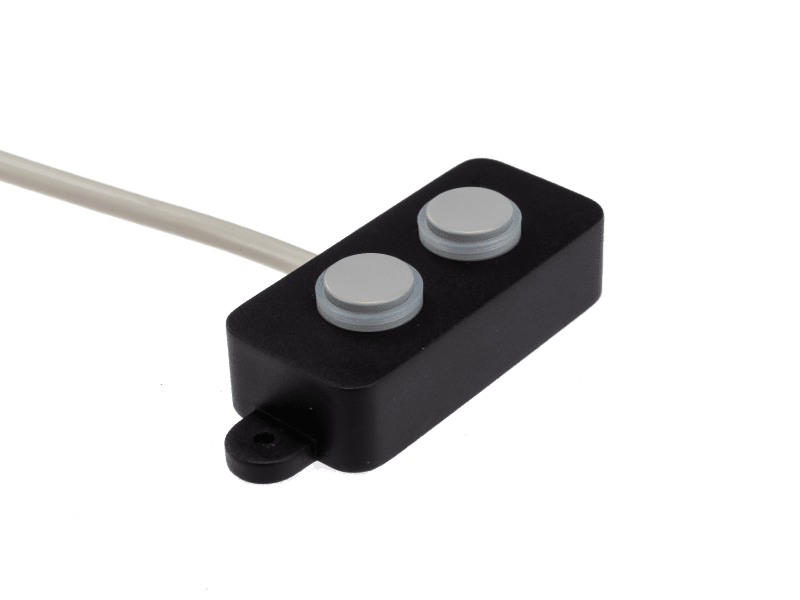

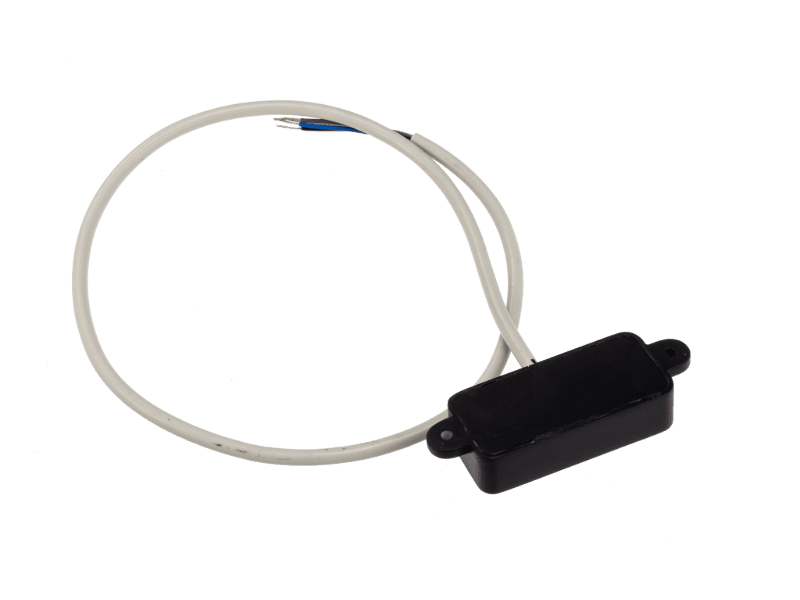

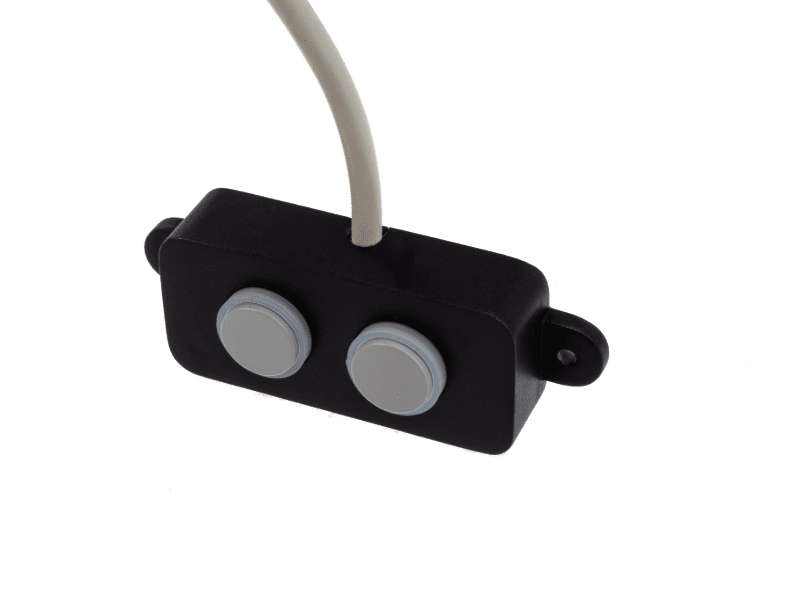

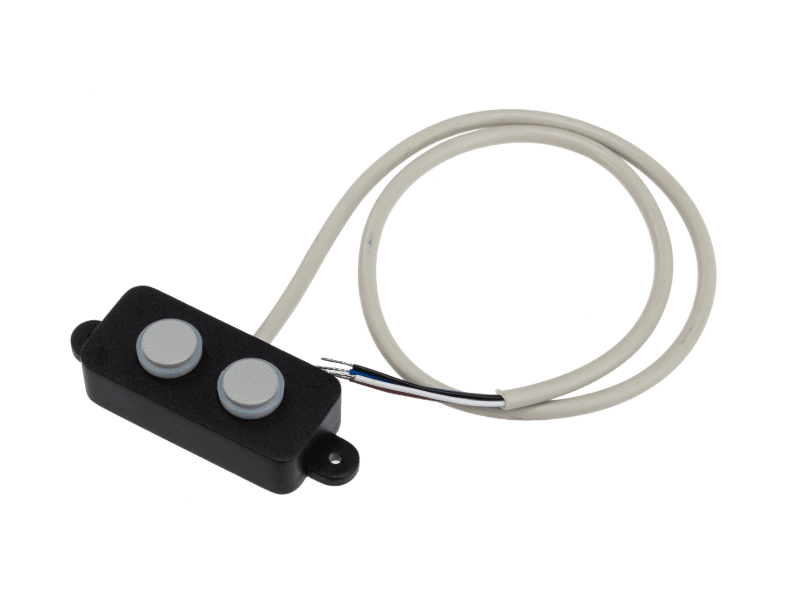

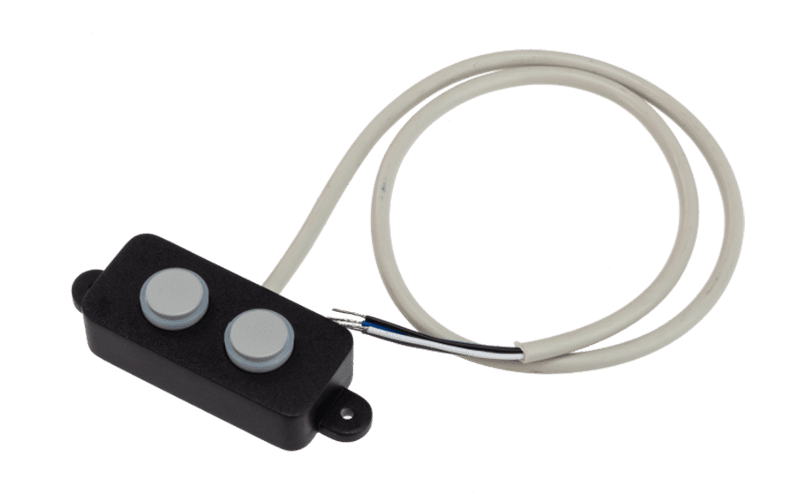

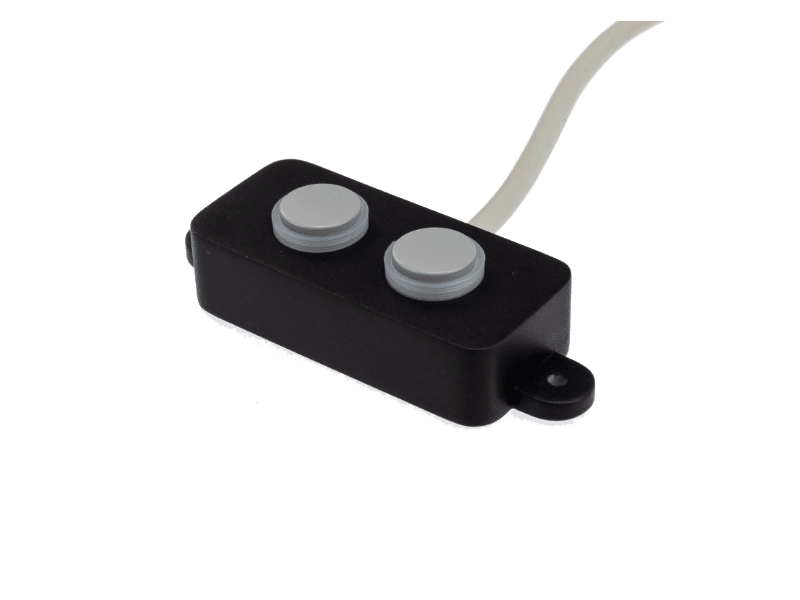

ISUBE1000-F64-TTL5-VC-58
1M 58kHz Ultrasonic Distance Sensor with Dual-Angle Detection for Robotics and Smart Bins
Ultrasonic Sensor, Distance Measurement, Dual Angle, Temperature Compensation, Smart Bins, Robotic Obstacle Avoidance.
Engineered for next-generation Smart Waste Management and Robotic Navigation, this highly precise ultrasonic distance sensor outperforms standard alternatives. Featuring a specialized 40mm ultra-small blind zone and a 75° wide detection angle, it reliably monitors fill levels even on uneven trash surfaces. Furthermore, it acts as a superior AGV obstacle avoidance sensor and a highly responsive service robot obstacle sensor, ensuring safe, precise movement for automated cleaning equipment in tight, complex spaces.
Designed for rugged reliability, the module includes built-in temperature compensation to maintain pinpoint accuracy from -20°C to +70°C. Protected by an IP65-rated housing for outdoor durability and featuring a standard TTL output, it enables seamless integration into any IoT or industrial automation ecosystem.
Specification
| Model | ISUB1000-F64-TTL-VC |
|---|---|
| Detection Range | 40...1000mm |
| Blind Spot | 40mm |
| Standard Target Plate | 100mm×100mm |
| Angles | X=75°, Y=45° |
| Transducer Frequency | Approx. 58kHz |
| Response Delay | ≤100ms |
| Operating Voltage | 5...12V DC |
| No-Load Current | ≤28mA |
| Output Type | TTL: TTL232 Interface |
| Resolution | 10mm |
| Linearity | ±2% of Full Scale |
| Repeatability | ±1% of Full Scale |
| Temperature Drift | 0.17%/ºC |
| Operating Temperature | -20...70℃ |
| Storage Temperature | -40...85℃ |
| Electromagnetic Compatibility | GB/T17626.2-2006; GB/T17626.4-2008 |
| Protection Level | IP65 |
| Connection Method | VC, Four-Core Cable |
Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications

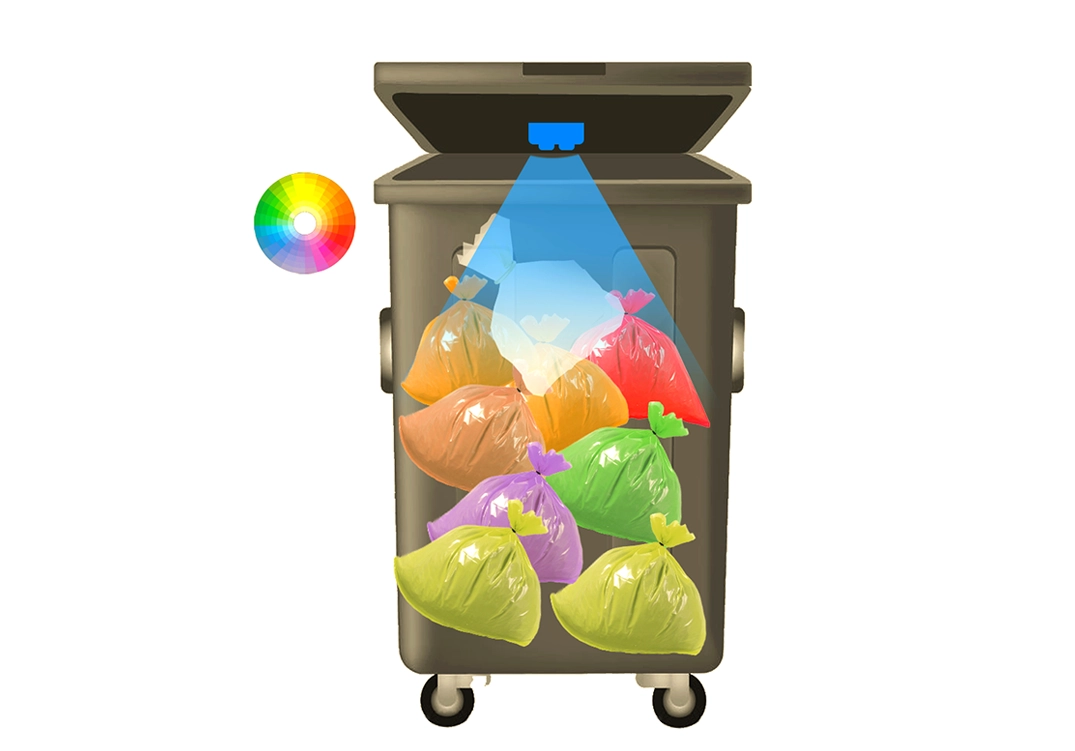

Designed for versatility, the sensor excels in Smart Waste Management by accurately monitoring fill levels in public bins, recycling stations, and clothing donation boxes. Its wide 75° beam angle is equally effective for Service Robots, providing reliable obstacle avoidance for floor-cleaning AGVs, delivery bots, and lawn mowers. Furthermore, its precision allows for vehicle detection in Smart Parking systems and short-range automation in Smart Home applications, such as automatic sanitary devices.
