ISUB1000-18GM75A-VC

ISSR 1M 200kHz Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor

Features:

1 m 200 kHz Right-Angle IP67 Protective Ultrasonic Sensor for Industrial Automation

  • Versatile Signal Output: Fully integrated Switching, Analog (4–20 mA), and Digital outputs for broad system compatibility.
  • Intelligent Configuration: Supports A1/A2 dual-point learning for flexible and precise detection range setting.
  • High-Precision Sensing: Engineered with a minimal 60 mm blind zone to ensure accurate near-field detection.
  • Future-Proof Design: Supports convenient firmware upgrades via serial port for easy maintenance and updates.

Downloads Manual:

Share your love

Product Information

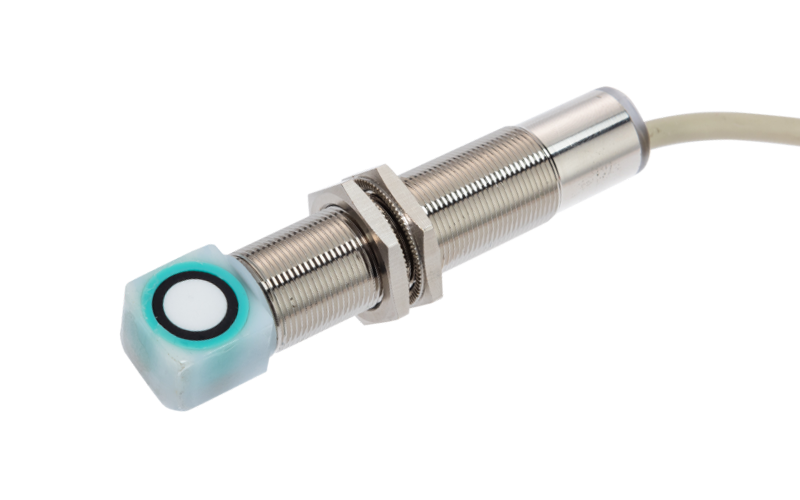

ISUB1000-18GM75A-VC

1M 200khz 90-degree right-angle elbow IP67 protective ultrasonic ranging sensor suitable for industrial automation

Ultrasonic Distance Sensor, Right Angle Design, IP67 Waterproof, Minimal Blind Zone, Dual-Point Learning, 4–20 mA Analog Output, Industrial Automation, Fast Response, High Repeatability, Easy Firmware Upgrade

View More Other Products

The ISUB1000-18GM75A-VC ultrasonic distance sensor is a robust, right-angle solution designed for precise, non-contact distance and liquid level detection. Engineered for industrial automation, it features a compact 90-degree bend form factor, enabling flexible installation even in confined spaces. With a protection rating of IP67, this sensor delivers reliable performance in harsh or dusty environments, making it ideal for demanding production lines.

Leveraging advanced ultrasonic technology, this device offers a detection range from 60 mm to 1000 mm, with outstanding accuracy thanks to a minimal blind zone of just 60 mm and high repeatability (±1% of full scale). The ISUB1000-18GM75A-VC supports versatile output options, including 4–20 mA analog output, digital switching, and configurable dual-point learning (A1/A2), enabling seamless integration with diverse industrial control systems. Firmware upgrades via serial interface ensure long-term adaptability and easy maintenance.

Typical applications include liquid level detection in transparent and semi-transparent containers, filling line monitoring, and presence detection on conveyor systems. Its fast response time (≤100 ms), fine resolution (0.5 mm), stable output, and EMC compliance further underpin its suitability for accuracy-critical environments in the food, beverage, pharmaceuticals, and personal care sectors.

Specification

Model ISUB1000-18GM75A-I-VC
Detection Range 60…1000 mm
Adjustment Range 70…1000 mm
Blind Zone 60 mm
Standard Target Plate 100 mm × 100 mm
Beam Angle ±7°
Transducer Frequency Approx. 200 kHz
Response Delay ≤100 ms
Operating Voltage 12…30 V DC, 10% Vpp
No-Load Current ≤35 mA
Output Type 4–20 mA
Resolution 0.5 mm
Linearity ±1% of full scale
Repeatability ±1% of full scale
Rated Operating Current /
Load Impedance ≤300 Ω
Hysteresis Range /
Temperature Drift ±2% of full scale
Operating Temperature –25…70 °C
Storage Temperature –40…85 °C
EMC Compliance GB/T 17626.2-2006; GB/T 17626.4-2008
Protection Rating IP67
Connection 4-core cable, 2 m

Electrical Connection / Overall Dimensions / Response Characteristic Curve

Typical Applications

Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor application

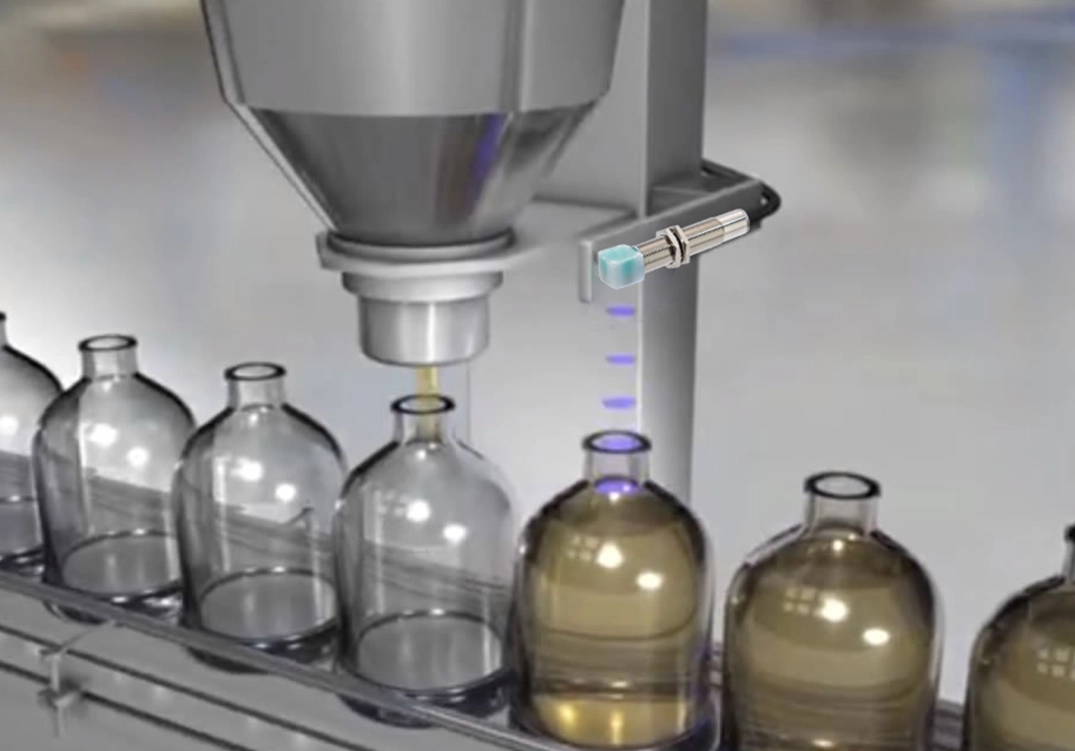

This IP67-protected ultrasonic distance sensor with an elbow (right-angle) design is suitable for non-contact liquid level detection inside transparent or semi-transparent containers on conveyor belts. Its minimal blind zone and high repeatability ensure stable and accurate detection of liquid levels even in confined installation spaces, making it ideal for filling and level monitoring applications in the food and beverage, pharmaceutical, and personal care industries.
