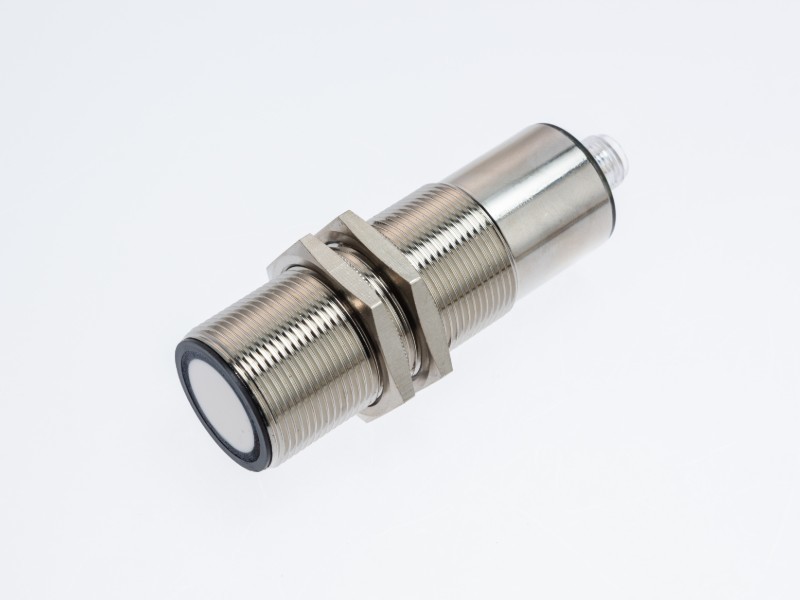

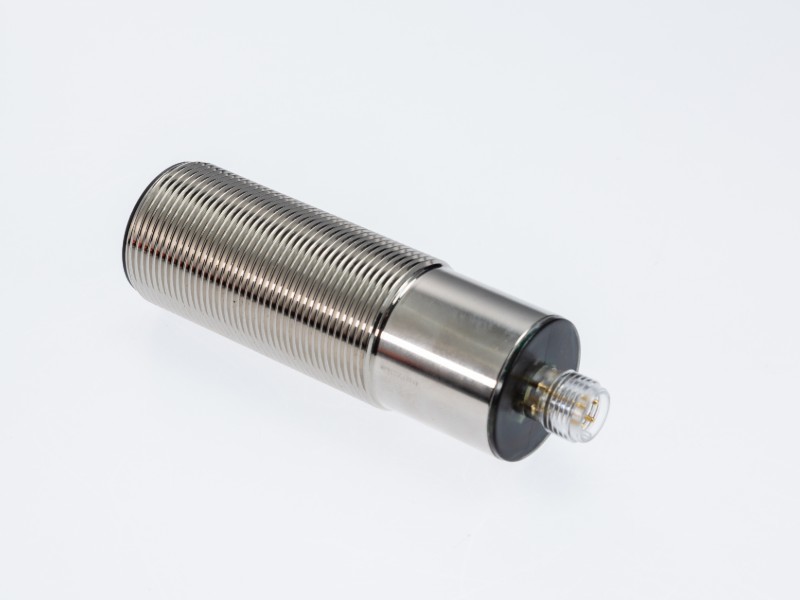

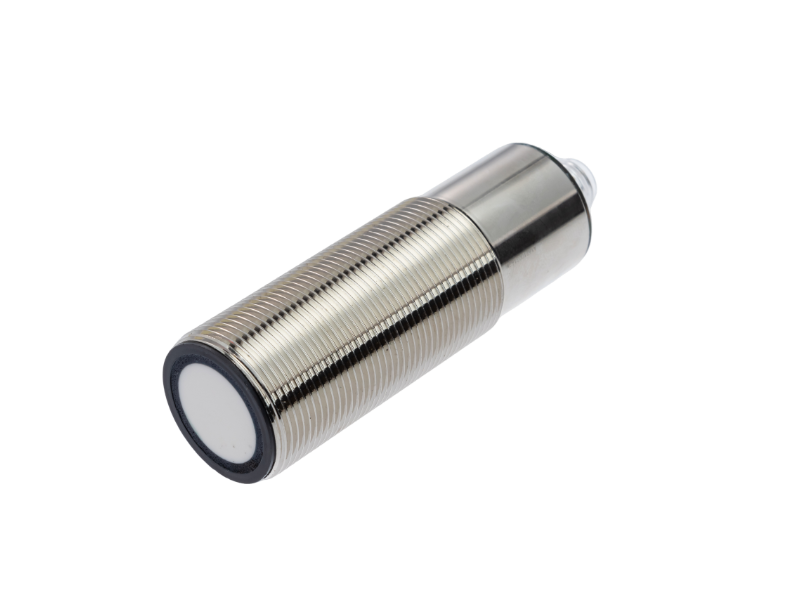

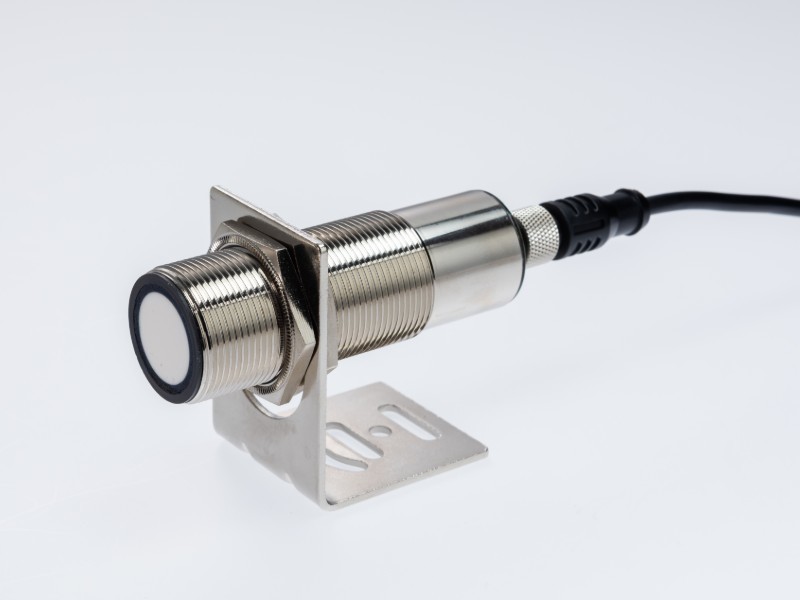

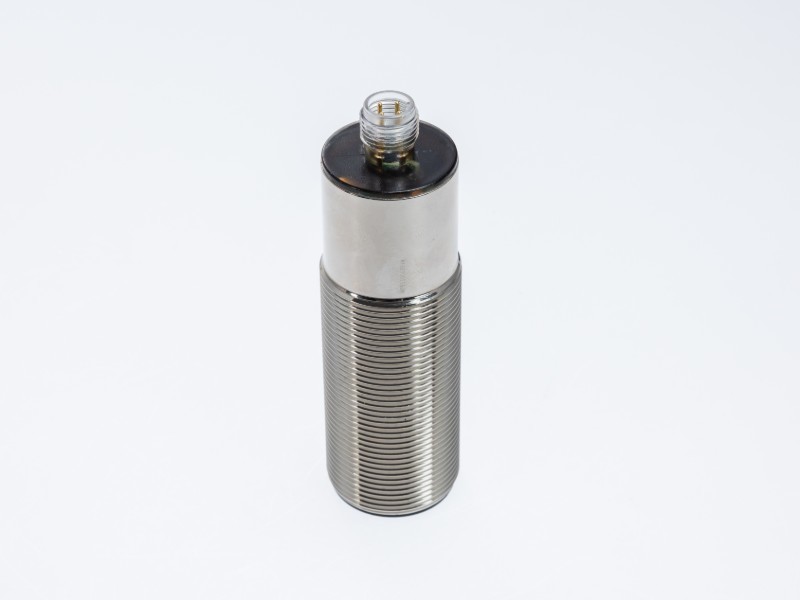

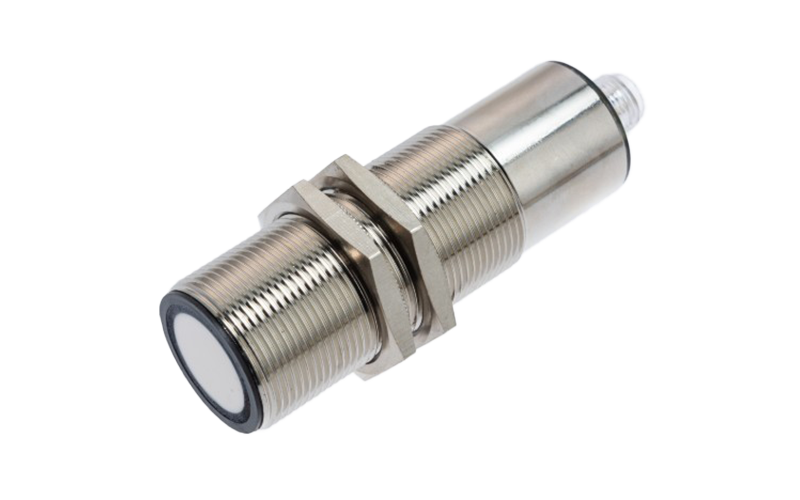

ISUB3000-30GM85
ISSRSensor 3M All-in-One Ultrasonic Level Ranging Sensor | Analog/Switching/Digital
Ultrasonic Level Sensor, 3m Distance Measurement, 4-20mA Analog Output, Programmable NPN PNP Sensor, Integrated Ultrasonic Transducer, IP67 Liquid Level Sensor, Temperature Compensated Sensor, TTL Serial Interface
The ISUB3000-30GM85 Series represents the next generation of industrial non-contact sensing technology, designed to simplify inventory management and maximize application versatility. Unlike traditional sensors with fixed outputs, this highly integrated All-in-one Ultrasonic Sensor features a revolutionary programmable architecture. Users can effortlessly switch between Analog (Current/Voltage), Switching (NPN/PNP with Hysteresis), and Digital (TTL) output modes by simply updating the firmware via a serial tool or utilizing the intuitive A1/A2 Teach-in mode. This flexible design eliminates the need to stock multiple sensor variations, streamlining your control system integration.
Engineered for precision and reliability, this 3m Ultrasonic Level Sensor provides an impressive detection range of 180mm to 3000mm with a minimal blind zone. Driven by a robust 112kHz transducer and advanced signal processing algorithms, it delivers highly stable measurements with a 1mm resolution. Whether you are deploying it as a dependable Ultrasonic Level Sensor for liquid tank monitoring or as a highly accurate 3m Ultrasonic Distance Sensor for factory automation and logistics, it guarantees outstanding performance even in challenging industrial environments.
Key Features & Technical Highlights:
Versatile "All-in-One" Architecture: Consolidates Analog, Switching, and Digital outputs into a single device.
High-Precision Detection: 180...3000mm measuring range with a narrow ±8° beam angle for focused sensitivity (best results achieved when installed perpendicular to the target).
Smart Temperature Compensation: Built-in algorithms effectively counteract thermal drift, ensuring consistent accuracy across a wide operating temperature range of -25℃ to 70℃.
Interference Prevention: Supports synchronization to eliminate cross-talk in multi-sensor arrays.
Industrial-Grade Durability: Housed in a rugged casing with an IP67 protection rating, capable of withstanding harsh process control environments.
Optimized Electrical Performance: Operates reliably on a 9...30V DC voltage supply with an ultra-low no-load current of ≤35mA.
From demanding factory automation to precise process control, the ISUB3000-30GM85 Series is built to deliver unparalleled accuracy and operational flexibility.
Specification
| Model Number | ISUB3000-30GM85-I-V1 ISUB3000-30GM85-U5-V1 ISUB3000-30GM85-U10-V1 |
ISUB3000-30GM85-E4-V1 ISUB3000-30GM85-E5-V1 ISUB3000-30GM85-E8-V1 ISUB3000-30GM85-E9V1 |
ISUB3000-30GM85-TTL-V1 |
|---|---|---|---|
| Sensing Range | 180...3000mm | 180...3000mm | 180...3000mm |
| Adjustment Range | 190...3000mm | 190...3000mm | 190...3000mm |
| Blind Zone | 180mm | 180mm | 180mm |
| Standard Target Plate | 100mm×100mm | 100mm×100mm | 100mm×100mm |
| Beam Angle | ±8° | ±8° | ±8° |
| Transducer Frequency | Approx. 112kHz | Approx. 112kHz | Approx. 112kHz |
| Response Delay | ≤110ms | ≤110ms | ≤110ms |
| Operating Voltage | I: 12...30 V DC U5: 9...30 V DC U10: 15...30 V DC |
9...30 V DC | 5...30 V DC |
| No-load Current | ≤30mA | ≤30mA | ≤30mA |
| Output Type | I: 4-20mA U5: 0-5V U10: 0-10V |
E4: NPN E5: PNP E8: NPN Hysteresis E9: PNP Hysteresis |
TTL232 Interface |
| Resolution | 1mm | 1mm | 1mm |
| Linearity | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Repeat Accuracy | ±1% F.S. | ±1% F.S. | ±1% F.S. |
| Rated Operating Current | / | 200mA, Short-circuit protection | / |
| Load Impedance | U5/U10: ≥1kΩ I: ≤300Ω |
/ | / |
| Hysteresis Range | / | E4/E5: 1% of set distance | / |
| Temperature Drift | ±2% F.S. | ±2% F.S. | ±2% F.S. |
| Operating Temperature | -25...70℃ | -25...70℃ | -25...70℃ |
| Storage Temperature | -40...85℃ | -40...85℃ | -40...85℃ |
| EMC | GB/T17626.2-2006; GB/T17626.4-2008 | GB/T17626.2-2006; GB/T17626.4-2008 | GB/T17626.2-2006; GB/T17626.4-2008 |
| Protection Level | IP67 | IP67 | IP67 |
| Connection Method | V1 connector (M12×1), 4-pin | V1 connector (M12×1), 4-pin | V1 connector (M12×1), 4-pin |

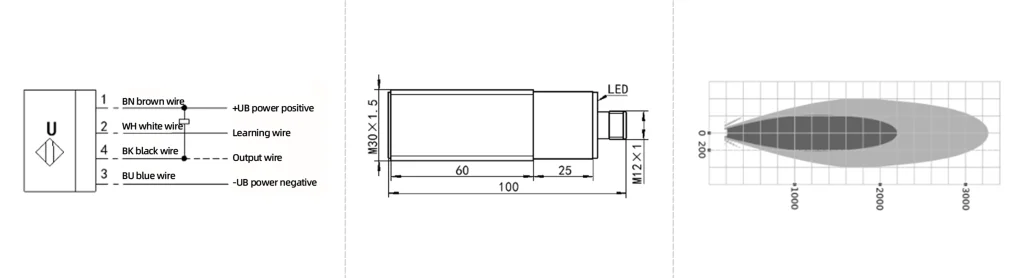

Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications

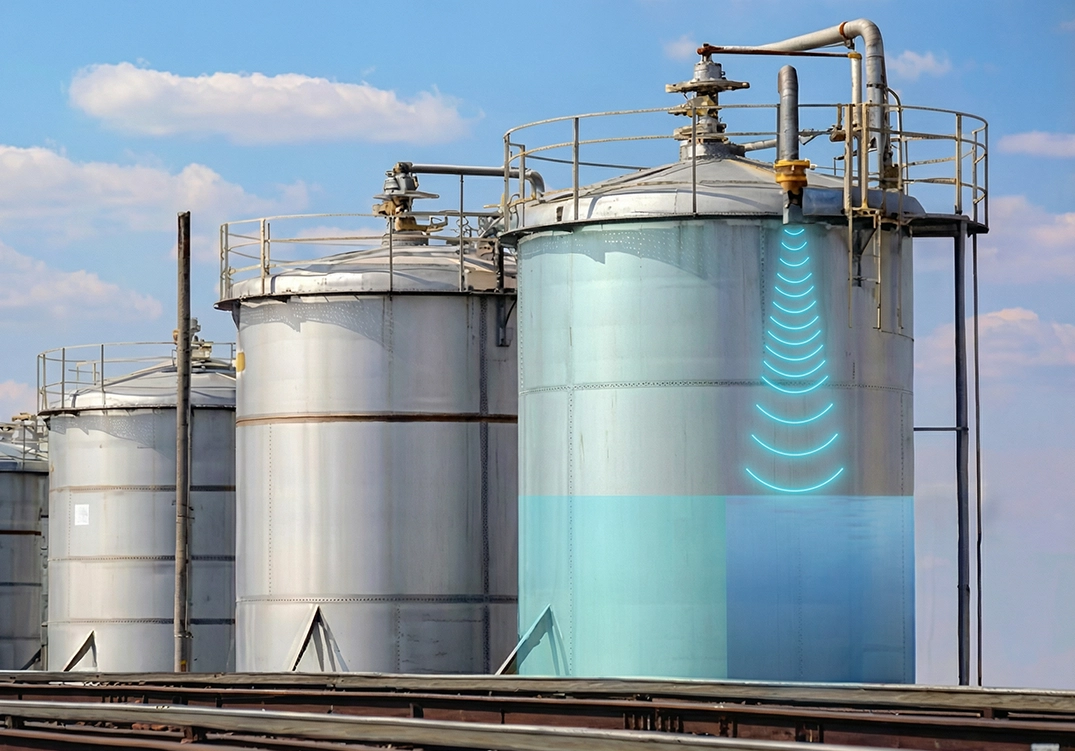

Engineered for industrial precision, the ISSR 3M All-in-One Ultrasonic Sensor is the ideal solution for monitoring the large-scale liquid storage tanks and chemical vessels illustrated above. Utilizing high-frequency 112kHz acoustic technology, it delivers stable, non-contact readings unaffected by liquid color, transparency, or surface foam. However, its versatility extends far beyond static tank monitoring. The rugged M30 nickel-plated brass housing features a fully sealed "Wire Teach-in" design (IP67), ensuring waterproof reliability for harsh outdoor applications like river level monitoring and flood warning systems. Whether managing inventory in silos or guiding automated machinery, this sensor adapts to your most demanding liquid and solid measurement needs.
