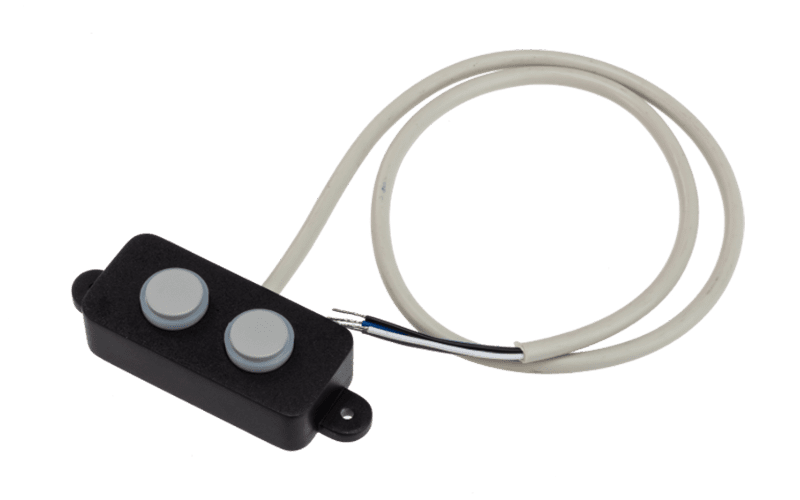

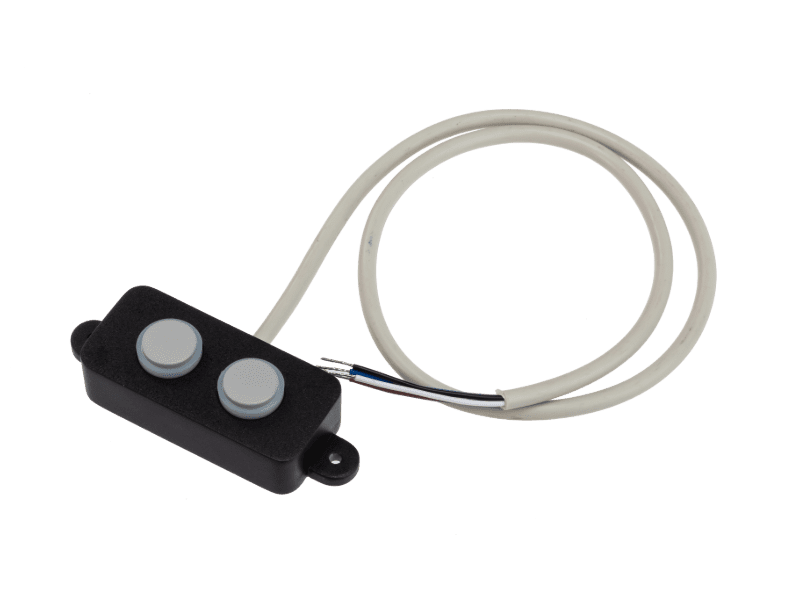

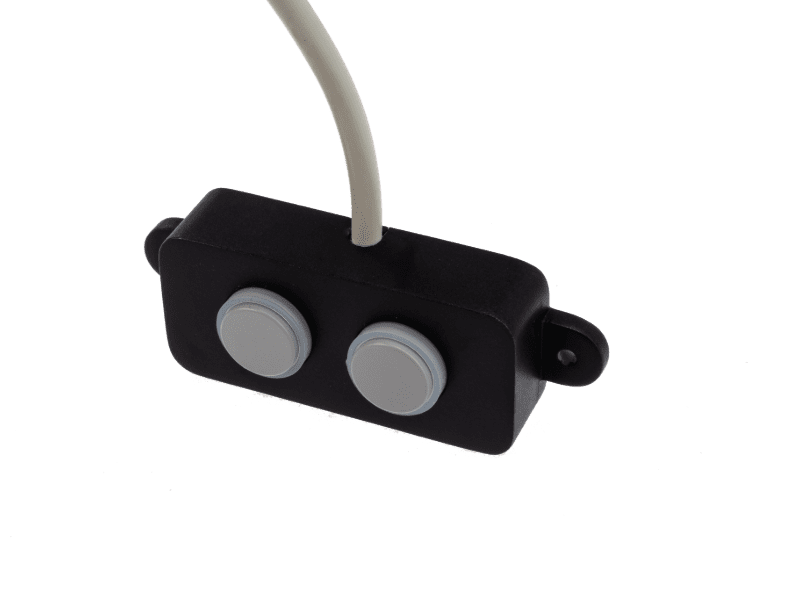

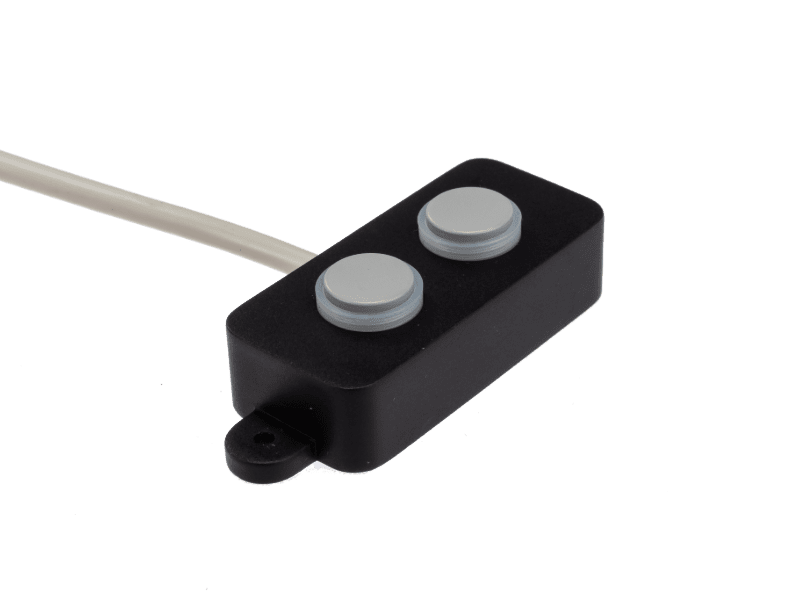

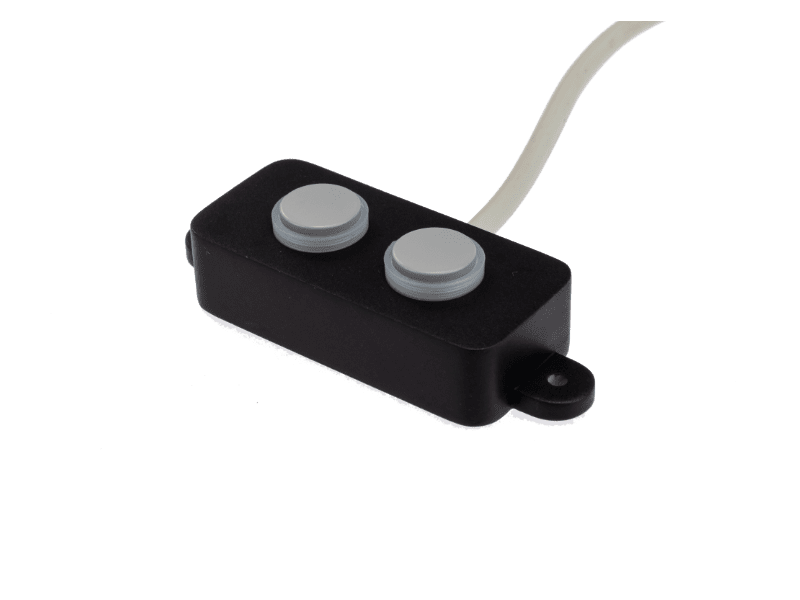

ISUBE1000-F64-TTL5-VC-58
1M 58kHz Ultrasonic Distance Sensor with Dual-Angle Detection for Robotics and Smart Bins
Ultrasonic Sensor, Distance Measurement, Dual Angle, Temperature Compensation, Smart Bins, Robotic Obstacle Avoidance.
The Sensor is engineered for Smart Waste Management and Robotic Navigation. Unlike standard sensors, it features a specialized 40mm ultra-small blind zone and a 75° wide detection angle. This ensures reliable fill-level monitoring of uneven trash surfaces and precise obstacle avoidance for cleaning robots, even in tight spaces.
Built for reliability, the sensor includes temperature compensation for accuracy across -20°C to +70°C and an IP65-rated housing for outdoor protection. Its standard TTL output allows seamless integration into any IoT or automation system.
Specification
| Specification | Details |
|---|---|
| Model | ISUB1000-F64-TTL-VC |
| Detection Range | 40...1000mm |
| Blind Spot | 40mm |
| Standard Target Plate | 100mm×100mm |
| Angles | X=75°, Y=45° |
| Transducer Frequency | Approx. 58kHz |
| Response Delay | ≤100ms |
| Operating Voltage | 5...12V DC |
| No-Load Current | ≤28mA |
| Output Type | TTL: TTL232 Interface |
| Resolution | 10mm |
| Linearity | ±2% of Full Scale |
| Repeatability | ±1% of Full Scale |
| Temperature Drift | 0.17%/ºC |
| Operating Temperature | -20...70℃ |
| Storage Temperature | -40...85℃ |
| Electromagnetic Compatibility | GB/T17626.2-2006; GB/T17626.4-2008 |
| Protection Level | IP65 |
| Connection Method | VC, Four-Core Cable |
Electrical Connection / Overall Dimensions / Response Characteristic Curve
Typical Applications
Designed for versatility, the sensor excels in Smart Waste Management by accurately monitoring fill levels in public bins, recycling stations, and clothing donation boxes. Its wide 75° beam angle is equally effective for Service Robots, providing reliable obstacle avoidance for floor-cleaning AGVs, delivery bots, and lawn mowers. Furthermore, its precision allows for vehicle detection in Smart Parking systems and short-range automation in Smart Home applications, such as automatic sanitary devices.
