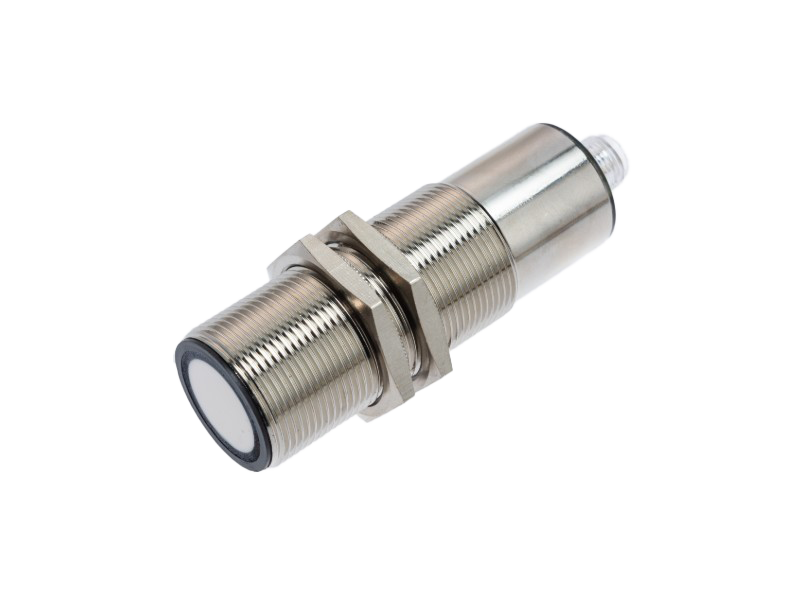

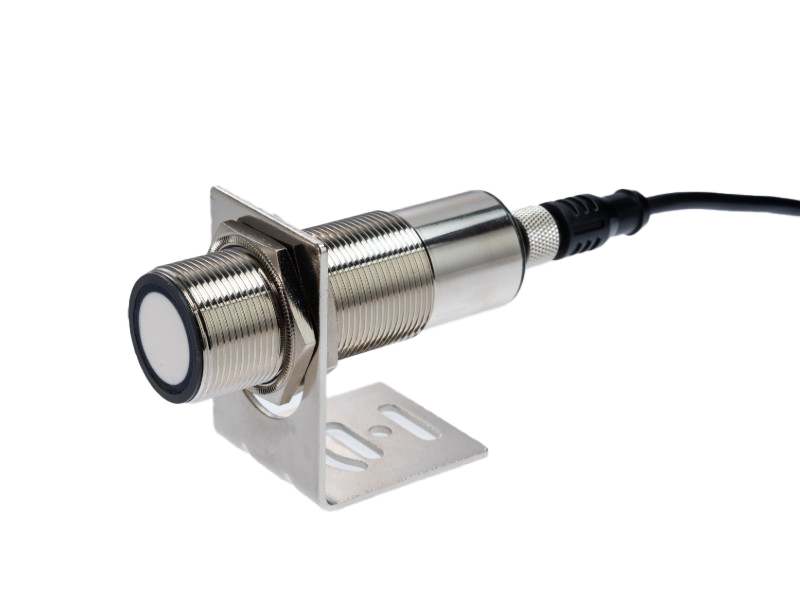

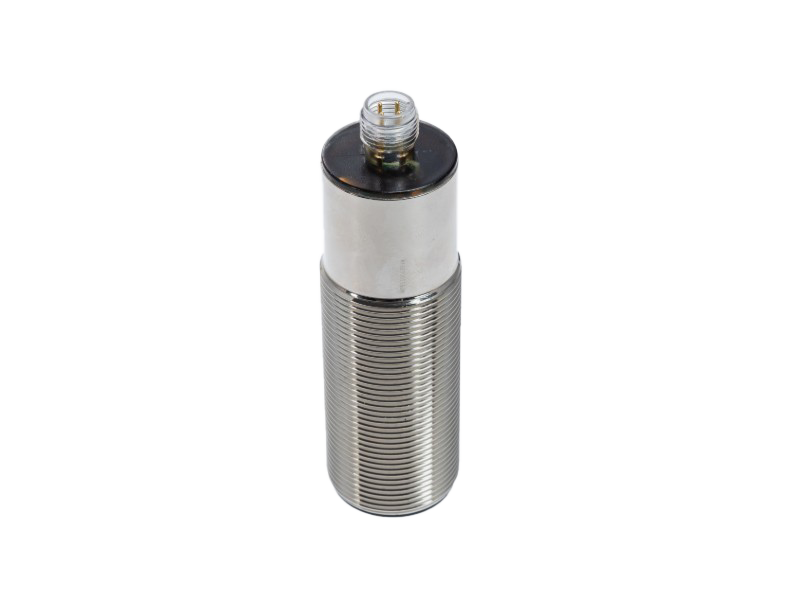

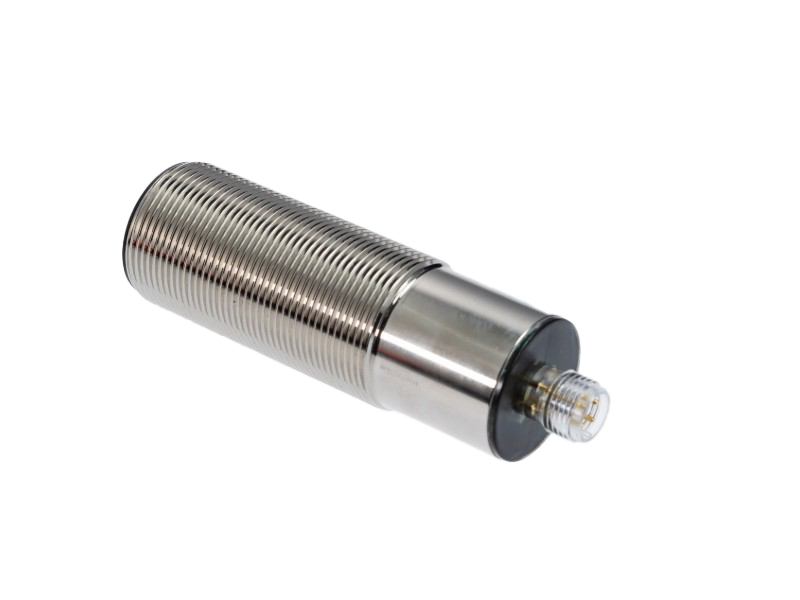

ISUB3000-30GM85

ISSR 3M All-in-One Ultrasonic Level Ranging Sensor | Analog/Switching/Digital

Ultrasonic Level Sensor, 3m Distance Measurement, 4-20mA Analog Output, Programmable NPN PNP Sensor, Integrated Ultrasonic Transducer, IP67 Liquid Level Sensor, Temperature Compensated Sensor, TTL Serial Interface

View More Other Products

The ISUB3000-30GM85 Series represents the next generation of industrial non-contact sensing technology, designed to simplify inventory management and maximize application versatility. Unlike traditional sensors with fixed outputs, this fully integrated ultrasonic sensor features a revolutionary programmable architecture. Users can switch between Analog (Current/Voltage), Switching (NPN/PNP with Hysteresis), and Digital (TTL) output modes simply by updating the firmware via a serial tool. This "All-in-One" design eliminates the need to stock multiple sensor variations for different control systems.

Engineered for precision and reliability, the sensor provides a detection range of 180mm to 3000mm with a minimal blind zone. It utilizes a 112kHz transducer and advanced algorithms to deliver stable measurements with 1mm resolution, even in challenging industrial environments. The sensor includes built-in temperature compensation to counteract thermal drift and supports synchronization to prevent interference in multi-sensor arrays. Housed in a durable casing with an IP67 protection rating, it is the ideal solution for demanding factory automation, logistics, and process control applications.

Specification

Model Number	ISUB3000-30GM85-I-V1 ISUB3000-30GM85-U5-V1 ISUB3000-30GM85-U10-V1	ISUB3000-30GM85-E4-V1 ISUB3000-30GM85-E5-V1 ISUB3000-30GM85-E8-V1 ISUB3000-30GM85-E9V1	ISUB3000-30GM85-TTL-V1
Sensing Range	180...3000mm	180...3000mm	180...3000mm
Adjustment Range	190...3000mm	190...3000mm	190...3000mm
Blind Zone	180mm	180mm	180mm
Standard Target Plate	100mm×100mm	100mm×100mm	100mm×100mm
Beam Angle	±8°	±8°	±8°
Transducer Frequency	Approx. 112kHz	Approx. 112kHz	Approx. 112kHz
Response Delay	≤110ms	≤110ms	≤110ms
Operating Voltage	I: 12...30 V DC U5: 9...30 V DC U10: 15...30 V DC	9...30 V DC	5...30 V DC
No-load Current	≤30mA	≤30mA	≤30mA
Output Type	I: 4-20mA U5: 0-5V U10: 0-10V	E4: NPN E5: PNP E8: NPN Hysteresis E9: PNP Hysteresis	TTL232 Interface
Resolution	1mm	1mm	1mm
Linearity	±1% F.S.	±1% F.S.	±1% F.S.
Repeat Accuracy	±1% F.S.	±1% F.S.	±1% F.S.
Rated Operating Current	/	200mA, Short-circuit protection	/
Load Impedance	U5/U10: ≥1kΩ I: ≤300Ω	/	/
Hysteresis Range	/	E4/E5: 1% of set distance	/
Temperature Drift	±2% F.S.	±2% F.S.	±2% F.S.
Operating Temperature	-25...70℃	-25...70℃	-25...70℃
Storage Temperature	-40...85℃	-40...85℃	-40...85℃
EMC	GB/T17626.2-2006; GB/T17626.4-2008	GB/T17626.2-2006; GB/T17626.4-2008	GB/T17626.2-2006; GB/T17626.4-2008
Protection Level	IP67	IP67	IP67
Connection Method	V1 connector (M12×1), 4-pin	V1 connector (M12×1), 4-pin	V1 connector (M12×1), 4-pin

Electrical Connection / Overall Dimensions / Response Characteristic Curve

Typical Applications

Application of continuous level monitoring in medium and large storage tanks-3M fully integrated ultrasonic material ranging liquid level distance sensor-ISUB3000-30GM85

Engineered for industrial precision, the ISSR 3M All-in-One Ultrasonic Sensor is the ideal solution for monitoring the large-scale liquid storage tanks and chemical vessels illustrated above. Utilizing high-frequency 112kHz acoustic technology, it delivers stable, non-contact readings unaffected by liquid color, transparency, or surface foam. However, its versatility extends far beyond static tank monitoring. The rugged M30 nickel-plated brass housing features a fully sealed "Wire Teach-in" design (IP67), ensuring waterproof reliability for harsh outdoor applications like river level monitoring and flood warning systems. Whether managing inventory in silos or guiding automated machinery, this sensor adapts to your most demanding liquid and solid measurement needs.
