ISSR 40kHz Ultrasonic Reversing Radar Transducer | High Sensitivity & Reliable Obstacle Detection
ISU40-16TRBZ
ISSR 40kHz Ultrasonic Reversing Radar Transducer | High Sensitivity & Reliable Obstacle Detection
Features:
40kHz Ultrasonic Reversing Radar Distance Measurement and Obstacle Avoidance Transducer
- 110° Horizontal Wide Angle: Maximizes detection coverage with fewer sensors.
- Asymmetric Beam Pattern (110°H / 50°V): Detects wide obstacles without ground interference.
- Robust Aluminum Housing: Waterproof and dustproof design suitable for outdoor bumpers.
- High Sensitivity: Optimized capacitance (2000pF) for reliable signal transmission and reception.
-
ISSR 55.5kHz ultrasonic ranging transducer for safe obstacle avoidance when reversing in automobiles
ISU55.5-15.5TRAO
ISSR 55.5kHz ultrasonic ranging transducer for safe obstacle avoidance when reversing in automobiles
Features:
55.5kHz Transceiver Integrated Low-Frequency Ultrasonic Ranging Reversing Radar Sensor Transducer
- Waterproof and Sealed Design: Ensures reliable operation in various conditions
- Integrated Transceiver: Combines both sending and receiving capabilities
- High Sensitivity and Noise Ratio: Provides accurate distance measurement and collision detection
- Wide Frequency Band: Optimized for a range of applications, particularly in automotive safety
- Lightweight and Compact Structure: Facilitates easy installation and integration
-
ISSR 200kHz Ultrasonic Transducer | Edge Control & Web Guiding Sensor
ISU200-18.6TRBZ
ISSR 200kHz Ultrasonic Transducer | Edge Control & Web Guiding Sensor
Features:
200kHz High-Frequency, High-Sensitivity Edge Control & Web Guiding Ultrasonic Transducer
- High-Frequency Precision: Operates at 200kHz to deliver superior resolution for detecting fine edges of thin materials.
- Narrow Beam Directivity: Features a tight 10° beam angle, focusing detection strictly on the target edge without background interference.
- Material Versatility: Unaffected by color, transparency, or ambient light; detects clear plastic films, shiny foils, and dark rubber equally well.
- Ultra-Short Blind Zone: With a ring time of <1.0ms, it allows for close-range mounting in compact industrial machinery.
- Robust Aluminum Housing: IP-rated metal casing protects the sensitive piezo element from industrial dust and moisture.
-
ISSR 40kHz High-Sensitivity Ultrasonic Ranging and Obstacle Avoidance Transducer
ISU40-16TRBJ
ISSR 40kHz High-Sensitivity Ultrasonic Ranging and Obstacle Avoidance Transducer
Features:
40kHz low-frequency high-sensitivity ultrasonic ranging and obstacle avoidance transducer
- High Sensitivity: Exceptional detection capabilities with a signal-to-noise ratio of -81 dB
- Robust Design: Waterproof and closed construction for reliable outdoor use
- Wide Frequency Band: Operates efficiently at a central frequency of 40 kHz
- Compact Size: Lightweight and compact design ensures easy integration into various applications
- Versatile Applications: Suitable for ultrasonic ranging and automotive reverse collision detection systems
-
ISSR 48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance – Waterproof Design
ISU48-15.5TRAJ
ISSR 48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance - Waterproof Design
Features:
48kHz transceiver integrated low-frequency ultrasonic ranging and reversing collision avoidance sensor core transducer
- Integrated Design: Transmitter and receiver in one unit
- High Sensitivity: Capable of detecting obstacles with a strong signal-to-noise ratio
- Wide Frequency Band: Operates efficiently at 48kHz
- Robust Construction: Waterproof and durable for various environments
- Lightweight and Compact: Easy to integrate into vehicles without added bulk
-
ISSR 55.5kHz Waterproof Ultrasonic Transducer for Automotive Reversing Radar Systems
ISU55.5-15.5TRAJ
ISSR 55.5kHz Waterproof Ultrasonic Transducer for Automotive Reversing Radar Systems
Features:
55.5kHz Transceiver Integrated Waterproof Low-Frequency Ultrasonic Sensor for Reversing Radar Ranging Probe Transducer
- Waterproof Design: Completely sealed for durability in all weather conditions
- Integrated Transceiver: Combines transmitter and receiver in one unit for efficient operation
- High Sensitivity and Wide Bandwidth: Optimized for precise measurements, reducing false readings
- Good Signal-to-Noise Ratio: Ensures clear and reliable performance even in noisy environments
- Lightweight and Compact: Designed for easy installation in automotive applications
-
ISSR 3.2kHz External DC Voltage Driven Active Piezoelectric Buzzer
ISU-3.2D50-T3
ISSR 3.2kHz External DC Voltage Driven Active Piezoelectric Buzzer
Features:
ISSR 3.2kHz 90dB External DC voltage driven active piezoelectric buzzer
- Central Frequency: 3.2 ± 0.3 kHz for optimal sound quality
- Sound Pressure Level: 90-105 dB measured at 30cm distance
- Wide Operating Temperature: Functional in a range of -30°C to 80°C
- Storage Temperature: Safe for storage from -40°C to 85°C
- Rated Voltage: 24V with a steady output of 13.5V.
Operating Voltage Range: 9-16V suitable for various applications - Low Power Consumption: Operating current ≤30 mA at DC12V
-
ISSR 200kHz Ultrasonic Transducer Probe for Distance Measurement and Edge Correction
ISU200-18.6TRBJ
ISSR 200kHz Ultrasonic Transducer Probe for Distance Measurement and Edge Correction
Features:
High-frequency 200kHz high-sensitivity ultrasonic ranging and correction winding diameter control sensor core transducer
- High Frequency: Operates at a center frequency of 200 kHz, ideal for precise distance measurements
- Integrated Design: A compact, single-unit design simplifies installation and usage in various applications
- Waterproof and Sealed: Designed to withstand harsh industrial environments and ensure long-lasting performance
- High Sensitivity: Offers exceptional sensitivity and signal-to-noise ratio for accurate readings in challenging conditions
- Versatile Applications: Perfect for use in distance measurement and roll material edge correction
-

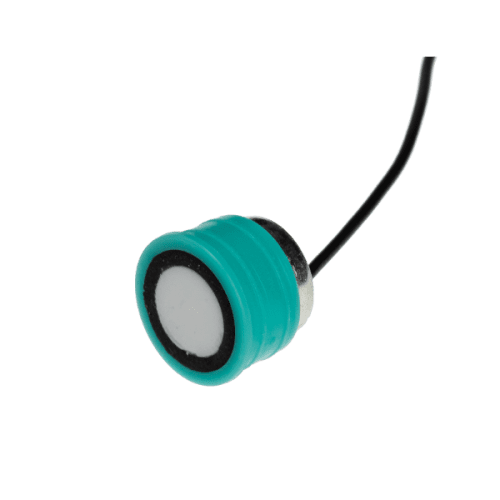

ISSR 200kHz High-Sensitivity Ultrasonic Transducer Sensor for Double Sheet & Distance Detection
ISU200-16.7TRBJ
ISSR 200kHz High-Sensitivity Ultrasonic Transducer Sensor for Double Sheet & Distance Detection
Features:
200kHz High-Frequency High-Sensitivity Ultrasonic Ranging Transducer Probe
- High-frequency, high-precision detection: With a center frequency up to 200kHz (±20kHz), short wavelength, and strong directivity, it significantly improves the detection accuracy of small objects or thin materials
- Industrial-grade waterproof and sealed design: Utilizing a robust waterproof and sealed structure, it can operate stably in a wide temperature range of -40°C to +70°C, unaffected by humidity, dust, and harsh industrial environments
- Extremely short residual oscillation dead zone: The optimized piezoelectric ceramic structure controls the residual oscillation time to ≤270μs, greatly reducing the detection dead zone and achieving high-speed response at close range
- Ultra-high sensitivity and signal-to-noise ratio: Echo sensitivity ≥800mV (measured against a Φ25mm PVC pipe at 10cm), combined with a maximum drive voltage of up to 400Vp-p, ensures a strong and stable signal
- Integrated transceiver structure: The compact Ø16.7mm package design integrates transmission and reception functions, facilitating easy installation, lightweight design, and system integration
-
ISSR Ultrasonic Web Guiding Sensor Transducer 160kHz – Rectangular Edge Detection & Correction Probe
ISU160-2818TRAJ-T1
ISSR Ultrasonic Web Guiding Sensor Transducer 160kHz - Rectangular Edge Detection & Correction Probe
Features:
High-performance Ultrasonic Web Guiding Sensor designed for precise edge detection and correction. Featuring a robust rectangular design, this 160kHz transducer is engineered to provide stable through-beam tracking for various web materials, ensuring optimal alignment in automated production lines.
- High Precision: 155±10 kHz frequency ensures accurate edge detection.
- Rugged Design: Waterproof, sealed rectangular housing built for harsh industrial use.
- Versatile: Ideal for web fabric correction, roll guiding, and ultrasonic ranging.
- Easy Integration: Compact, lightweight structure fits seamlessly into tension control systems.
- High Performance: Rapid response with ≥1.5V sensitivity and ≤700µs ringing time.
-
ISSR 400Hz DC Voltage Driven Active Piezoelectric Buzzer
ISU-0.4D60-T2
ISSR 400Hz DC Voltage Driven Active Piezoelectric Buzzer
Features:
ISSR 400Hz 88dB Industrial Active Piezo Buzzer
- Active design with built-in driver; plug-and-play DC operation.
- Wide voltage range compatible with standard industrial systems.
- Loud, penetrating sound ideal for noisy environments.
- Rugged, compact design suitable for diverse industrial sites.
-
ISSR 58kHz Ultrasonic Low-Frequency Ranging and Obstacle Avoidance Transducer
ISU58-14TRAJ-T6
ISSR 58kHz Ultrasonic Low-Frequency Ranging and Obstacle Avoidance Transducer
Features:
58kHz ultrasonic ranging, obstacle avoidance, and reversing radar probe
- Waterproof and airtight products
- Integrated transceiver
- Ultrasonic ranging and automotive reversing collision avoidance devices, etc.
- High bandwidth, high sensitivity, good signal-to-noise ratio, simple structure, reliable operation, and lightweight
-
ISSR 200kHz Ultrasonic Wind Speed Direction Detection Transducer Probe
ISU200-12TRBJ-T1
ISSR 200kHz Ultrasonic Wind Speed Direction Detection Transducer Probe
Features:
High-Frequency 200kHz Anemometer Transducer Probe
- Waterproof and Sealed Product
- Transmitter/Receiver Integration
- Wind speed and airflow detection; ultrasonic ranging, etc.
- Wide bandwidth, high sensitivity, good signal-to-noise ratio, simple structure, reliable operation, and lightweight
