Filter
Showing all 13 resultsSorted by latest
-

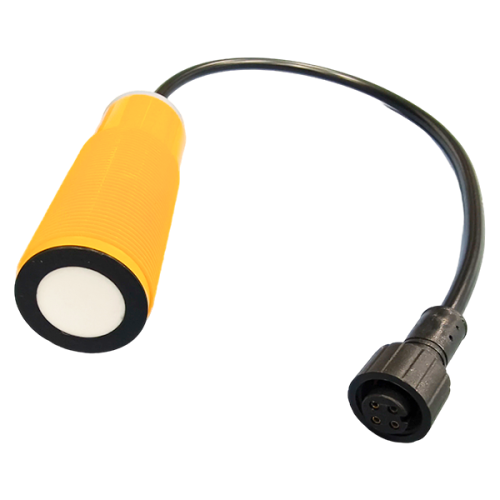

ISSR 450mm Anti-Corrosion RS232 Output Ultrasonic Level Sensor for Wet-Dry Feeders & Corrosive Tanks
ISUB450-30GK85-R2T-V1C-RN
ISSR 450mm Anti-Corrosion RS232 Output Ultrasonic Level Sensor for Wet-Dry Feeders & Corrosive Tanks
Features:
450mm Anti-Corrosion Ultrasonic Level Sensor for Wet-Dry Feeding Tanks
- Precision Measurement Range: Operates effectively within a 150mm to 450mm detection zone, specifically optimized for monitoring flat-pile granular feed and mixed slurry levels.
- High Accuracy & Resolution: Delivers a reliable resolution of 0.5mm with a 0.6% repeatability rate, ensuring real-time and precise level tracking via a standard RS232 digital interface.
- Built-in Temperature Compensation: Automatically adjusts to environmental changes, guaranteeing stable performance in fluctuating agricultural environments from -20℃ to 70℃.
- Rugged, Anti-Corrosion Design: Housed in a durable IP65-rated enclosure that protects the transducer against dust, moisture, and highly corrosive gases common in livestock feeding equipment.
- Advanced Electrical Protection: Operates safely on a 12~30VDC power supply, featuring integrated reverse polarity and overvoltage protection to prevent equipment damage during installation or power surges.
-
ISSR 1M 58khz Ultrasonic Distance Sensor for Robotics and Smart Bins
ISUBE1000-F64-TTL5-VC-58
ISSR 1M 58khz Ultrasonic Distance Sensor for Robotics and Smart Bins
Features:
Ultrasonic obstacle avoidance and ranging sensors are used for obstacle avoidance in robots and overflow detection in smart trash cans
- Ultra-Small Blind Zone (4cm): Detect objects right up to the sensor face. Perfect for monitoring bins until they are 100% full.
- 75° Wide Beam Angle: Stable detection of irregular objects (like trash bags) and peripheral obstacles for robots.
- Low Power Consumption: Optimized for battery-powered IoT devices (NB-IoT/LoRaWAN modules).
- IP65 Protection: Resistant to moisture, dust, and rain splashes in outdoor environments.
- Easy Integration: Standard TTL serial output (auto-mode) for fast communication with MCUs.
-
ISSR 4M All-in-One Ultrasonic Level Distance Sensor Switch/Analog/Digital Output
ISUB4000-30GM85
ISSR 4M All-in-One Ultrasonic Level Distance Sensor Switch/Analog/Digital Output
Features:
4 meters fully integrated ultrasonic material ranging liquid level distance sensor
- All-in-One Universal Hardware Architecture:A single sensor hardware unit supports multiple output logics. By simply upgrading the firmware via a TTL serial tool, users can flexibly switch between Analog (4-20mA, 0-5V, 0-10V), Switching (NPN, PNP), and Digital outputs. This "one device, multiple uses" capability significantly reduces inventory pressure and spare parts complexity
- Smart Range Configuration & High-Precision Detection:Offering a wide physical detection range of 200mm to 4000mm, the sensor is deeply integrated with A1/A2 Teach-in functionality. This allows users to customize the start and end points of the detection window within the adjustable range of 220mm to 4000mm. This flexible "distance-on-demand" setting, combined with ±1% full-scale repeatability, effectively masks background interference and enhances control precision within the specific target zone
- Intelligent Environmental Adaptation:Features built-in temperature compensation to correct sound velocity deviations caused by temperature changes in real-time. Combined with a rugged IP67-rated housing, it effectively resists outdoor rain, humidity, and dust intrusion, ensuring long-term stability even in harsh operating conditions
- Multi-Mode Output Support:Comprehensively covers standard industrial interfaces, including current loops, voltage outputs, hysteresis mode switching outputs, and TTL232 digital interfaces. This ensures seamless integration with PLCs, microcontrollers (MCUs), Industrial PCs (IPCs), and various other host systems
- Optimized Beam Design:Utilizes a ~75kHz transducer frequency paired with a ±8° narrow beam angle. This design concentrates ultrasonic energy to effectively filter out clutter interference from surrounding objects, focusing specifically on the precise positioning of the target object or liquid level
-
ISSR 3M All-in-One Ultrasonic Level Sensor | Analog/Switching/Digital
ISUB3000-30GM85
ISSR 3M All-in-One Ultrasonic Level Sensor | Analog/Switching/Digital
Features:
3M fully integrated ultrasonic material ranging liquid level distance sensor
- Multi-Mode Output Flexibility: One hardware unit supports multiple output configurations including Analog (4-20mA, 0-5V, 0-10V), Switching (NPN/PNP), and Digital (TTL) via simple firmware updates through the serial port
- Precision Measurement: Offers a sensing range of 180mm to 3000mm with A1/A2 point learning for customizable detection windows. Features 1mm resolution and high linearity (±1% F.S.), ensuring accurate level and distance detection
- Advanced Stability: Built-in temperature compensation and a 112kHz transducer frequency minimize environmental interference and temperature drift (±2% F.S.)
- Industrial Ruggedness: IP67 protection rating with a robust M12 connector design, capable of operating in harsh temperatures from -25°C to 70°C
-
ISSR Full-Integrated 2M Ultrasonic Liquid Level Sensor
ISUB2000-30GM85
ISSR Full-Integrated 2M Ultrasonic Liquid Level Sensor
Features:
2-meter adjustable analog-digital switch fully integrated ultrasonic material ranging and liquid level distance sensor
- Universal Programmable Output: A single hardware unit supports multiple output modes (4-20mA, 0-5V, 0-10V, NPN, PNP, TTL) via simple serial firmware updates, significantly reducing inventory complexity
- High-Precision Measurement: Features a 180kHz high-frequency transducer for stable detection with a resolution of 0.5mm and accuracy of ±1% F.S.
- Optimized for Short-Range: 120mm to 2000mm detection range with a minimized blind zone (120mm), ideal for compact tanks and machinery
- Smart Synchronization: Supports synchronization for up to 5 sensors to prevent cross-talk interference in multi-sensor arrays
- Industrial Ruggedness: IP67 rated protection with built-in temperature compensation (-25°C to 70°C) ensures reliable performance in harsh environments
- Easy Commissioning: Integrated "Teach-in" function for quick setup of switching limits and sensing windows
-
ISSR All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output
ISUB500-30GM85
ISSR All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output
Features:
500mm 180kHz Fully Integrated Ultrasonic Ranging Sensor
- Multi-Mode Output Versatility: A single hardware unit supports NPN, PNP, 4-20mA, 0-5V, 0-10V, and TTL232 outputs. Output modes can be switched simply by updating the firmware via the serial port, reducing inventory complexity.
- High-Precision Short-Range Detection: Offers a precise 50mm to 500mm detection range with a small 50mm blind zone and 0.5mm resolution, ideal for confined industrial spaces.
- Robust Industrial Design: Features an IP67 protection rating and a wide operating temperature range (-25°C to 70°C) with built-in temperature compensation for reliable performance in harsh environments.
- Interference Immunity: Supports synchronization for up to 5 units to prevent cross-talk in close-proximity installations.
- Smart Signal Processing: Operates at ~180kHz frequency with a narrow beam angle (±5°), ensuring stable detection of small or moving objects.
-
ISSR All-in-One Ultrasonic Sensor: 1m Range Level & Object Detect
ISUB1000-18GM75
ISSR All-in-One Ultrasonic Sensor: 1m Range Level & Object Detect
Features:
1 M 200kHz Fully Integrated Ultrasonic Ranging Sensor
- 3-in-1 Output Versatility: Supports Switching (NPN/PNP), Digital, and Analog (Current/Voltage) outputs, switchable via firmware update (Serial Tool)
- High-Frequency Precision: 200kHz operating frequency ensures stable detection of varied targets
- Extended Sensing Range: Reliable detection range up to 1000 mm (1 meter) with a small blind zone
- Material Independence: Flawlessly detects transparent glass, plastic, dark objects, and liquids regardless of color or texture
- Robust Industrial Design: Fully integrated M18 housing built for harsh environments
- Dual-Purpose Application: Optimized for both Object Presence Detection and Continuous Level Measurement
-
1M 58kHz Ultrasonic AGV Obstacle Avoidance Sensor
ISUB1000-17GKW29
1M 58kHz Ultrasonic AGV Obstacle Avoidance Sensor
Features:
1m 58kHz Ultrasonic AGV Obstacle Avoidance Sensor (Dual-Angle)
- Dual-Angle Detection: Wide-beam design covers a broader area with a low 150mm blind zone.
- Superior Detection: Unaffected by ambient light or object color; reliably detects transparent objects (glass) and black surfaces.
- Stable Ranging: Integrated temperature compensation ensures accurate data in changing environments.
- Easy Maintenance: Supports convenient firmware upgrades via serial port connection.
- AGV Optimized: Engineered for mobile robots with fast response times and strong anti-interference.
-
ISSR 1M 200kHz Square Adjustable Detection Direction Ultrasonic Distance Sensor with Synchronization Function
ISUB1000-F40
ISSR 1M 200kHz Square Adjustable Detection Direction Ultrasonic Distance Sensor with Synchronization Function
Features:
1m Ultrasonic Sensor (F40) with Rotatable Beam Alignment & Synchronization
- Material Independent: Reliable 1m detection of transparent films, black objects, and liquids, unaffected by color or light.
- Beam Optimization: The axially rotatable head allows alignment of the asymmetric sound cone (X/Y axis) to fit the conveyor width or target geometry.
- Interference-Free: Built-in synchronization function prevents signal crosstalk when multiple sensors operate close together.
- Environmental Stability: Integrated temperature compensation (-25°C to +70°C) ensures accuracy despite weather changes.
- Minimized Blind Zone: Small blind zone design enhances detection capability for close-range objects.
- Future-Proof: Supports serial port firmware upgrades for convenient function updates and customization.
-
ISSR 1M 200kHz Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor
ISUB1000-18GM75A-VC
ISSR 1M 200kHz Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor
Features:
1 m 200 kHz Right-Angle IP67 Protective Ultrasonic Sensor for Industrial Automation
- Versatile Signal Output: Fully integrated Switching, Analog (4–20 mA), and Digital outputs for broad system compatibility.
- Intelligent Configuration: Supports A1/A2 dual-point learning for flexible and precise detection range setting.
- High-Precision Sensing: Engineered with a minimal 60 mm blind zone to ensure accurate near-field detection.
- Future-Proof Design: Supports convenient firmware upgrades via serial port for easy maintenance and updates.
-
ISSR 500mm High Precision Short Range Ultrasonic Distance Sensor｜200kHz
ISUB500-18GM40
ISSR 500mm High Precision Short Range Ultrasonic Distance Sensor｜200kHz
Features:
0.5m 200kHz High-Precision Ultrasonic Distance Sensor for Roll Diameter Control
- Range: 0.5 m
- Compact short-form design
- Multiple output options
- Built-in temperature compensation
- Minimal blind zone
- Firmware upgradable via serial port
-
ISSR 0.15M 400kHz Ultra-high Precision Short-Form Ultrasonic Distance Sensor
ISUB150-18GM40
ISSR 0.15M 400kHz Ultra-high Precision Short-Form Ultrasonic Distance Sensor
Features:
0.15m 400kHz Ultra-High Precision Ultrasonic Level & Bulk Material Detection Sensor
- Range: 0.15 m
- Compact (short-form) design
- Multiple output options
- Temperature compensation
- Minimal blind zone
- Firmware upgradable via serial interface
-
ISSR 6M Ultrasonic Level Sensor|Multi-Output Analog/Switching/Digital
ISUB6000-30GM85
ISSR 6M Ultrasonic Level Sensor|Multi-Output Analog/Switching/Digital
Features:
6-meter adjustable ultrasonic liquid level and material distance sensor
- Universal Integration: One sensor supports multiple output modes (4-20mA, 0-10V, NPN, PNP, RS232), switchable via firmware update to reduce inventory costs
- Extended & Adjustable Range: Detects from 350mm up to 6000mm, with A1/A2 point teaching capabilities that allow users to map the analog output or switching points exactly to the tank's required depth
- High Stability: Built-in temperature compensation and advanced algorithms ensure ±1% linearity and stability in fluctuating environments (-25°C to 70°C)
- Rugged Industrial Design: IP67 rated M30 housing with a 300ms response time, capable of withstanding harsh factory conditions
- Precise Customization: Features A1/A2 learning logic via serial port tools, enabling engineers to easily define the sensing window, adjust blind zones, and configure hysteresis for stable level detection
