Filter
Showing all 15 resultsSorted by latest
-

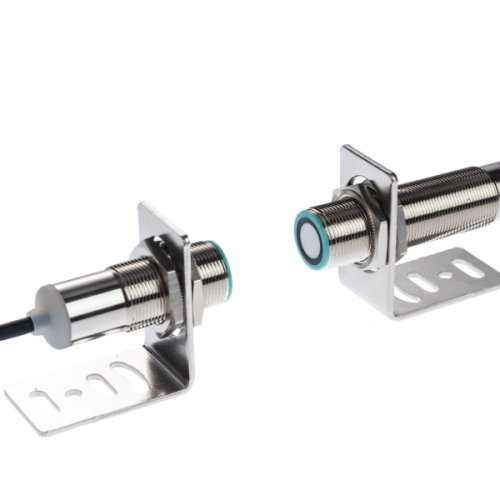

ISSR Ultrasonic Double Sheet Sensor | Multi-Material Detection for Automation
ISUDB60-18GM75
ISSR Ultrasonic Double Sheet Sensor | Multi-Material Detection for Automation
Features:
ISSR 200kHz Ultrasonic Single/Double Detection Sensor for Metal/Paper/Plastic Separation
- Universal Material Compatibility: Expertly detects Paper (70-300g), Plastic, Metal Foils (down to 0.05mm), and Transparent Films without recalibration for color or brightness changes
- Intelligent Teach-in Calibration: Features a user-friendly learning mode via remote cable (Teach-in) to adapt to specific material thicknesses (e.g., Silicon wafers, Glass), ensuring <1% false alarm rates
- Robust Industrial Design: Housed in a nickel-plated brass M18 shell with IP67 protection, offering immunity to dust, oil, and electromagnetic interference (EMC compliant GB/T17626)
- High-Speed Response: Delivers rapid detection with ~17ms response time for single sheets, enabling high-throughput processing in printing and packaging lines
- Versatile Output Logic: Available in multiple configurations (NPN/PNP, NO/NC) to seamlessly integrate with existing PLC systems for Missing, Single, and Double sheet status indication
- Smart Visualization: Equipped with a tri-color LED status indicator (Green/Single, Red/Double, Yellow/Air) for immediate visual diagnostics and troubleshooting
-

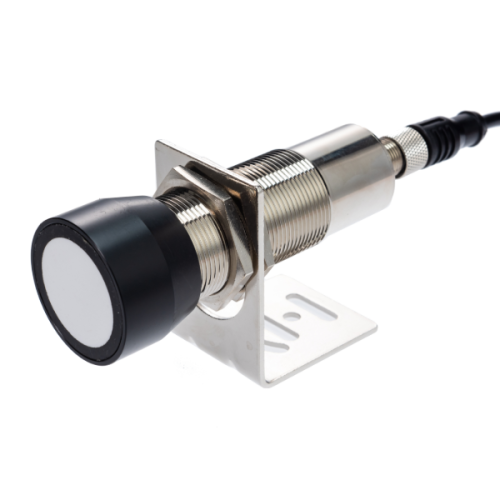

ISSR 4M All-in-One Ultrasonic Level Distance Sensor Switch/Analog/Digital Output
ISUB4000-30GM85
ISSR 4M All-in-One Ultrasonic Level Distance Sensor Switch/Analog/Digital Output
Features:
4 meters fully integrated ultrasonic material ranging liquid level distance sensor
- All-in-One Universal Hardware Architecture:A single sensor hardware unit supports multiple output logics. By simply upgrading the firmware via a TTL serial tool, users can flexibly switch between Analog (4-20mA, 0-5V, 0-10V), Switching (NPN, PNP), and Digital outputs. This "one device, multiple uses" capability significantly reduces inventory pressure and spare parts complexity
- Smart Range Configuration & High-Precision Detection:Offering a wide physical detection range of 200mm to 4000mm, the sensor is deeply integrated with A1/A2 Teach-in functionality. This allows users to customize the start and end points of the detection window within the adjustable range of 220mm to 4000mm. This flexible "distance-on-demand" setting, combined with ±1% full-scale repeatability, effectively masks background interference and enhances control precision within the specific target zone
- Intelligent Environmental Adaptation:Features built-in temperature compensation to correct sound velocity deviations caused by temperature changes in real-time. Combined with a rugged IP67-rated housing, it effectively resists outdoor rain, humidity, and dust intrusion, ensuring long-term stability even in harsh operating conditions
- Multi-Mode Output Support:Comprehensively covers standard industrial interfaces, including current loops, voltage outputs, hysteresis mode switching outputs, and TTL232 digital interfaces. This ensures seamless integration with PLCs, microcontrollers (MCUs), Industrial PCs (IPCs), and various other host systems
- Optimized Beam Design:Utilizes a ~75kHz transducer frequency paired with a ±8° narrow beam angle. This design concentrates ultrasonic energy to effectively filter out clutter interference from surrounding objects, focusing specifically on the precise positioning of the target object or liquid level
-

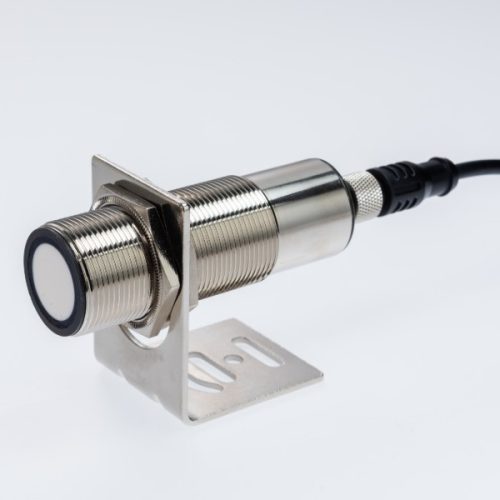

ISSR 3M All-in-One Ultrasonic Level Sensor | Analog/Switching/Digital
ISUB3000-30GM85
ISSR 3M All-in-One Ultrasonic Level Sensor | Analog/Switching/Digital
Features:
3M fully integrated ultrasonic material ranging liquid level distance sensor
- Multi-Mode Output Flexibility: One hardware unit supports multiple output configurations including Analog (4-20mA, 0-5V, 0-10V), Switching (NPN/PNP), and Digital (TTL) via simple firmware updates through the serial port
- Precision Measurement: Offers a sensing range of 180mm to 3000mm with A1/A2 point learning for customizable detection windows. Features 1mm resolution and high linearity (±1% F.S.), ensuring accurate level and distance detection
- Advanced Stability: Built-in temperature compensation and a 112kHz transducer frequency minimize environmental interference and temperature drift (±2% F.S.)
- Industrial Ruggedness: IP67 protection rating with a robust M12 connector design, capable of operating in harsh temperatures from -25°C to 70°C
-

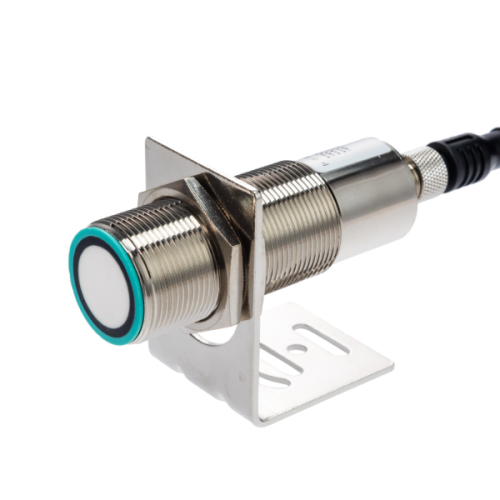

ISSR Full-Integrated 2M Ultrasonic Liquid Level Sensor
ISUB2000-30GM85
ISSR Full-Integrated 2M Ultrasonic Liquid Level Sensor
Features:
2-meter adjustable analog-digital switch fully integrated ultrasonic material ranging and liquid level distance sensor
- Universal Programmable Output: A single hardware unit supports multiple output modes (4-20mA, 0-5V, 0-10V, NPN, PNP, TTL) via simple serial firmware updates, significantly reducing inventory complexity
- High-Precision Measurement: Features a 180kHz high-frequency transducer for stable detection with a resolution of 0.5mm and accuracy of ±1% F.S.
- Optimized for Short-Range: 120mm to 2000mm detection range with a minimized blind zone (120mm), ideal for compact tanks and machinery
- Smart Synchronization: Supports synchronization for up to 5 sensors to prevent cross-talk interference in multi-sensor arrays
- Industrial Ruggedness: IP67 rated protection with built-in temperature compensation (-25°C to 70°C) ensures reliable performance in harsh environments
- Easy Commissioning: Integrated "Teach-in" function for quick setup of switching limits and sensing windows
-
ISSR All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output
ISUB500-30GM85
ISSR All-in-One 500MM Ultrasonic Sensor: Switch, Analog & Data Output
Features:
500mm 180kHz Fully Integrated Ultrasonic Ranging Sensor
- Multi-Mode Output Versatility: A single hardware unit supports NPN, PNP, 4-20mA, 0-5V, 0-10V, and TTL232 outputs. Output modes can be switched simply by updating the firmware via the serial port, reducing inventory complexity.
- High-Precision Short-Range Detection: Offers a precise 50mm to 500mm detection range with a small 50mm blind zone and 0.5mm resolution, ideal for confined industrial spaces.
- Robust Industrial Design: Features an IP67 protection rating and a wide operating temperature range (-25°C to 70°C) with built-in temperature compensation for reliable performance in harsh environments.
- Interference Immunity: Supports synchronization for up to 5 units to prevent cross-talk in close-proximity installations.
- Smart Signal Processing: Operates at ~180kHz frequency with a narrow beam angle (±5°), ensuring stable detection of small or moving objects.
-

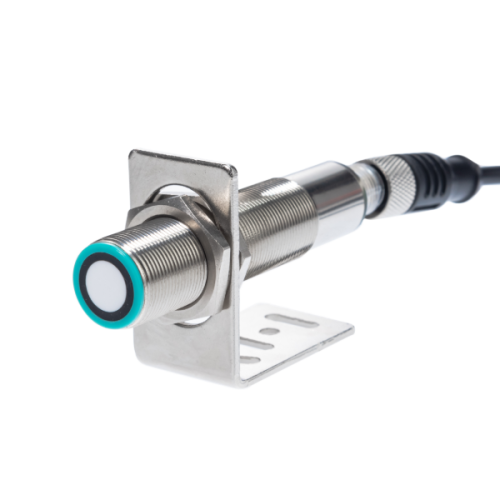

ISSR All-in-One Ultrasonic Sensor: 1m Range Level & Object Detect
ISUB1000-18GM75
ISSR All-in-One Ultrasonic Sensor: 1m Range Level & Object Detect
Features:
1 M 200kHz Fully Integrated Ultrasonic Ranging Sensor
- 3-in-1 Output Versatility: Supports Switching (NPN/PNP), Digital, and Analog (Current/Voltage) outputs, switchable via firmware update (Serial Tool)
- High-Frequency Precision: 200kHz operating frequency ensures stable detection of varied targets
- Extended Sensing Range: Reliable detection range up to 1000 mm (1 meter) with a small blind zone
- Material Independence: Flawlessly detects transparent glass, plastic, dark objects, and liquids regardless of color or texture
- Robust Industrial Design: Fully integrated M18 housing built for harsh environments
- Dual-Purpose Application: Optimized for both Object Presence Detection and Continuous Level Measurement
-
ISUB1000-17GKW29: 1M 58kHz Ultrasonic AGV Obstacle Avoidance Sensor
ISUB1000-17GKW29
ISUB1000-17GKW29: 1M 58kHz Ultrasonic AGV Obstacle Avoidance Sensor
Features:
1m 58kHz Ultrasonic AGV Obstacle Avoidance Sensor (Dual-Angle)
- Dual-Angle Detection: Wide-beam design covers a broader area with a low 150mm blind zone.
- Superior Detection: Unaffected by ambient light or object color; reliably detects transparent objects (glass) and black surfaces.
- Stable Ranging: Integrated temperature compensation ensures accurate data in changing environments.
- Easy Maintenance: Supports convenient firmware upgrades via serial port connection.
- AGV Optimized: Engineered for mobile robots with fast response times and strong anti-interference.
-
ISSR 300kHz Ultrasonic Material Testing Sensor for Robotic Vacuum Cleaners
ISUB30-16GK12
ISSR 300kHz Ultrasonic Material Testing Sensor for Robotic Vacuum Cleaners
Features:
The ISUB30-16GK12 is designed for seamless integration and delivers powerful performance in a variety of home environments:
- Precise Material Recognition: Reliably distinguishes between hardwood floors, tile, and various carpet piles.
- High Frequency: Operating at approximately 300 kHz, it offers higher resolution compared to standard low-frequency sensors.
- Environmental Adaptability: Unlike optical sensors, this ultrasonic solution is unaffected by floor color, transparency, or ambient brightness. It works perfectly even in darkness.
- Easy Integration: Utilizing a standard TTL232 interface and compact VC connectors (1.25 mm pitch), it allows for quick installation.
- Durable Design: With an IP65 protection rating, it withstands the dust and moisture commonly encountered in vacuuming operations.
-
ISSR 1M 200kHz Square Adjustable Detection Direction Ultrasonic Distance Sensor with Synchronization Function
ISUB1000-F40
ISSR 1M 200kHz Square Adjustable Detection Direction Ultrasonic Distance Sensor with Synchronization Function
Features:
1m Rotatable Ultrasonic Distance Sensor with Synchronization & Adjustable Head
- Precise Detection: Reliable measuring range up to 1 meter for distance and level tasks.
- Interference-Free: Built-in synchronization function prevents crosstalk in multi-sensor setups.
- Flexible Installation: The detection head can be rotated to adapt to different mounting directions.
- Environmental Adaptability: Built-in temperature compensation ensures stability in changing conditions.
- High Performance: Small blind zone effectively enhances close-range object detection capability.
- Easy Maintenance: Supports serial port firmware upgrades for convenient function updates.
-
ISSR 1M 200kHz Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor
ISUB1000-18GM75A-VC
ISSR 1M 200kHz Right Angle 90-Degree Bend Fully Integrated Ultrasonic Distance Sensor
Features:
1 m 200 kHz Right-Angle IP67 Protective Ultrasonic Sensor for Industrial Automation
- Versatile Signal Output: Fully integrated Switching, Analog (4–20 mA), and Digital outputs for broad system compatibility.
- Intelligent Configuration: Supports A1/A2 dual-point learning for flexible and precise detection range setting.
- High-Precision Sensing: Engineered with a minimal 60 mm blind zone to ensure accurate near-field detection.
- Future-Proof Design: Supports convenient firmware upgrades via serial port for easy maintenance and updates.
-
ISSR 500mm High Precision Short Range Ultrasonic Distance Sensor｜200kHz
ISUB500-18GM40
ISSR 500mm High Precision Short Range Ultrasonic Distance Sensor｜200kHz
Features:
0.5m 200kHz High-Precision Ultrasonic Distance Sensor for Roll Diameter Control
- Range: 0.5 m
- Compact short-form design
- Multiple output options
- Built-in temperature compensation
- Minimal blind zone
- Firmware upgradable via serial port
-
ISSR 0.15M 400kHz Ultra-high Precision Short-Form Ultrasonic Distance Sensor
ISUB150-18GM40
ISSR 0.15M 400kHz Ultra-high Precision Short-Form Ultrasonic Distance Sensor
Features:
0.15m 400kHz Ultra-High Precision Ultrasonic Level & Bulk Material Detection Sensor
- Range: 0.15 m
- Compact (short-form) design
- Multiple output options
- Temperature compensation
- Minimal blind zone
- Firmware upgradable via serial interface
-
ISSR F77 Ultrasonic Proximity Switch
ISUB250-F77K12
ISSR F77 Ultrasonic Proximity Switch
Features:
0.25-Meter F77 Ultrasonic Contactless Limit Switch for Object Presence Detection
- NPN/PNP normally open output
- Miniature Design
- Learnable A1 Point
- Small Dead Zone
- Serial Port Upgradeable
-
ISSR M12 Ultrasonic Double Sheet Detection Sensor
ISUDB40-12GM75
ISSR M12 Ultrasonic Double Sheet Detection Sensor
Features:
ISSR 300kHz High-Precision Ultrasonic Dual-Sheet Detection Sensor for Metal-Paper Separation
- NPN/PNP, normally closed/normally open, multiple output modes
- For detecting blank, single sheet, and overlapping materials
- Non-contact detection, capable of measuring various materials
- Insensitive to the color and brightness of the measured object
- Measurement object can be calibrated
- Serial port is upgradeable
-

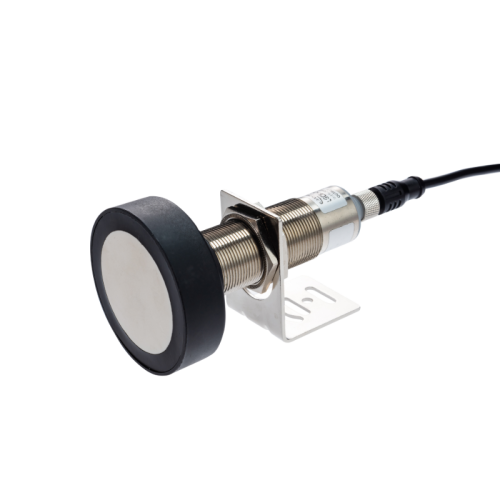

ISSR 6M Ultrasonic Level Sensor|Multi-Output Analog/Switching/Digital
ISUB6000-30GM85
ISSR 6M Ultrasonic Level Sensor|Multi-Output Analog/Switching/Digital
Features:
6-meter adjustable ultrasonic liquid level and material distance sensor
- Universal Integration: One sensor supports multiple output modes (4-20mA, 0-10V, NPN, PNP, RS232), switchable via firmware update to reduce inventory costs
- Extended & Adjustable Range: Detects from 350mm up to 6000mm, with A1/A2 point teaching capabilities that allow users to map the analog output or switching points exactly to the tank's required depth
- High Stability: Built-in temperature compensation and advanced algorithms ensure ±1% linearity and stability in fluctuating environments (-25°C to 70°C)
- Rugged Industrial Design: IP67 rated M30 housing with a 300ms response time, capable of withstanding harsh factory conditions
- Precise Customization: Features A1/A2 learning logic via serial port tools, enabling engineers to easily define the sensing window, adjust blind zones, and configure hysteresis for stable level detection
